MIDI4MiSTer
About the MIDI4MiSTer PCB
MIDI4MiSTer is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 44 × 44.8 mm, with 27 components from 17 distinct parts.
Other key parts include the 74HC14, AMS1117 and 6N138. By type, the board carries 12 resistors, 4 diodes, 4 capacitors, 3 ICs and 3 connectors.
It belongs with the audio and keyboards designs in this gallery.
From the project

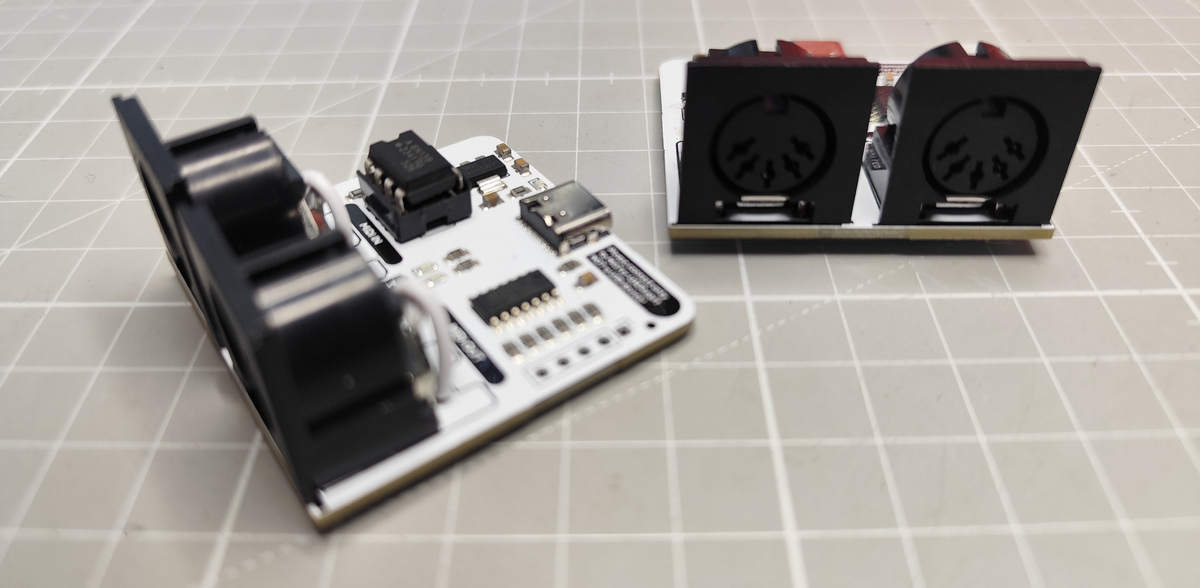

MiSTer user port MIDI output and input PCB
This repository contains the KiCAD project files for a custom MIDI Interface Board, designed to connect to the User IO port of the MiSTer FPGA. It enables MIDI input and output functionality for cores that support MIDI, including the Atari ST, X68000, PC, and Minimig.
- Why - Description - Schematics - Installation Guide - Repository contents - Disclaimer
The goal of this project is to provide a simple and reliable way to connect external MIDI hardware (keyboards, synthesizers, modules) to the MiSTer FPGA platform.
Main components on the MIDI4MiSTer
MIDI4MiSTer bill of materials (BOM)
27 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HC14 | SOIC-14_3.9x8.7mm_P1.27mm | U1 |
| 1 | AMS1117 | SOT-223-3_TabPin2 | U2 |
| 1 | 6N138 | DIP-8_W7.62mm_LongPads | U3 |
| 1 | MIDI IN | MIDI_DIN5 | J2 |
| 1 | MIDI OUT | MIDI_DIN5 | J3 |
| 1 | MIDI_EXTRAS | PinHeader_1x05_P2.54mm_Vertical | J4 |
| 1 | TYPE-C 16PIN 2MD(073) | USB-C-SMD_TYPE-C-6PIN-2MD-073 | USB1 |
| 1 | POWER_LED | LED_0603_1608Metric | D1 |
| 1 | 1N4148 | D_SOD-323_HandSoldering | D2 |
| 1 | MIDI_OUT_LED | LED_0603_1608Metric | D3 |
| 1 | MIDI_IN_LED | LED_0603_1608Metric | D4 |
| 2 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C4 |
| 2 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C3 |
| 9 | 220 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R4, R5, R6, R7, R8, R9, R11 +1 |
| 1 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | 2k2 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 1 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10 |
MIDI4MiSTer design files
The KiCad project lives in the KabukiFlux/MIDI4MiSTer repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/MIDI_4_MiSTer.kicad_pcb
- Schematickicad/MIDI_4_MiSTer.kicad_sch
MIDI4MiSTer: common questions
How big is the MIDI4MiSTer PCB?
The MIDI4MiSTer measures 44 × 44.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MIDI4MiSTer?
27 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the MIDI4MiSTer design files?
From the KabukiFlux/MIDI4MiSTer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MIDI4MiSTer design in my own project?
Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
