Scart-Megadrive-2-12v cable
About the Scart-Megadrive-2-12v cable PCB
Scart-Megadrive-2-12v cable is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 39.5 × 20.8 mm, with 17 components from 12 distinct parts.
Other key parts include the TPS61040DBVR. By type, the board carries 4 capacitors, 3 resistors, 2 diodes, 1 IC and 1 inductor.
It belongs with the retro computing designs in this gallery.
From the project

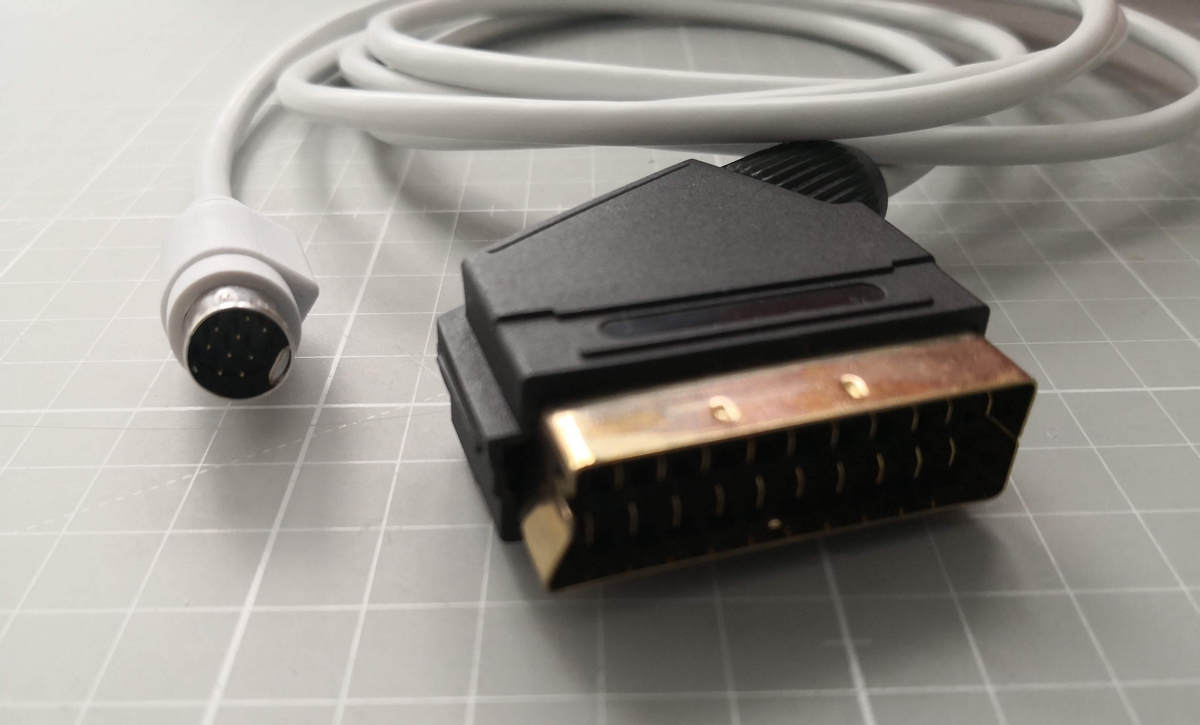

PCB form Megadrive/Genesis 2 RGB minidin to Scart adapter with 12V DCDC boost (4:3 switching)
- Why - Description - Schematics - Install - Pics and final result - Premade cables with minidin 9
When we plug a Megadrive 2 console via scart on the "newer" CRT TVs as the minidin provides 5v on the console side the tv will switch to AV with a 16:9 aspect ratio. We need to deliver between 9v to 12v on the swtiching side to output directly to AV with 4:3 aspect ratio.
Main components on the Scart-Megadrive-2-12v cable
Scart-Megadrive-2-12v cable bill of materials (BOM)
17 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS61040DBVR Texas Instruments | SOT-23-5_HandSoldering | U1 |
| 3 | T520B227M006ATE045 220uF Kemet | CP_EIA-3528-21_Kemet-B_Pad1.50x2.35mm_HandSolder | CB1, CG1, CR1 |
| 3 | 0603WAF750JT5E 75 UNI-ROYAL | R_0603_1608Metric | RB1, RG1, RR1 |
| 2 | 1N5819WS D_Schottky Guangdong Hottech | D_SOD-323_HandSoldering | D1, D2 |
| 1 | MLZ1608M100WTD25 10uH TDK | L_0603_1608Metric | L1 |
| 1 | CL05B104KO5NNNC 100nF Samsung Electro-Mechanics | C_0402_1005Metric | C1 |
| 1 | CL05A475MP5NRNC 4.7uF Samsung Electro-Mechanics | C_0402_1005Metric | C2 |
| 1 | CL05C100JB5NNNC 10pF Samsung Electro-Mechanics | C_0402_1005Metric | C3 |
| 1 | CL05A105KA5NQNC 1uF Samsung Electro-Mechanics | C_0402_1005Metric | C4 |
| 1 | RC0402FR-071M6L 1.6M YAEGO | R_0402_1005Metric | R1 |
| 1 | 0402WGF2003TCE 200K UNI-ROYAL | R_0402_1005Metric | R2 |
| 1 | 0402WGF1800TCE 180 UNI-ROYAL | R_0402_1005Metric | R3 |
Scart-Megadrive-2-12v cable design files
The KiCad project lives in the KabukiFlux/Scart-Megadrive-2-12v-cable repository on GitHub; these links point at the commit this page was built from.
Scart-Megadrive-2-12v cable: common questions
How big is the Scart-Megadrive-2-12v cable PCB?
The Scart-Megadrive-2-12v cable measures 39.5 × 20.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Scart-Megadrive-2-12v cable?
17 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Scart-Megadrive-2-12v cable design files?
From the KabukiFlux/Scart-Megadrive-2-12v-cable repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Scart-Megadrive-2-12v cable design in my own project?
Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
