About the Rotten PCB

Rotten is an open source PCB design by KamikazeVildsvin, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 56.5 × 61.6 mm, with 39 components from 27 distinct parts.

Other key parts include the AS301/OP07. By type, the board carries 13 capacitors, 13 resistors, 4 connectors, 4 diodes, 1 IC and 1 transistor.

It belongs with the audio designs in this gallery.

From the project

KiCad files for DIY Pro Co RAT

I would recommend that you use the interactive BOM above to see what connection on the PCB matches the correct pin on the footswitch, since the silkscreen is very small and probably not readable on the actual physical PCB.

NOTE: If you don't want to use the LED indicator, you can disregard the GROUND and LED connections on the footswitch and don't solder these connections to the PCB.

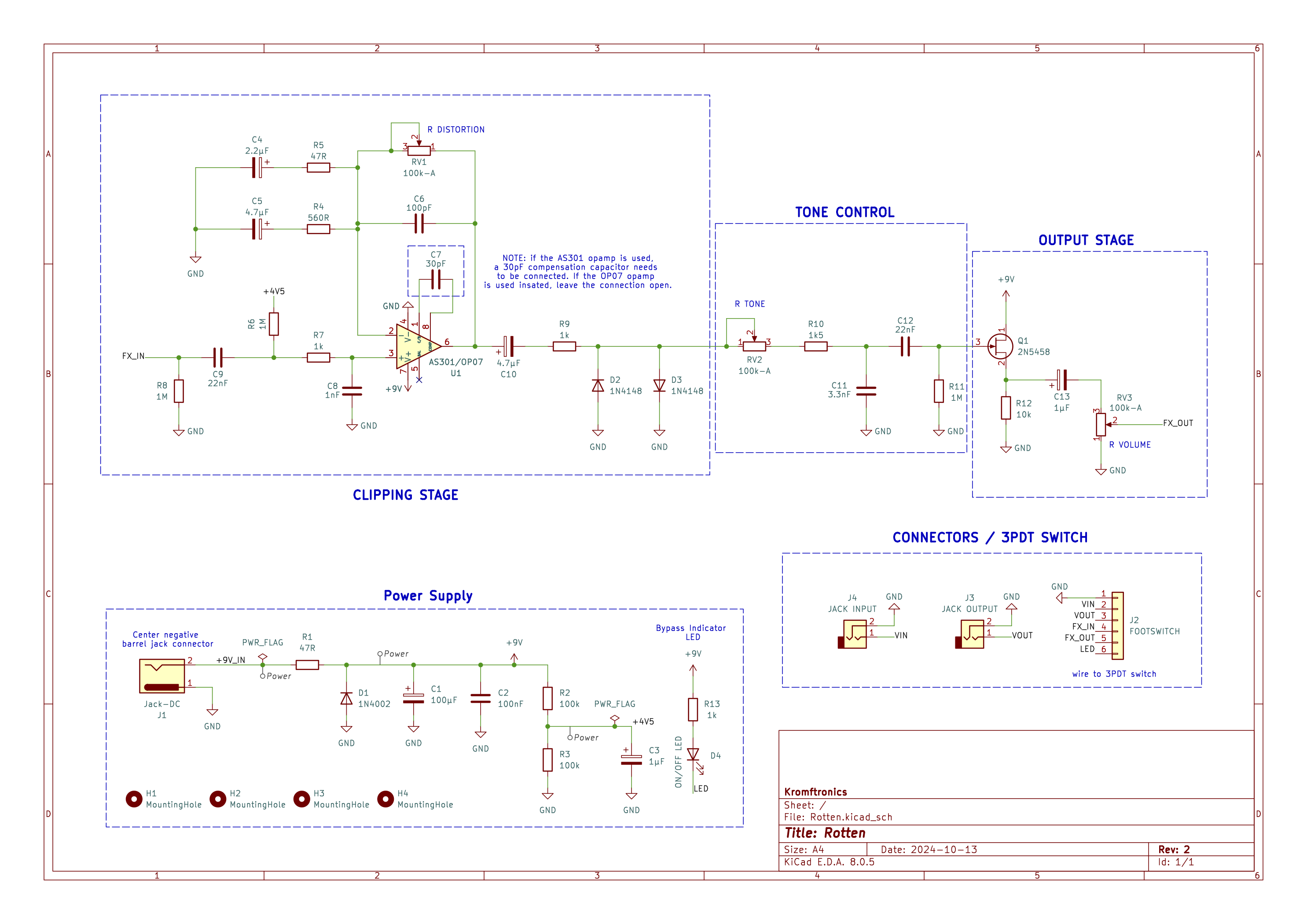

Rotten, from the project README
From the project README

Main components on the Rotten

AS301/OP07

Rotten bill of materials (BOM)

39 components, 27 distinct parts.

QtyPartRefs
1
AS301/OP07
U1
1
2N5458
Q1
1
Jack-DC
J1
1
FOOTSWITCH
J2
1
JACK OUTPUT
J3
1
JACK INPUT
J4
3
100k-A
RV1, RV2, RV3
1
1N4002
D1
2
1N4148
D2, D3
1
ON/OFF LED
D4
1
100µF
C1
1
100nF
C2
2
1µF
C3, C13
1
2.2µF
C4
2
4.7µF
C5, C10
1
100pF
C6
1
30pF
C7
1
1nF
C8
2
22nF
C9, C12
1
3.3nF
C11
Show 7 more
QtyPartRefs
2
47R
R1, R5
2
100k
R2, R3
1
560R
R4
3
1M
R6, R8, R11
3
1k
R7, R9, R13
1
1k5
R10
1
10k
R12

Rotten design files

The KiCad project lives in the KamikazeVildsvin/Rotten repository on GitHub; these links point at the commit this page was built from.

Rotten: common questions

How big is the Rotten PCB?

The Rotten measures 56.5 × 61.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rotten?

39 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rotten design files?

From the KamikazeVildsvin/Rotten repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rotten design in my own project?

Yes, under the terms of its GPL-3.0 license, which KamikazeVildsvin chose for the repository.
