10VBlocker RevB

kanengomibako·Modules·10VBlocker/10VBlocker_RevB.kicad_pcb

10VBlocker RevB PCB layout, top view — open source board by kanengomibako

About the 10VBlocker RevB PCB

10VBlocker RevB is an open source PCB design by kanengomibako, published on GitHub under the Unlicense license. It is a 2-layer board measuring 12 × 9.5 mm, with 7 components from 7 distinct parts.

Other key parts include the C5875698. By type, the board carries 3 resistors, 1 IC, 1 connector, 1 diode and 1 capacitor.

From the project

- IN → 電源入力 + - 上側中央のパッド → 電源入出力 -（グラウンド） - OUT → 電源出力 +

- IN → 電源入力 + - 上側中央のパッド → 電源入出力 -（グラウンド） - OUT → 電源出力 +

基板下側のパッドはどこにも接続されていません。マル信無線電機 DCジャック MJ-40Aに直付けする場合、電池の接続が可能です。

- 新品の電池は電圧が10V以上の場合があり、本モジュールにより電源が遮断される可能性があります。 - 電源の遮断が不十分となる場合があるため、消費電流0.1mA未満の機器には使用しないでください。

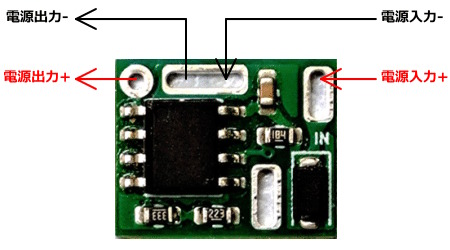

10VBlocker RevB, from the project README
From the project README

Main components on the 10VBlocker RevB

C5875698

10VBlocker RevB bill of materials (BOM)

7 components, 7 distinct parts.

QtyPartRefs
1
C5875698
MX25947ES
U101
1
OUT
J102
1
C64898
SM4007
D101
1
C14663
100n
C101
1
C25811
200k
R101
1
C31850
22k
R102
1
C4216
33k
R103

10VBlocker RevB design files

The KiCad project lives in the kanengomibako/Modules repository on GitHub; these links point at the commit this page was built from.

10VBlocker RevB: common questions

How big is the 10VBlocker RevB PCB?

The 10VBlocker RevB measures 12 × 9.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 10VBlocker RevB?

7 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the 10VBlocker RevB design files?

From the kanengomibako/Modules repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 10VBlocker RevB design in my own project?

Yes, under the terms of its Unlicense license, which kanengomibako chose for the repository.
