Antimner S9 HatBoard

Kcctech-git·Antimner_S9_HatBoard

Antimner S9 HatBoard PCB layout, top view — open source board by Kcctech-git

Simulate this board

About the Antimner S9 HatBoard PCB

Antimner S9 HatBoard is an open source PCB design by Kcctech-git, published on GitHub. It is a 2-layer board measuring 100 × 81 mm, with 60 components from 31 distinct parts.

Other key parts include the USB3315C-CP-TR, LM3525M-H, L7805 and LM1117DT-1.8. By type, the board carries 20 resistors, 15 connectors, 14 capacitors, 6 diodes, 4 ICs and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This project adds a USB 2.0 ULPI PHY and HDMI output to the Antminer S9 Zynq-7010 control board, turning surplus mining hardware into a reliable low-cost FPGA and embedded Linux development platform.

Following the global mining boom, large numbers of used Antminer S9 control boards have become widely available on secondary markets for as little as $5–30. These boards, originally built to control cryptocurrency mining equipment, are based on the well-documented Xilinx Zynq-7010 (XC7Z010) SoC and include:

- Exposed PS–PL interface pins, some of which are connected to various peripherals

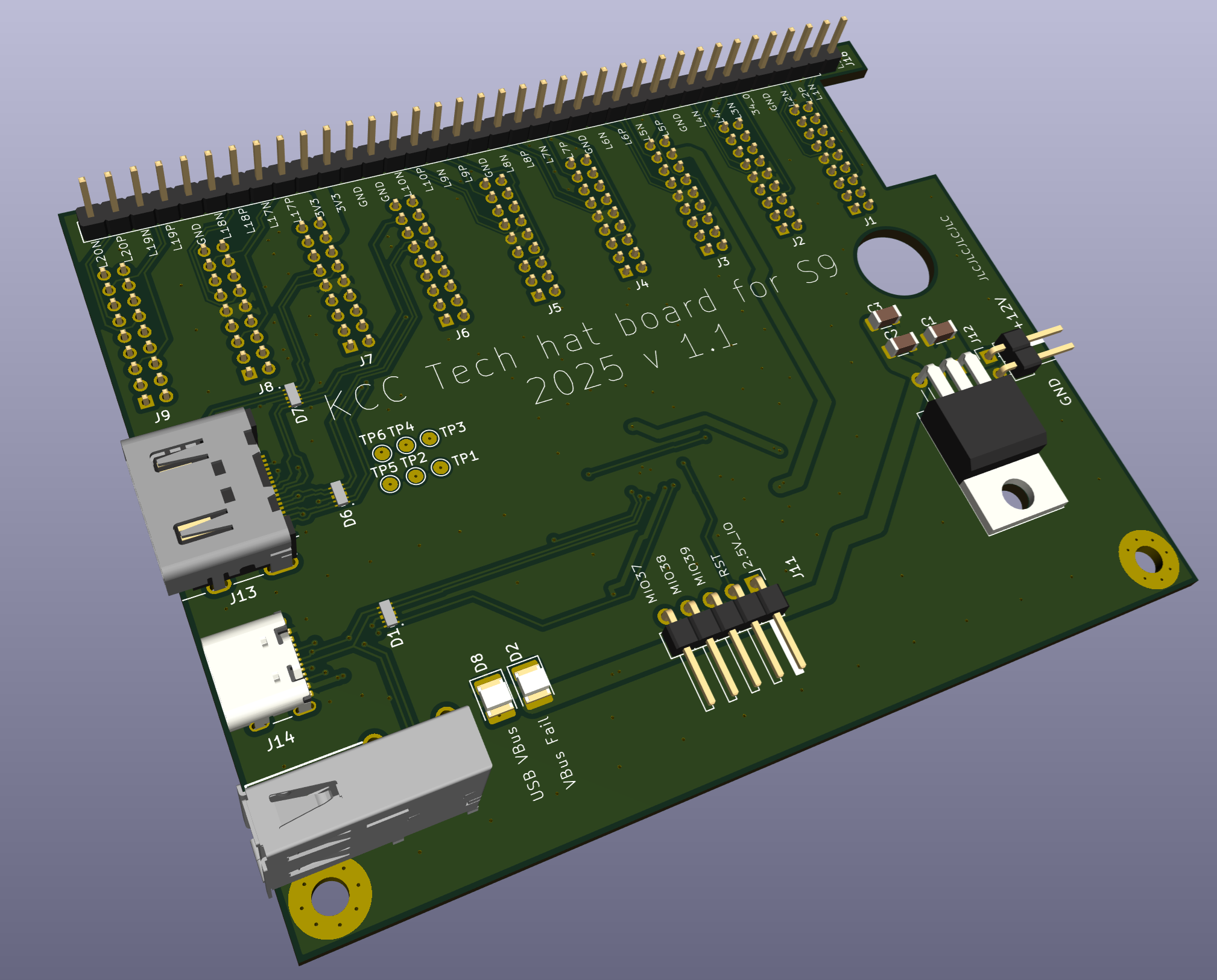

Antimner S9 HatBoard, from the project README — From the project README

Main components on the Antimner S9 HatBoard

USB3315C-CP-TR LM3525M-H L7805 LM1117DT-1.8

Antimner S9 HatBoard bill of materials (BOM)

60 components, 31 distinct parts.

Qty	Part	Footprint	Refs
1	USB3315C-CP-TR	QFN50P400X400X100-25N-D	IC1
1	LM3525M-H	SOIC127P620X175-8N	IC2
1	L7805	TO-220-3_Horizontal_TabDown	U1
1	LM1117DT-1.8	SOT-223-3_TabPin2	U2
1	24Mhz	Oscillator_SMD_Abracon_ASV-4Pin_7.0x5.1mm	Y1
9	Conn_02x09_Odd_Even	PinHeader_2x09_P2.00mm_Vertical	J1, J2, J3, J4, J5, J6, J7, J8 +1
1	Aux_mio_conn	PinHeader_1x05_P2.54mm_Horizontal	J11
1	12v Pwr	PinHeader_1x02_P2.54mm_Horizontal	J12
1	HDMI_A	HDMI_A_Molex_208658-1001_Horizontal	J13
1	USB_C_Receptacle_USB2.0_16P	USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal	J14
1	48204-0001 48204-0001 China	482040001	J15
1	PL_conn	PinHeader_1x37_P2.54mm_Vertical	J16
3	CDDFN10-0524P	CDDFN100524P	D1, D6, D7
2	LED	LED_1210_3225Metric_Pad1.42x2.65mm_HandSolder	D2, D8
1	1N5822	D_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D4
1	47uf 25v	C_1206_3216Metric	C1
1	100 uf 10v	C_1206_3216Metric	C2
1	100n	C_1206_3216Metric	C3
1	1n	C_1206_3216Metric	C4
5	0.1uf	C_0805_2012Metric	C5, C6, C13, C23, C25

Show 11 more

Qty	Part	Footprint	Refs
1	100uf	C_1210_3225Metric_Pad1.33x2.70mm_HandSolder	C7
1	1n	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C8
3	10uf	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C9, C14, C24
2	1m	R_0805_2012Metric	R1, R21
1	820	R_0805_2012Metric	R2
1	2k	R_0805_2012Metric	R3
1	4k7	R_0805_2012Metric	R4
1	8k06	R_0805_2012Metric	R5
11	30	R_0805_2012Metric	R6, R10, R11, R12, R13, R14, R15, R16 +3
1	3k2	R_0805_2012Metric	R20
2	TC164-FR-0749R9L	TC164FR0749R9L	RN1, RN2

Antimner S9 HatBoard design files

The KiCad project lives in the Kcctech-git/Antimner_S9_HatBoard repository on GitHub; these links point at the commit this page was built from.

LayoutAntminer_hat_PCB.kicad_pcb
SchematicAntminer_hat_PCB.kicad_sch

Antimner S9 HatBoard: common questions

How big is the Antimner S9 HatBoard PCB?

The Antimner S9 HatBoard measures 100 × 81 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Antimner S9 HatBoard?

60 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the Antimner S9 HatBoard design files?

From the Kcctech-git/Antimner_S9_HatBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Antimner S9 HatBoard design in my own project?

The repository has no license, so all rights stay with Kcctech-git. Use it as a reference, and ask the author before reusing the design.
