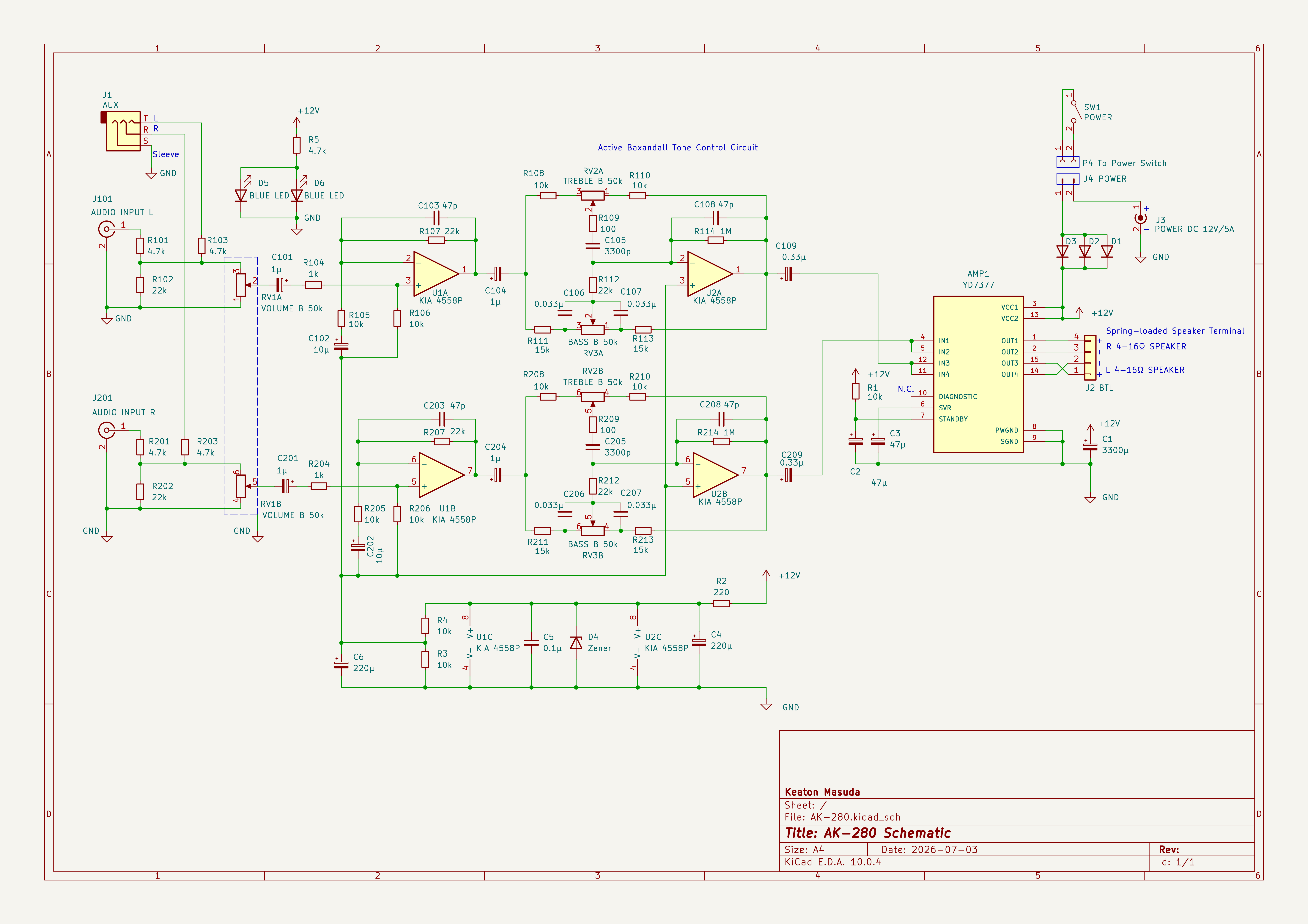

Circuit schematics for the AK-280 audio amplifier, created using KiCad.

I have reverse-engineered the AK-280 purchased on Amazon Japan and created a schematic for it.

This project documents the hardware architecture for the purpose of deepening understanding of circuit structures as a hobby.

This repository contains schematic data created by tracing the print patterns and components of the AK-280 audio amplifier. KiCad was used to create the schematics.

Main components on the Ak280-schematics

KIA 4558P

Ak280-schematics bill of materials (BOM)

77 components, 34 distinct parts.

QtyPartRefs
2
KIA 4558P
U1, U2
1
AUX
J1
1
BTL
J2
1
POWER DC 12V/5A
J3
1
POWER
J4
1
AUDIO INPUT L
J101
1
AUDIO INPUT R
J201
1
To Power Switch
P4
1
YD7377
AMP1
1
VOLUME B 50k
RV1
1
TREBLE B 50k
RV2
1
BASS B 50k
RV3
1
POWER
SW1
3
1N5400
D1, D2, D3
1
Zener
D4
2
BLUE LED
D5, D6
1
3300μ
C1
2
47μ
C2, C3
2
220μ
C4, C6
1
0.1μ
C5
Show 14 more
QtyPartRefs
4
1μ
C101, C104, C201, C204
2
10μ
C102, C202
4
47p
C103, C108, C203, C208
2
3300p
C105, C205
4
0.033μ
C106, C107, C206, C207
2
0.33μ
C109, C209
11
10k
R1, R3, R4, R105, R106, R108, R110, R205 +3
1
220
R2
5
4.7k
R5, R101, R103, R201, R203
6
22k
R102, R107, R112, R202, R207, R212
2
1k
R104, R204
2
100
R109, R209
4
15k
R111, R113, R211, R213
2
1M
R114, R214
