CARL-Air-Brake-Power-Supply-Hardware PCB layout, top view — open source AVR/Arduino board by Kenneth-Goveas

About the CARL-Air-Brake-Power-Supply-Hardware PCB

CARL-Air-Brake-Power-Supply-Hardware is an open source AVR/Arduino PCB design by Kenneth-Goveas, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 86 components from 33 distinct parts.

Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the TPS56528 and FT232RNL. By type, the board carries 27 resistors, 25 capacitors, 14 diodes, 6 test points, 5 connectors and 4 ICs.

It belongs with the power & battery designs in this gallery.

From the project

This repository contains the electronic hardware design for the power supply module of the [CARL Air Brake][cab-repo] computer. The CARL Air Brake computer automatically controls a rocket air brake in flight, so that the vehicle attains an apogee at the desired altitude. Its powe

This repository contains the electronic hardware design for the power supply module of the [CARL Air Brake][cab-repo] computer. The CARL Air Brake computer automatically controls a rocket air brake in flight, so that the vehicle attains an apogee at the desired altitude. Its power supply module distributes electrical power to all systems in the computer.

Detailed documentation for this repository can be found in the following files.

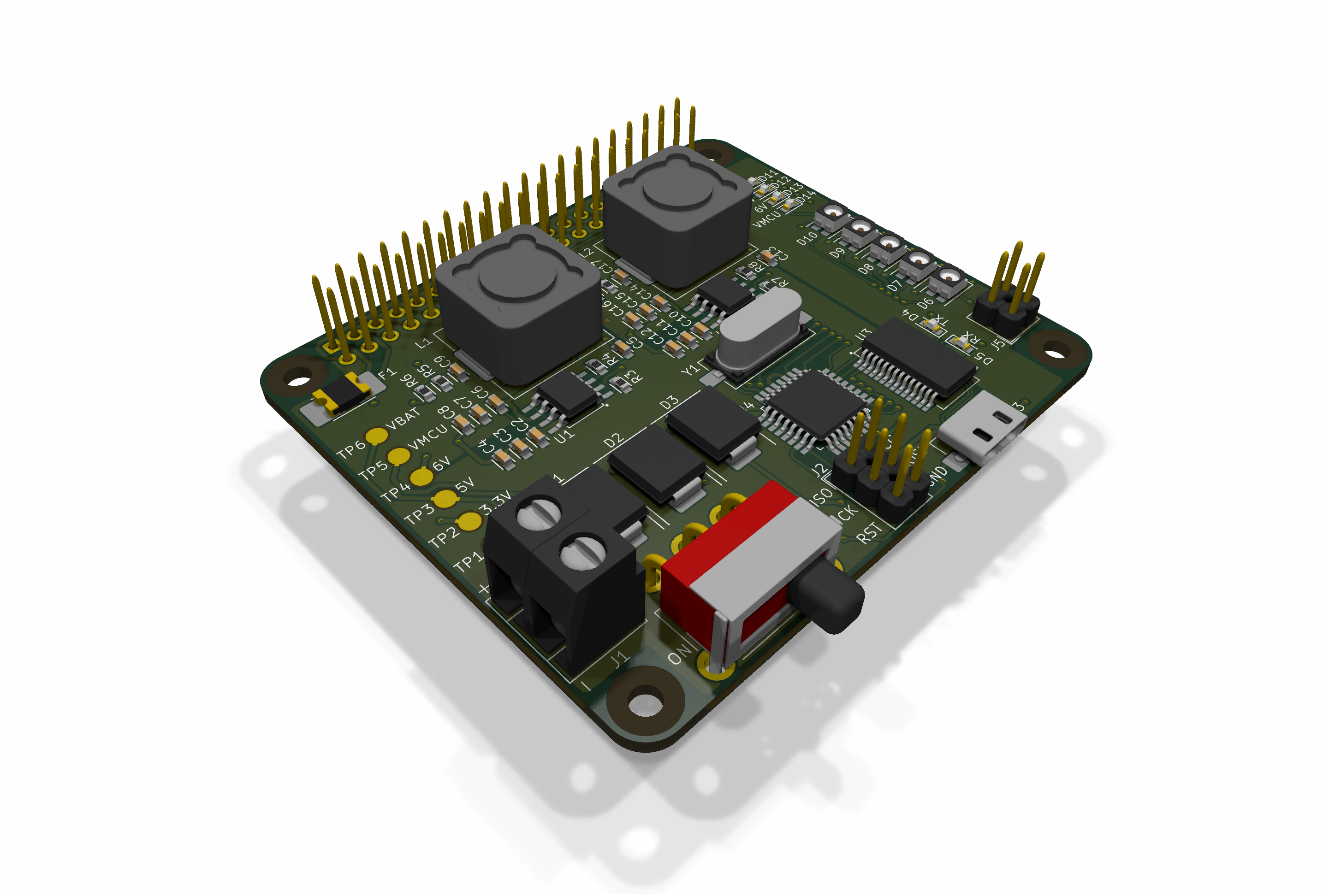

CARL-Air-Brake-Power-Supply-Hardware, from the project README
From the project README

Main components on the CARL-Air-Brake-Power-Supply-Hardware

TPS56528FT232RNLATmega328P-AU

CARL-Air-Brake-Power-Supply-Hardware bill of materials (BOM)

86 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TPS56528
TI
U1, U2
1
FT232RNL
FTDI
U3
1
ATmega328P-AU
Microchip
U4
1
16MHz
ECS
Y1
1
Battery
CUI
J1
1
ICSP
Adam Tech
J2
1
USB
Wuerth
J3
1
Raspberry Pi
Adafruit
J4
1
Servo
Wuerth
J5
1
MF-MSMF260
Bourns
F1
1
Power
Salecom
SW1
6
~
TP1, TP2, TP3, TP4, TP5, TP6
3
0.55V @ 8A
Diotec
D1, D2, D3
2
White
Ams Osram
D4, D5
5
Red/Green
Wuerth
D6, D7, D8, D9, D10
4
Amber
Wuerth
D11, D12, D13, D14
2
3.3uH
Eaton
L1, L2
8
10uF
Murata
C1, C2, C3, C10, C11, C18, C21, C22
7
0.1uF
Murata
C4, C6, C12, C14, C19, C20, C23
2
0.47uF
Murata
C5, C13
Show 13 more
QtyPartRefs
4
22uF
Murata
C7, C8, C15, C16
2
5pF
Murata
C9, C17
2
30pF
Murata
C24, C25
1
20kOhm
Yageo
R1
4
10kOhm
Yageo
R2, R3, R7, R13
2
100kOhm
Yageo
R4, R8
1
365kOhm
Yageo
R5
2
50kOhm
Yageo
R6, R10
1
453kOhm
Yageo
R9
2
430Ohm
Yageo
R11, R12
12
150Ohm
Yageo
R14, R15, R16, R17, R18, R19, R20, R21 +4
1
68Ohm
Yageo
R24
1
200Ohm
Yageo
R26

CARL-Air-Brake-Power-Supply-Hardware design files

The KiCad project lives in the Kenneth-Goveas/CARL-Air-Brake-Power-Supply-Hardware repository on GitHub; these links point at the commit this page was built from.

CARL-Air-Brake-Power-Supply-Hardware: common questions

What microcontroller does the CARL-Air-Brake-Power-Supply-Hardware use?

The CARL-Air-Brake-Power-Supply-Hardware is built around the ATmega328P-AU, from the AVR/Arduino family.

How big is the CARL-Air-Brake-Power-Supply-Hardware PCB?

The CARL-Air-Brake-Power-Supply-Hardware measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CARL-Air-Brake-Power-Supply-Hardware?

86 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CARL-Air-Brake-Power-Supply-Hardware design files?

From the Kenneth-Goveas/CARL-Air-Brake-Power-Supply-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CARL-Air-Brake-Power-Supply-Hardware design in my own project?

The repository has no license, so all rights stay with Kenneth-Goveas. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CARL-Air-Brake-Power-Supply-Hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
