About the Hate cbse PCB

Hate cbse is an open source RP2040/RP2350 PCB design by kermitsgonnakermicide, published on GitHub. It is a 4-layer board measuring 101.4 × 68 mm, with 68 components from 33 distinct parts.

Its main chip is the RP2350B, from the RP2040/RP2350 family. Other key parts include the TMC2209SILENTSTEPSTICK, NCP1117STAT3G, W25Q128JVSIQ and USBLC6-2SC6-ES. By type, the board carries 25 capacitors, 16 connectors, 14 resistors, 6 ICs, 3 diodes and 2 switches.

It belongs with the robotics & motion designs in this gallery.

From the project

a desk-sized CoreXY pen plotter with a custom RP2350 based motherboard!

for additional context, please view this youtube video ## enter, the hatecbse plotter - this is an awesome corexy plotter that has about 300x300 mm of usable space, good enough for all my sheets and stuff - its frame is built with 20x20 aluminium extrusion and is powered by NEMA17 stepper motors - while I initially thought I would skip on making a full on PCB for this project, you only hackclub once so I decided to make my own, printer motherboard-esque concotion around an RP2350B and the TMC2209 steppers(sticking with the breakout boards for that one purely because of cost) - firmware wise…

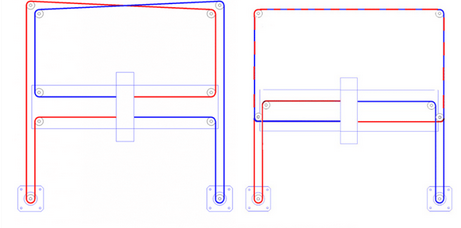

Hate cbse, from the project README — From the project README

Main components on the Hate cbse

TMC2209SILENTSTEPSTICK RP2350B NCP1117STAT3G W25Q128JVSIQ USBLC6-2SC6-ES

Hate cbse bill of materials (BOM)

68 components, 33 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	TMC2209SILENTSTEPSTICK TMC2209_SILENTSTEPSTICK TRINAMIC Motion Control GmbH	MODULE_TMC2209_SILENTSTEPSTICK	U1, U2
1	RP2350B Raspberry Pi	QFN-80-1EP_10x10mm_P0.4mm_EP3.4x3.4mm	U3
1	NCP1117STAT3G NCP1117-3.3_SOT223 onsemi	SOT-223-3_TabPin2	U4
1	W25Q128JVSIQ W25Q128JVS Winbond Elec	SOIC-8_5.3x5.3mm_P1.27mm	U5
1	USBLC6-2SC6-ES USBLC6-2SC6 ElecSuper	SOT-23-6	U6
1	ABM8-272-T3 Crystal_GND24 Abracon LLC	Crystal_SMD_Abracon_ABM8G-4Pin_3.2x2.5mm	Y1
2	SCREW_TERMINAL_01X06 Screw_Terminal_01x06	PhoenixContact_MSTBA_2,5_6-G_1x06_P5.00mm_Horizontal	J1, J2
1	PJ-063AH Barrel_Jack_MountingPin CUI	BarrelJack_CUI_PJ-063AH_Horizontal	J3
1	CONN_01X04_SOCKET Conn_01x04_Socket	PinSocket_1x04_P2.54mm_Vertical	J4
1	CONN_01X03 Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J5
2	CONN_01X02_PIN Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Vertical	J6, J7
1	CONN_01X04_PIN Conn_01x04_Pin	PinHeader_1x04_P2.54mm_Vertical	J8
1	TYPE-C-31-M-12 USB_C_Receptacle_USB2.0_14P Korean Hroparts Elec	USB_C_Receptacle_XKB_U262-16XN-4BVC11	J9
1	CONN_01X20_PIN Conn_01x20_Pin	PinSocket_1x20_P2.54mm_Vertical	J10
6	CONN_01X02_PIN Conn_01x02_Pin	PinSocket_1x02_P2.54mm_Vertical	J12, J13, J14, J15, J16, J17
2	PTS636SK25SMTRLFS SW_Push C&K	SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS	SW1, SW2
3	LED	LED_D3.0mm	D3, D4, D5
1	AOTA-B201610S3R3-101-T 3.3 u Abracon LLC	L_0805_2012Metric	L1
13	CC0402KRX7R7BB104 100 n YAGEO	C_0402_1005Metric	C1, C6, C21, C24, C25, C26, C27, C28 +5
3	100UF 100 uF PANASONIC	CP_Radial_D4.0mm_P1.50mm	C2, C3, C4

Show 13 more

Qty	Part	Footprint	Refs
4	CL05A475MP5NRNC 4.7 u Samsung Electro-Mechanics	C_0402_1005Metric	C5, C17, C18, C19
1	CL05A106MQ5NUNC 10 uF Samsung Electro-Mechanics	C_0402_1005Metric	C7
2	10U 10 u	C_0402_1005Metric	C16, C20
2	0402CG150J500NT 15 p FH (Guangdong Fenghua Advanced Tech)	C_0402_1005Metric	C22, C23
3	0402WGF1001TCE 1k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R3, R5, R13
1	RC0402JR-0733RL 33 YAGEO	R_0201_0603Metric	R4
2	0603WAF270JT5E 5.1k UNI-ROYAL(Uniroyal Elec)	R_0603_1608Metric	R8, R9
1	0805W8F0000T5E 0 UNI-ROYAL(Uniroyal Elec)	R_0805_2012Metric	R10
1	1.2K 1.2k	R_Axial_DIN0204_L3.6mm_D1.6mm_P1.90mm_Vertical	R14
1	500 Keystone	R_Axial_DIN0204_L3.6mm_D1.6mm_P1.90mm_Vertical	R15
1	330 JKL Components	R_Axial_DIN0204_L3.6mm_D1.6mm_P1.90mm_Vertical	R16
2	0402WGF330JTCE 33R UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R17, R18
2	0201WMJ0270TEE 27 UNI-ROYAL(Uniroyal Elec)	R_0201_0603Metric	R19, R20
