KeyraHackpad

Keyrajmnz·KeyraHackpad·PCB/KeyraHackpad.kicad_pcb

KeyraHackpad PCB layout, top view — open source board by Keyrajmnz

About the KeyraHackpad PCB

KeyraHackpad is an open source PCB design by Keyrajmnz, published on GitHub. It is a 2-layer board measuring 86 × 97.5 mm, with 23 components from 5 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO and ER_OLEDM0.91_1x-I2C. By type, the board carries 11 diodes, 10 switches and 2 ICs.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

My first custom Hackpad: 10-key macropad with an OLED display, RGB LED, and XIAO RP2040.

My first custom Hackpad: a 10-key macropad with an OLED display, RGB LED, and Seeed Studio XIAO RP2040.

★ 4×3 switch matrix with 10 populated positions

★ Through-hole diodes for the switch matrix

Coding Mode is designed for VS Code and includes:

The bottom-center key switches between Coding Mode and Daily Mode.

The OLED displays the current mode, and the RGB LED changes color to indicate the active mode.

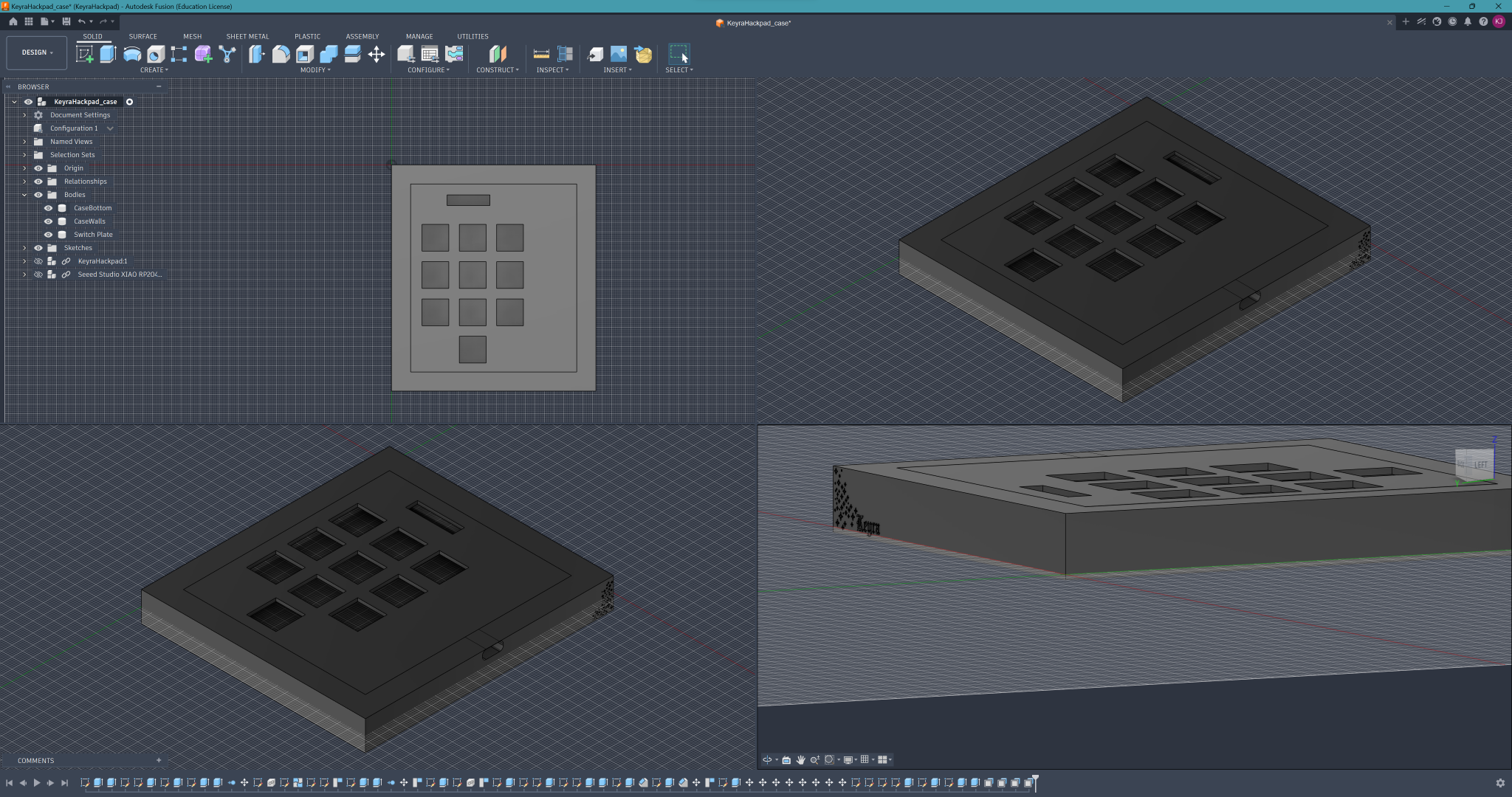

KeyraHackpad, from the project README
From the project README

Main components on the KeyraHackpad

MOUDLE-SEEEDUINO-XIAOER_OLEDM0.91_1x-I2C

KeyraHackpad bill of materials (BOM)

23 components, 5 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
ER_OLEDM0.91_1x-I2C
U2
10
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +2
10
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +2
1
SK6812MINI-E
D11

KeyraHackpad design files

The KiCad project lives in the Keyrajmnz/KeyraHackpad repository on GitHub; these links point at the commit this page was built from.

KeyraHackpad: common questions

How big is the KeyraHackpad PCB?

The KeyraHackpad measures 86 × 97.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KeyraHackpad?

23 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the KeyraHackpad design files?

From the Keyrajmnz/KeyraHackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KeyraHackpad design in my own project?

The repository has no license, so all rights stay with Keyrajmnz. Use it as a reference, and ask the author before reusing the design.
