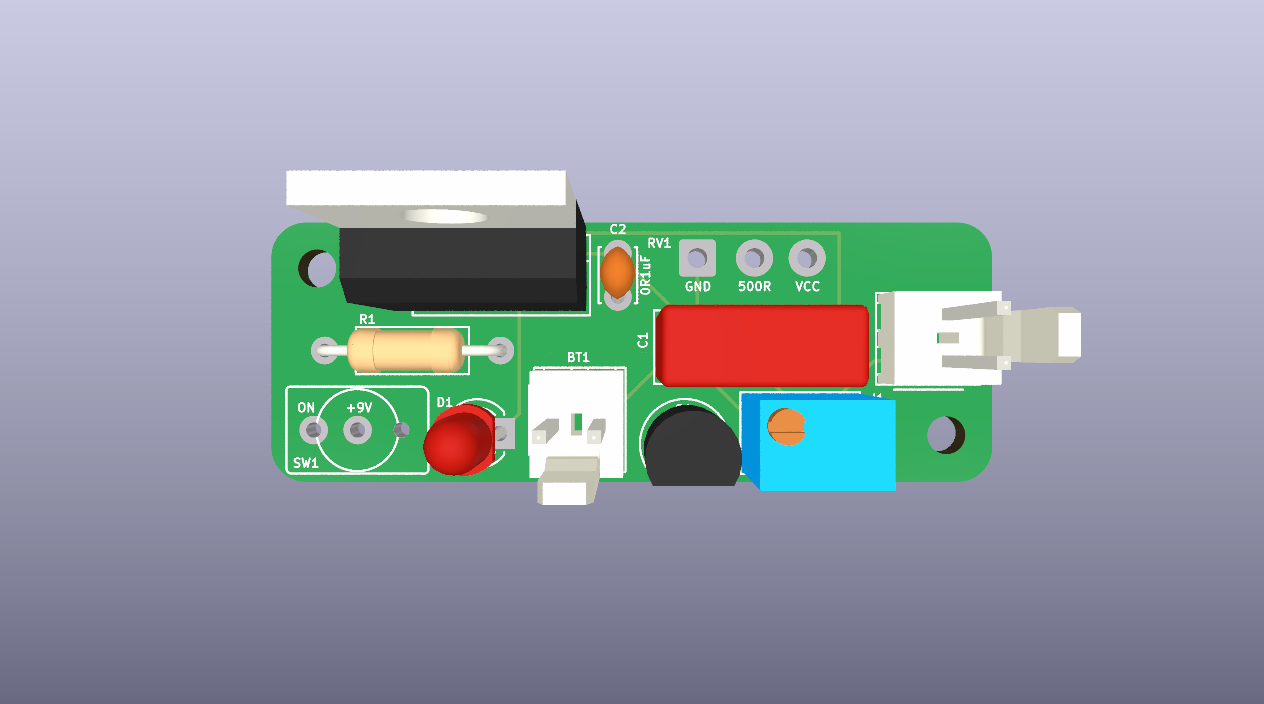

Kicad fume extractor-5v PCB layout, top view — open source board by khaosdoctor

About the Kicad fume extractor-5v PCB

Kicad fume extractor-5v is an open source PCB design by khaosdoctor, published on GitHub. It is a 2-layer board measuring 41.7 × 15 mm, with 11 components from 11 distinct parts.

Other key parts include the L7805ACV. By type, the board carries 2 capacitors, 1 IC, 1 transistor, 1 connector, 1 battery holder and 1 switch.

It belongs with the power & battery designs in this gallery.

From the project

Small learning project for a DIY fume extractor using a 9v battery and a 5v replaceable fan

KiCad project for a small, battery-powered fume extractor: a 9V battery feeds an L7805 linear regulator to drive a 5V fan through a BC337 transistor, with a potentiometer for speed control, a trimmer for calibration, a power switch and an LED indicator.

This is my first electronics project, so it's a work in progress. Expect multiple revisions as the design gets refined.

Kicad fume extractor-5v, from the project README — From the project README

Main components on the Kicad fume extractor-5v

Kicad fume extractor-5v bill of materials (BOM)

11 components, 11 distinct parts.

Qty	Part	Footprint	Refs
1	L7805ACV	TO-220-3_Vertical	U1
1	BC337	TO-92_Inline	Q1
1	FAN	Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical	J1
1	9V BAT	Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical	BT1
1	500R	SolderWire-0.5sqmm_1x03_P4.6mm_D0.9mm_OD2.1mm	RV1
1	1K	Potentiometer_Bourns_3266W_Vertical	RV2
1	SW_SPST	Switch_Toggle_SPDT_SubMini	SW1
1	LED_3mm	LED_D3.0mm	D1
1	0R22uF	C_Rect_L10.0mm_W4.0mm_P7.50mm_MKS4	C1
1	0R1uF	C_Disc_D3.0mm_W2.0mm_P2.50mm	C2
1	350R	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R1

Kicad fume extractor-5v design files

The KiCad project lives in the khaosdoctor/kicad-fume-extractor-5v repository on GitHub; these links point at the commit this page was built from.

Layoutfume Extractor.kicad_pcb
Schematicfume Extractor.kicad_sch

Kicad fume extractor-5v: common questions

How big is the Kicad fume extractor-5v PCB?

The Kicad fume extractor-5v measures 41.7 × 15 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad fume extractor-5v?

11 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad fume extractor-5v design files?

From the khaosdoctor/kicad-fume-extractor-5v repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad fume extractor-5v design in my own project?

The repository has no license, so all rights stay with khaosdoctor. Use it as a reference, and ask the author before reusing the design.
