Band MODULE V1 00
kholia·HF-PA-v6·LPF-v5/Band_MODULE_V1_00.kicad_pcb
About the Band MODULE V1 00
Band MODULE V1 00 is an open source PCB design by kholia, published on GitHub under the Custom license license. It is a 2-layer board measuring 45.4 × 14.8 mm, with 12 components from 10 distinct parts.
By type, the board carries 6 capacitors, 4 inductors and 2 connectors.
It belongs with the audio designs in this gallery.
From the project

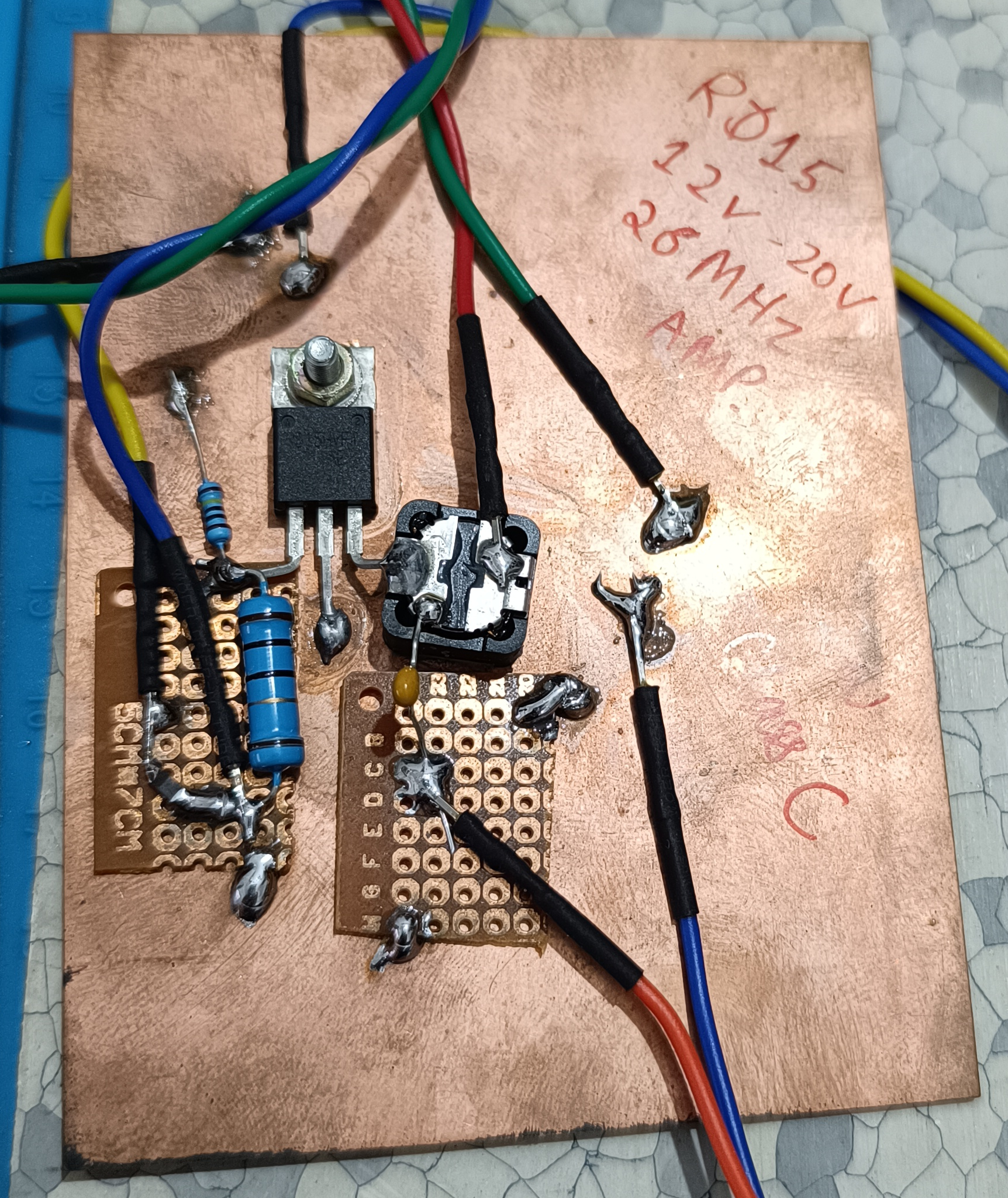

RF "Lego" blocks. Quite-Linear HF broadband RF amplifier experiments for higher bands.
The idea behind this work is to build radio-things (TM) in stages which connect to each other.
Note: This HF-PA-v6 is like https://github.com/kholia/HF-PA-v5 which has been broken out in stages. This makes the designing, and debugging processes much easier.
October-2022 UPDATE: The PCB manufactured by JLCPCB was successfully validated. We could get 5W+ with IRF510 @ 20v drain @ 28 MHz. Output at 14 MHz can be more than 10W easily too.

Band MODULE V1 00 bill of materials (BOM)
12 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Antenna | PinHeader_1x4_P2.54mm_Drill1.02mm | J1 |
| 1 | input | PinHeader_1x4_P2.54mm_Drill1.02mm | J2 |
| 1 | CE201210-68NJ | L_Toroid_Vertical_L10.0mm_W5.0mm_P5.08mm | L1 |
| 1 | DO NOT POPULATE | L_Toroid_Vertical_L10.0mm_W5.0mm_P5.08mm | L2 |
| 1 | — | L_Toroid_Vertical_L10.0mm_W5.0mm_P5.08mm | L3 |
| 1 | T37_2 | L_Toroid_Vertical_L10.0mm_W5.0mm_P5.08mm | L4 |
| 3 | 08055C104KAT4A | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C3, C5 |
| 1 | DO NOT POPULATE | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2 |
| 1 | 08055A102JAT2A | C_Disc_D5.0mm_W2.5mm_P2.50mm | C4 |
| 1 | 865080543009 100nF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C6 |
