Sdl breakout

kir486680·Open-Science-Bot·Electrical/KiCadPCB/sdl_breakout.kicad_pcb

Sdl breakout layout, top view — open source board by kir486680

About the Sdl breakout

Sdl breakout is an open source PCB design by kir486680, published on GitHub. It is a 2-layer board measuring 136.5 × 31 mm, with 27 components from 12 distinct parts.

By type, the board carries 23 ICs and 4 resistors.

It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.

From the project

Open-Science Electrochemistry Bot

Quantities marked "—" depend on enclosure layout.

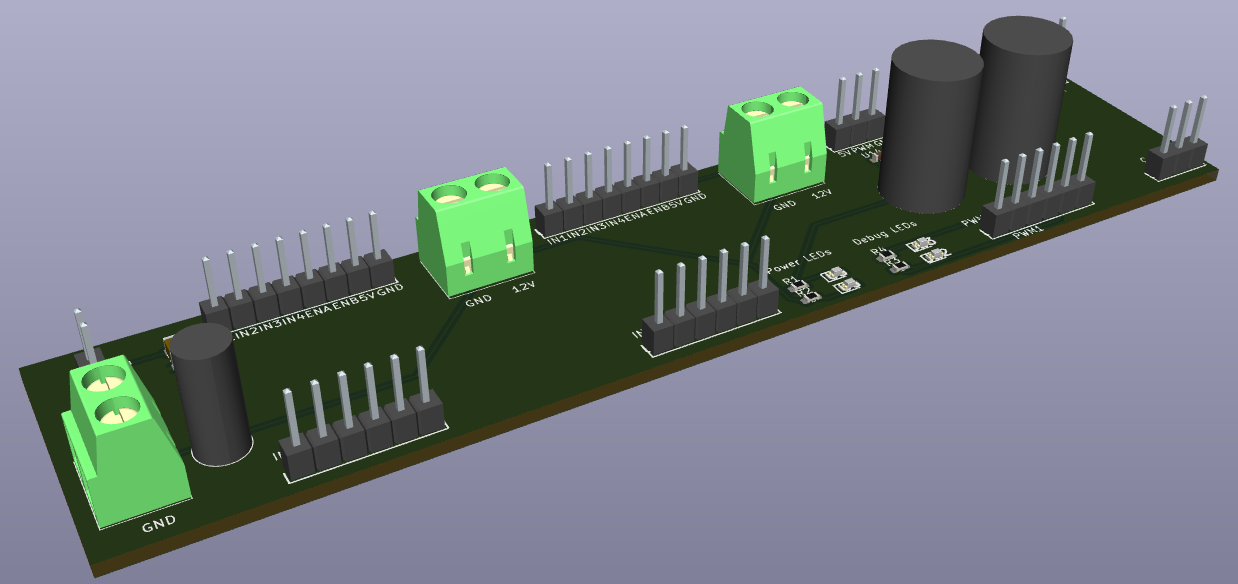

Sdl breakout, from the project README
From the project README

Sdl breakout bill of materials (BOM)

27 components, 12 distinct parts.

QtyPartRefs
1
Rubycon 100uF 25 V dc Aluminium Electrolytic Capacitor, YXJ Series 5000h 5 Dia. x 11mm
U1
1
Cap Ceramic 10uF 16V X7R 10% Pad SMD 1206 125C T/R
U2
3
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm?, Number of potentials: 2, Number of rows: 1, Number of positions per row: 2, product range: MKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 ?, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard
U3, U9, U12
1
CONN HEADER VERT 2POS 2.54MM
U4
4
Wurth Elektronik WL-SMCW 520 nm Green LED, 1608 (0603) Clear SMD package
U5, U6, U22, U23
3
CONN HEADER VERT 6POS 2.54MM
U7, U10, U19
2
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole
U8, U11
4
CONN HEADER VERT 3POS 2.54MM
U13, U16, U20, U21
2
SMD Comm X7R, Ceramic, 0.1 uF, 20%, 50 VDC, 125 VDC, 125C, -55C, X7R, SMD, MLCC, Temperature Stable, Class II, 2.5 % , 5 GOhms, 7.3 mg, 0603, 1.6mm, 0.8mm, 0.8mm, 0.7mm, 0.35mm, 4000, 78 Weeks, 80
U14, U17
2
Nichicon 470F 25V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 16mm +105C 10mm 5mm
U15, U18
3
100mW Thick Film Resistors 75V ±100ppm/℃ ±1% 390Ω 0603 Chip Resistor - Surface Mount ROHS
R1, R3, R4
1
100mW Thick Film Resistors 75V ±100ppm/℃ ±1% 1.8kΩ 0603 Chip Resistor - Surface Mount ROHS
R2

Sdl breakout design files

The KiCad project lives in the kir486680/Open-Science-Bot repository on GitHub; these links point at the commit this page was built from.

Sdl breakout: common questions

How big is the Sdl breakout?

The Sdl breakout measures 136.5 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sdl breakout?

27 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sdl breakout design files?

From the kir486680/Open-Science-Bot repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sdl breakout design in my own project?

The repository has no license, so all rights stay with kir486680. Use it as a reference, and ask the author before reusing the design.
