Ortholinix left PCB layout, top view — open source Nordic nRF board by KOHSUK

About the Ortholinix left PCB

Ortholinix left is an open source Nordic nRF PCB design by KOHSUK, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 137.1 × 92 mm, with 65 components from 6 distinct parts.

Its main chip is the XIAO_nRF52840_wBAT_wNFC_1, from the Nordic nRF family. By type, the board carries 37 diodes, 26 switches, 1 IC and 1 battery holder.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

Ortholinix Keyboard

Ortholinix is a wireless split DIY keyboard.

This repository contains ZMK firmware, KiCad PCB design files, and FreeCAD case design files.

- Split layout with 48 keys (24 per half) - Seeed Studio XIAO nRF52840 (seeeduinoxiaoble) on each half - Bluetooth connectivity powered by ZMK - Hot-swap sockets compatible with Kailh Choc V2 - Two rotary encoders with push buttons (one per half) - ZMK Studio support (left half / central) - Battery level reporting, including proxy reporting for the right half - Separate left and right PCB files in KiCad 9 format - FreeCAD source file and STEP files for…

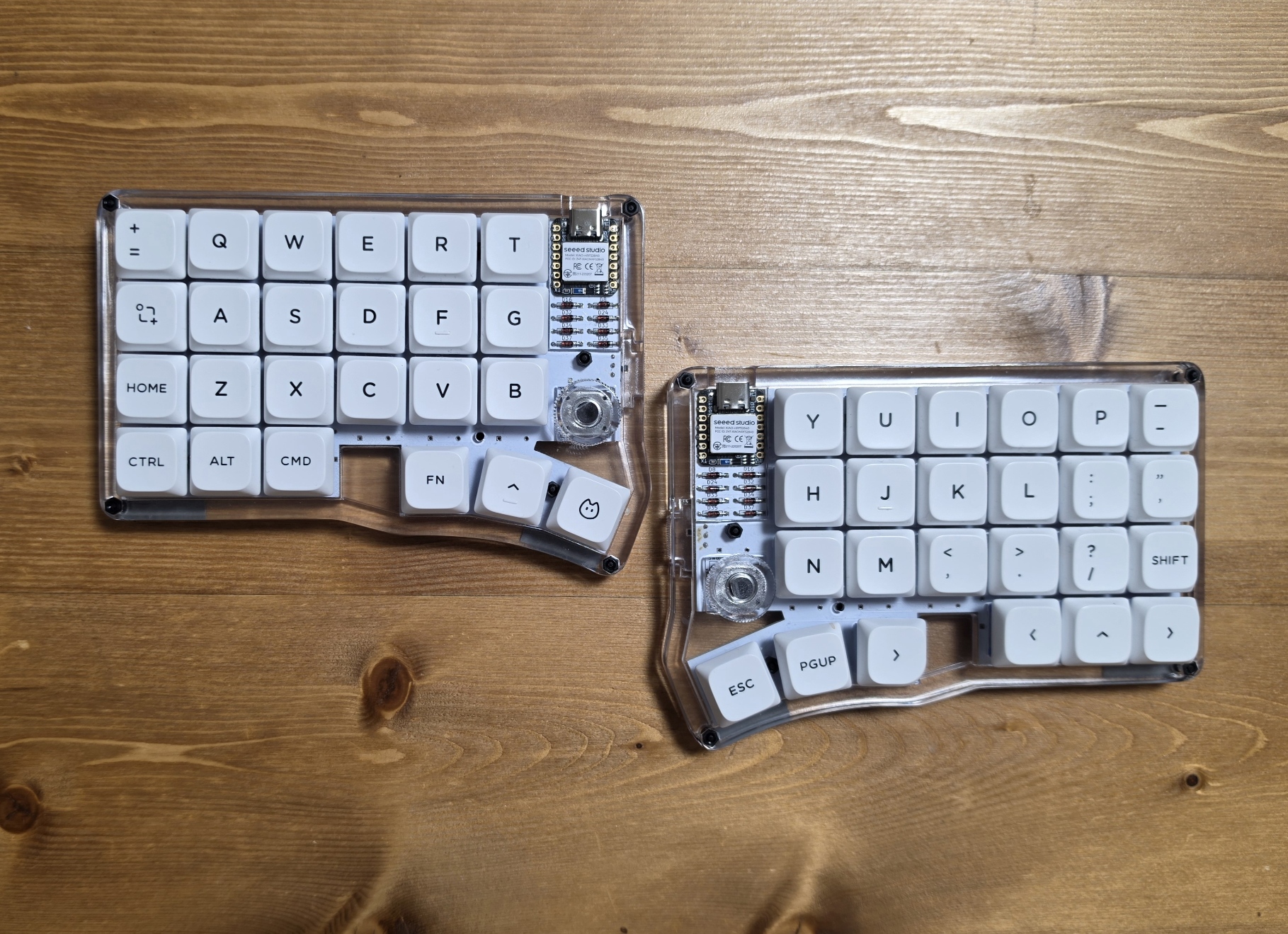

Ortholinix left, from the project README
From the project README

Ortholinix left bill of materials (BOM)

65 components, 6 distinct parts.

QtyPartRefs
1
~
U1
1
Battery_Cell
BT1
24
SW_Push
SW0_1, SW0_2, SW0_3, SW1_0, SW1_2, SW1_3, SW2_0, SW2_1 +16
1
SW_SPDT
SW1
1
RotaryEncoder_Switch
SW6_5
37
D
D1, D2, D3, D4, D5, D6, D7, D8 +29

Ortholinix left design files

The KiCad project lives in the KOHSUK/zmk-config-ortholinix repository on GitHub; these links point at the commit this page was built from.

Ortholinix left: common questions

What microcontroller does the Ortholinix left use?

The Ortholinix left is built around the XIAO_nRF52840_wBAT_wNFC_1, from the Nordic nRF family.

How big is the Ortholinix left PCB?

The Ortholinix left measures 137.1 × 92 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ortholinix left?

65 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ortholinix left design files?

From the KOHSUK/zmk-config-ortholinix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ortholinix left design in my own project?

Yes, under the terms of its GPL-3.0 license, which KOHSUK chose for the repository.

Can I test firmware for the Ortholinix left without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
