Breadboard-Power-Supply-Module

kripamaurya·Breadboard-Power-Supply-Module

Breadboard-Power-Supply-Module layout, top view — open source board by kripamaurya

About the Breadboard-Power-Supply-Module

Breadboard-Power-Supply-Module is an open source PCB design by kripamaurya, published on GitHub. It is a 2-layer board measuring 53.5 × 31 mm, with 19 components from 12 distinct parts.

Other key parts include the AMS1117-5.0 and AMS1117-3.3. By type, the board carries 6 capacitors, 4 connectors, 3 diodes, 3 resistors, 2 ICs and 1 fuse.

It belongs with the power & battery, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

🚀 Designed a compact Breadboard Power Supply Module in KiCad featuring regulated 5V and 3.3V outputs using AMS1117 voltage regulators. The project includes schematic design, PCB layout, routing, and 3D visualization. Ideal for electronics prototyping, embedded systems, and IoT development. ⚡🔧

1. Circuit Design 2. Schematic Capture 3. PCB Layout Design 4. Component Placement 5. PCB Routing 6. 3D Visualization 7. Gerber Generation

- Breadboard Prototyping - Arduino Projects - ESP32 Projects - Embedded Systems - IoT Development - Electronics Learning

This project is licensed under the MIT License.

If you found this project useful, consider giving it a ⭐ on GitHub.

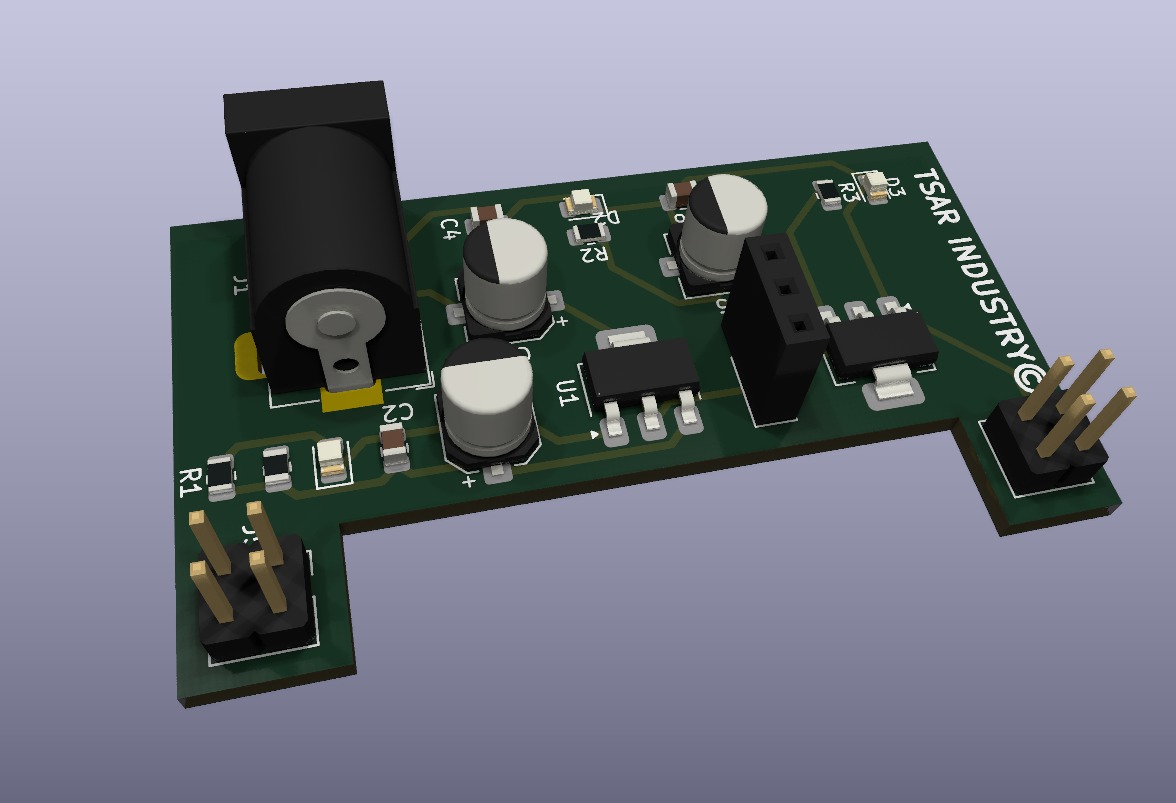

Breadboard-Power-Supply-Module, from the project README
From the project README

Main components on the Breadboard-Power-Supply-Module

AMS1117-5.0AMS1117-3.3

Breadboard-Power-Supply-Module bill of materials (BOM)

19 components, 12 distinct parts.

QtyPartRefs
1
AMS1117-5.0
U1
1
AMS1117-3.3
U2
1
Barrel_Jack_Switch
J1
1
Conn_01x03_Pin
J3
2
Conn_02x02_Odd_Even
J4, J5
1
Fuse
F1
3
GREEN_LED
D1, D2, D3
3
100uF
C1, C3, C5
3
0.1uf
C2, C4, C6
1
1K
R1
1
330
R2
1
560
R3

Breadboard-Power-Supply-Module design files

The KiCad project lives in the kripamaurya/Breadboard-Power-Supply-Module repository on GitHub; these links point at the commit this page was built from.

Breadboard-Power-Supply-Module: common questions

How big is the Breadboard-Power-Supply-Module?

The Breadboard-Power-Supply-Module measures 53.5 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Breadboard-Power-Supply-Module?

19 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Breadboard-Power-Supply-Module design files?

From the kripamaurya/Breadboard-Power-Supply-Module repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Breadboard-Power-Supply-Module design in my own project?

The repository has no license, so all rights stay with kripamaurya. Use it as a reference, and ask the author before reusing the design.
