Mgh80 proto

Kris-Sekula·mgh80·ProtoBoard/mgh80_proto.kicad_pcb

Mgh80 proto PCB layout, top view — open source board by Kris-Sekula

About the Mgh80 proto PCB

Mgh80 proto is an open source PCB design by Kris-Sekula, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 6 components from 4 distinct parts.

It belongs with the retro computing designs in this gallery.

From the project

Simple 5 IC Z80 singe-board computer

This is a companion board to mgh80. It extends the I/O connections and the z80Bus to a prototyping board giving you a larger "experiments area".

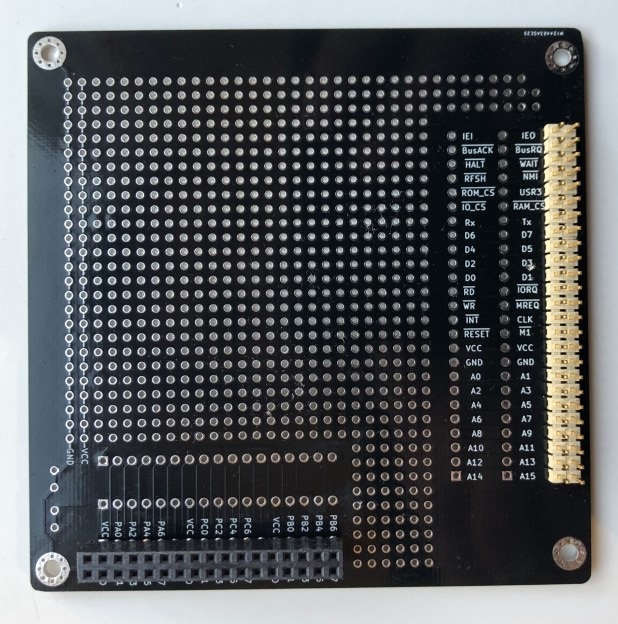

Mgh80 proto, from the project README
From the project README

Mgh80 proto bill of materials (BOM)

6 components, 4 distinct parts.

QtyPartRefs
1
Z80Bus
J1
2
Conn_01x25
J2, J3
2
Conn_01x17
J4, J6
1
Conn_02x15_Odd_Even
J5

Mgh80 proto design files

The KiCad project lives in the Kris-Sekula/mgh80 repository on GitHub; these links point at the commit this page was built from.

Mgh80 proto: common questions

How big is the Mgh80 proto PCB?

The Mgh80 proto measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mgh80 proto?

6 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mgh80 proto design files?

From the Kris-Sekula/mgh80 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Mgh80 proto design in my own project?

The repository has no license, so all rights stay with Kris-Sekula. Use it as a reference, and ask the author before reusing the design.
