About the Main PCB
Main is an open source PCB design by kylenmorris, published on GitHub. It is a 2-layer board measuring 163.5 × 133.5 mm, with 52 components from 13 distinct parts.
By type, the board carries 10 capacitors, 10 resistors, 3 connectors, 2 switches and 1 transistor.
It belongs with the sensors and displays & leds designs in this gallery.
From the project
A custom reaction chamber for automation of crop pathogens testing using a NAAT reaction, developed as a capstone project
Our capstone project was to design a self-contained device that would run Nucleic Acid Amplification Testing (NAAT), a method of in-field crop disease testing that replaces slow lab-based testing. This project was introduced to us by PathoScan who supplied the reaction tubes and supplies.

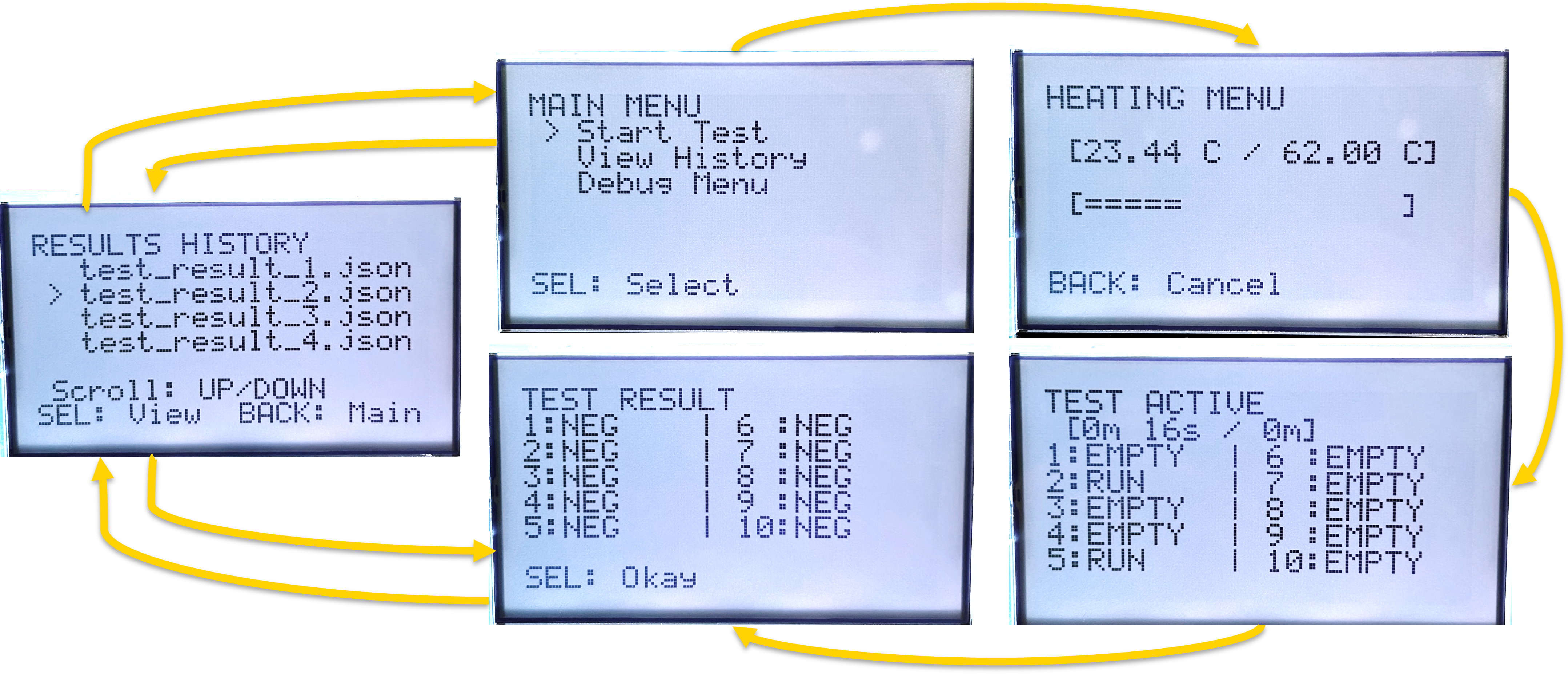

This device has several features, including maintaining and monitoring of internal chamber temperature, light-emission monitoring, storage of test results, and input/output from the user.

Main bill of materials (BOM)
52 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DMG2305UX-7 | SOT91P240X110-3N_DMG2305UX-7 | Q1 |
| 2 | Conn_01x20_Socket | PinSocket_1x20_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_01x09_Socket | PinSocket_1x09_P2.54mm_Vertical | J3 |
| 2 | MCP3208 | DIP254P762X432-16 | ADC0, ADC1 |
| 1 | B6B-XH-A | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | BTN_Header1 |
| 2 | B2B-XH-A | JST_B2B-XH-A | Fan_Header1, Heater_Actuation1 |
| 6 | B8B-XH-A | JST_XH_B8B-XH-A_1x08_P2.50mm_Vertical | LCD_Header1, SD_Header1, Temp0_Header1, Temp1_Header1, Temp2_Header1, Temp3_Header1 |
| 3 | LMC660CM | SOIC127P600X175-14N | OpAmp1, OpAmp2, OpAmp3 |
| 10 | APDS-9006-020 | photodiode_v4 | Photo0, Photo1, Photo2, Photo3, Photo4, Photo5, Photo7, Photo8 +2 |
| 2 | B02P-VL | CONN_B02P-VL_JST | Power_Connector_3V3, Power_Connector_5V1 |
| 2 | B6B-XH-A | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | SW0_Header1, SW1_Header1 |
| 10 | 100p | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C0, C1, C2, C3, C4, C5, C6, C7 +2 |
| 10 | 8.25k | YAG_MF25_YAG | R0, R1, R2, R3, R4, R5, R6, R7 +2 |
Main design files
The KiCad project lives in the kylenmorris/reaction-chamber repository on GitHub; these links point at the commit this page was built from.
Main: common questions
How big is the Main PCB?
The Main measures 163.5 × 133.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Main?
52 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Main design files?
From the kylenmorris/reaction-chamber repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Main design in my own project?
The repository has no license, so all rights stay with kylenmorris. Use it as a reference, and ask the author before reusing the design.
