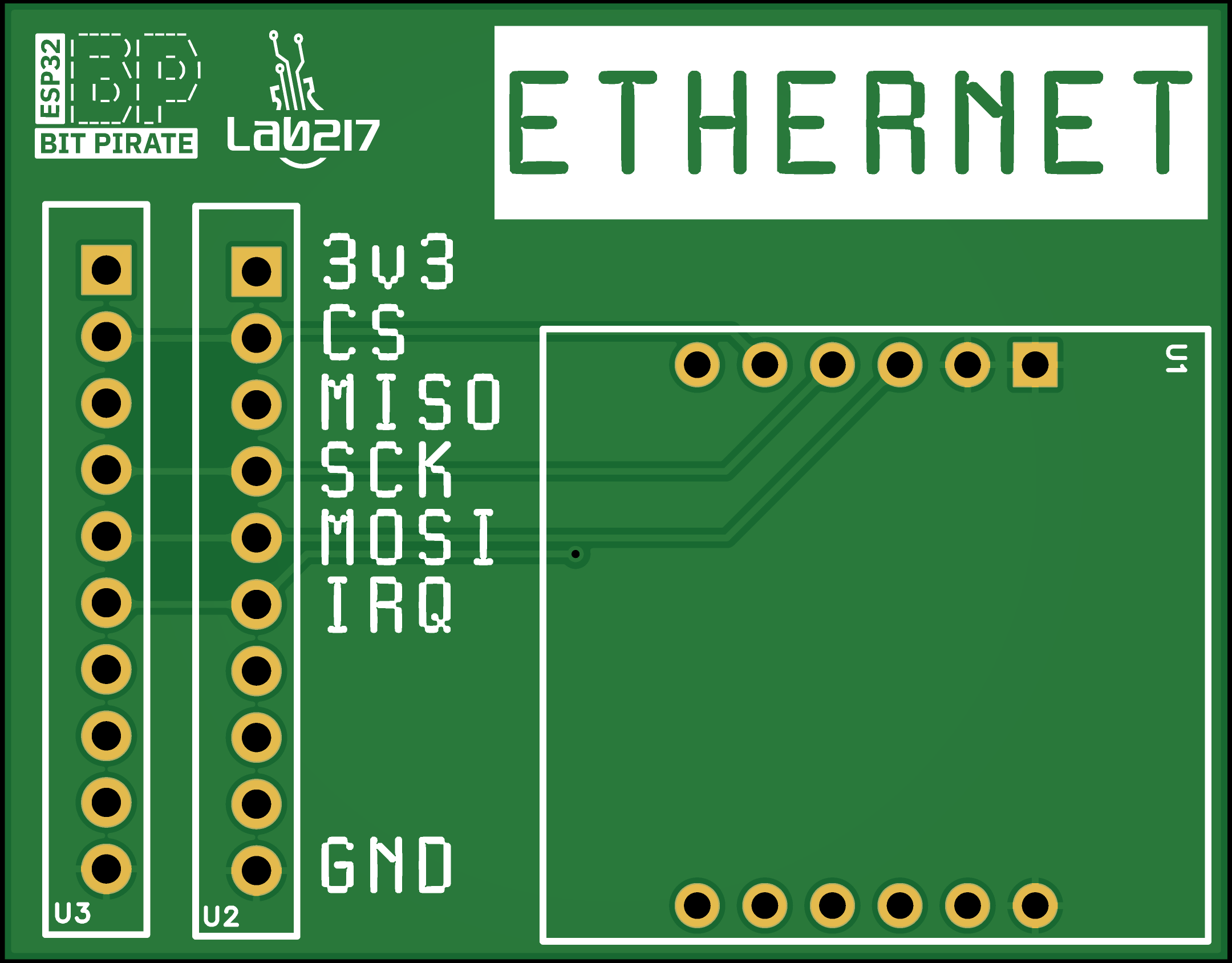

BitPirate Ethernet PCB layout, top view — open source board by Lab217MX

About the BitPirate Ethernet PCB

BitPirate Ethernet is an open source PCB design by Lab217MX, published on GitHub under the MIT license. It is a 2-layer board measuring 46 × 35.9 mm, with 3 components from 2 distinct parts.

From the project

PCB personalizada que expande el proyecto [ESP32-Bus-Pirate](https://github.com/geo-tp/ESP32-Bus-Pirate) con módulos integrados para NFC, Ethernet, Sub-GHz y 2.4 GHz, todo en un solo kit de hardware orientado a seguridad e investigación.

Ethernet network module based on WIZnet's W5500 chip. It provides wired network connectivity to the kit, allowing traffic analysis, packet sniffing and security testing on local networks.

- WIZnet W5500 chip - Speed: 10/100 Mbps - Integrated RJ45 connector with transformer - Hardware TCP/IP stack: - TCP, UDP, ICMP, IPv4 - ARP, IGMP, PPPoE - 8 simultaneous sockets - 32KB internal buffer for TX/RX - Interface: SPI (up to 80 MHz) - Low power consumption

BitPirate Ethernet, from the project README
From the project README

BitPirate Ethernet bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
—
U1
2
—
U2, U3

BitPirate Ethernet design files

The KiCad project lives in the Lab217MX/Kraken-Kit repository on GitHub; these links point at the commit this page was built from.

BitPirate Ethernet: common questions

How big is the BitPirate Ethernet PCB?

The BitPirate Ethernet measures 46 × 35.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BitPirate Ethernet?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BitPirate Ethernet design files?

From the Lab217MX/Kraken-Kit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BitPirate Ethernet design in my own project?

Yes, under the terms of its MIT license, which Lab217MX chose for the repository.
