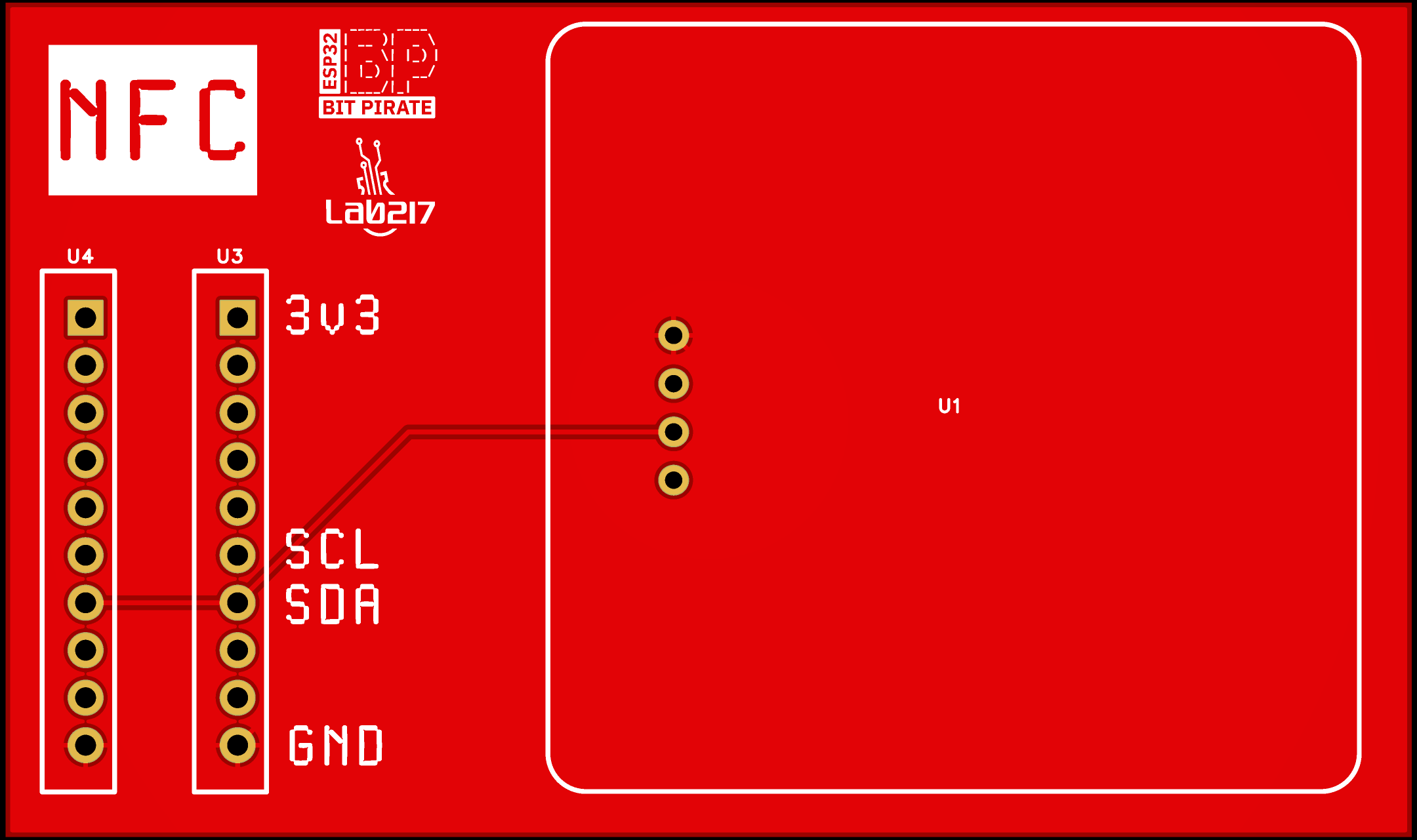

BitPirate NFC
About the BitPirate NFC PCB
BitPirate NFC is an open source PCB design by Lab217MX, published on GitHub under the MIT license. It is a 2-layer board measuring 74 × 43.9 mm, with 3 components from 2 distinct parts.
From the project
PCB personalizada que expande el proyecto [ESP32-Bus-Pirate](https://github.com/geo-tp/ESP32-Bus-Pirate) con módulos integrados para NFC, Ethernet, Sub-GHz y 2.4 GHz, todo en un solo kit de hardware orientado a seguridad e investigación.
NFC/RFID communication module based on the PN532 chip. It allows reading, writing and emulation of NFC cards, making it ideal for security research on access control systems, contactless payments and RFID tags.
- NXP PN532 chip - Operating frequency: 13.56 MHz - Supported protocols: - ISO/IEC 14443 Type A and B - ISO/IEC 18092 (NFC) - Mifare Classic, Ultralight, DESFire - FeliCa - Operating modes: - Reader/Writer: reads and writes NFC tags - Card emulation: simulates an NFC card - Peer-to-peer: communication between NFC devices - Interface: SPI / I2C / UART (configurable)
BitPirate NFC bill of materials (BOM)
3 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — | PN532 | U1 |
| 2 | — | CONN-TH_10P-P2.50_B10B-EH-A-LF-SN | U3, U4 |
BitPirate NFC design files
The KiCad project lives in the Lab217MX/Kraken-Kit repository on GitHub; these links point at the commit this page was built from.
BitPirate NFC: common questions
How big is the BitPirate NFC PCB?
The BitPirate NFC measures 74 × 43.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the BitPirate NFC?
3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BitPirate NFC design files?
From the Lab217MX/Kraken-Kit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BitPirate NFC design in my own project?
Yes, under the terms of its MIT license, which Lab217MX chose for the repository.
