About the BitPirate SubGHz PCB

BitPirate SubGHz is an open source PCB design by Lab217MX, published on GitHub under the MIT license. It is a 2-layer board measuring 32.1 × 51.2 mm, with 3 components from 2 distinct parts.

It belongs with the rf & radio, iot & wireless and test & measurement designs in this gallery.

From the project

PCB personalizada que expande el proyecto [ESP32-Bus-Pirate](https://github.com/geo-tp/ESP32-Bus-Pirate) con módulos integrados para NFC, Ethernet, Sub-GHz y 2.4 GHz, todo en un solo kit de hardware orientado a seguridad e investigación.

Dual RF communication module that combines two chips to cover a wide frequency spectrum:

- CC1101 (Texas Instruments): Sub-GHz communication for remote controls, wireless sensors, alarm systems and IoT devices. - nRF24L01 (Nordic Semiconductor): 2.4 GHz band communication for analysis of Wi-Fi, Zigbee and BLE protocols.

- CC1101 chip from Texas Instruments - Frequency range: 300-348 MHz, 387-464 MHz, 779-928 MHz - Common bands supported: - 315 MHz (Americas) - 433 MHz (Europe/Asia) - 868 MHz (Europe) - 915 MHz (Americas) - Modulations: 2-FSK, 4-FSK, GFSK, MSK, OOK, ASK - Transmission power…

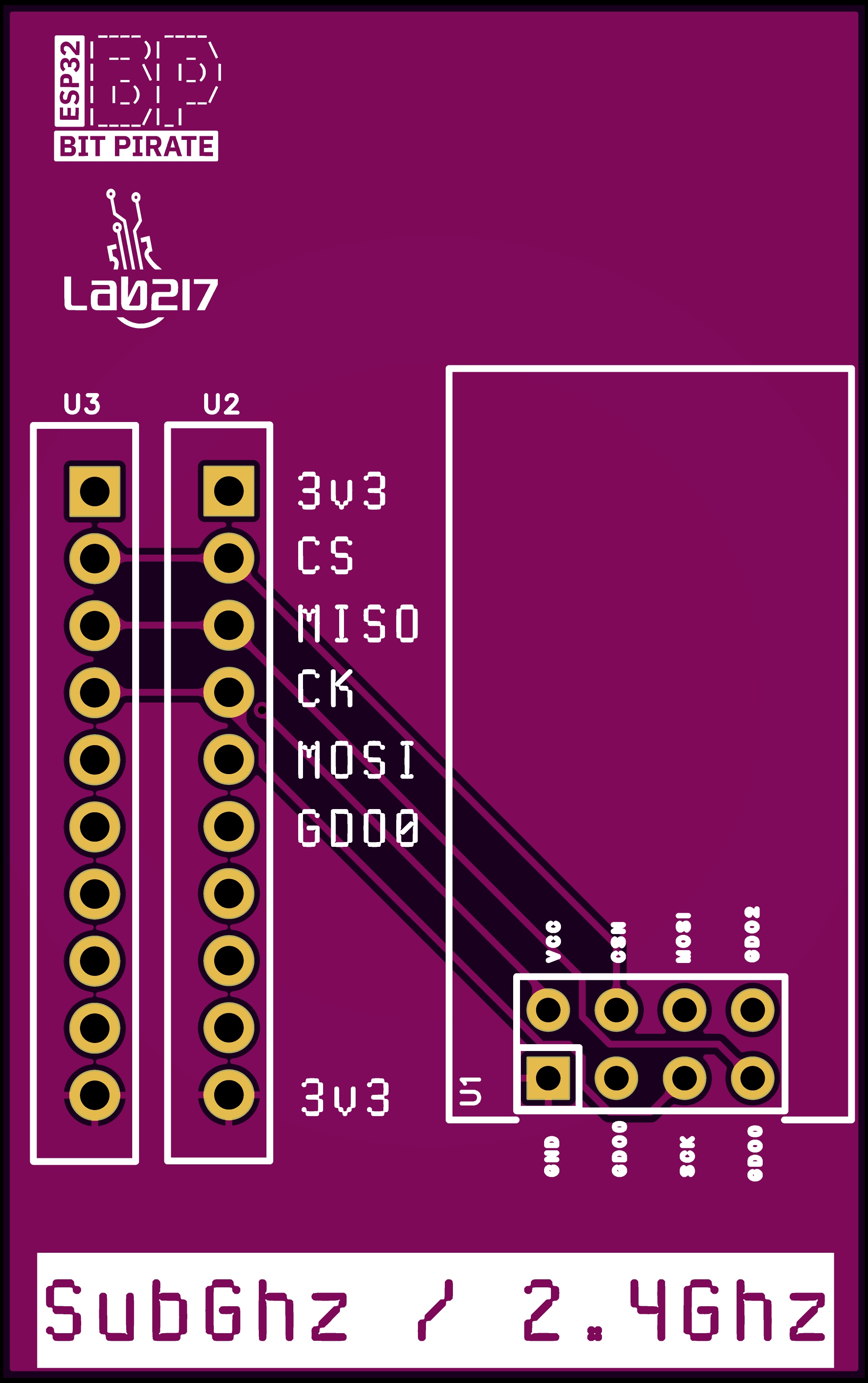

BitPirate SubGHz, from the project README
From the project README

BitPirate SubGHz bill of materials (BOM)

3 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
—
U1
2
—
U2, U3

BitPirate SubGHz design files

The KiCad project lives in the Lab217MX/Kraken-Kit repository on GitHub; these links point at the commit this page was built from.

BitPirate SubGHz: common questions

How big is the BitPirate SubGHz PCB?

The BitPirate SubGHz measures 32.1 × 51.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BitPirate SubGHz?

3 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BitPirate SubGHz design files?

From the Lab217MX/Kraken-Kit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BitPirate SubGHz design in my own project?

Yes, under the terms of its MIT license, which Lab217MX chose for the repository.
