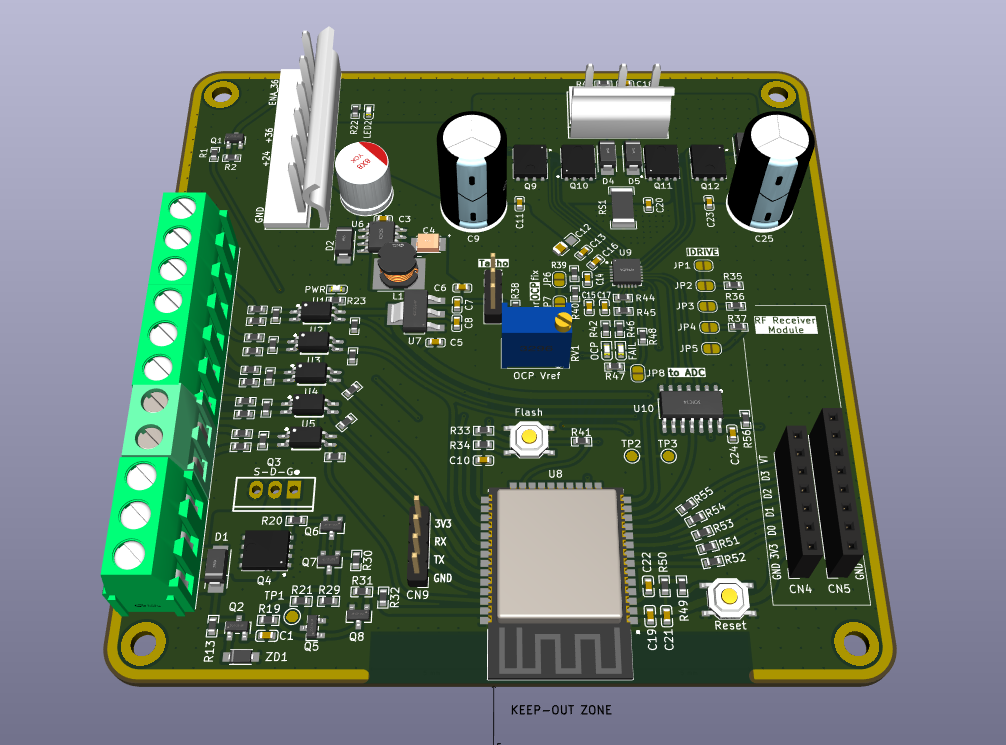

Garage door controller PCB layout, top view — open source ESP32 board by latonita

About the Garage door controller PCB

Garage door controller is an open source ESP32 PCB design by latonita, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 125 components from 46 distinct parts.

Its main chip is the ESP32-WROOM-32E(4MB), from the ESP32 family. Other key parts include the EL3H7(B)(TA)-G, XL1509-5.0E1, AMS1117-3.3, DRV8701PRGET and SN74HCS08DR. By type, the board carries 55 resistors, 25 capacitors, 11 transistors, 10 ICs, 7 diodes and 4 crystals.

It belongs with the robotics & motion designs in this gallery.

From the project

Garage door controller with integrated motor driver 24V/36V, 7A

Features: - DRV8701 driver - selectable mosfet gate drive - and overcurrent protection - PowerSO mosfets - shall be enough to run 24V/7A and more - External interface for common RF-receivers - RX-480R / RF11A04 - HCS301 based - Fabrication - Prepared for automated assembly on JLCPCB - Most of components are basic, no unnesessary Pick-and-place feeding fees. I personally order only couple of Extended parts to be soldered.

Garage door controller, from the project README
From the project README

Main components on the Garage door controller

EL3H7(B)(TA)-GXL1509-5.0E1AMS1117-3.3ESP32-WROOM-32E(4MB)DRV8701PRGETSN74HCS08DR

Garage door controller bill of materials (BOM)

125 components, 46 distinct parts.
