Machine access node

leedshackspace·machine-access-node·hardware/machine-node-wifi.kicad_pcb

Machine access node PCB layout, top view — open source ESP8266 board by leedshackspace

About the Machine access node PCB

Machine access node is an open source ESP8266 PCB design by leedshackspace, published on GitHub. It is a 2-layer board measuring 76.2 × 69.9 mm, with 32 components from 24 distinct parts.

Its main chip is the WeMos D1 Mini, from the ESP8266 family. Other key parts include the LM7805_TO220, Vigortronix-VTX-214-005-005, RFID-RC522 Reader and 4N25. By type, the board carries 7 resistors, 6 diodes, 5 ICs, 5 connectors, 5 capacitors and 1 transistor.

It belongs with the iot & wireless designs in this gallery.

From the project

Hardware interface to the Tool Access API.

Hardware and firmware to provide restricted access to dangerous and delicate tools. Built around an ESP8266 (WeMos D1 mini) and RFID-RC522 breakout.

Designed to be easy to build for all levels of experience - simply order the PCB from DirtyPCBs or OSHPark and solder the through hole parts to the board. Software builds through the Arduino environment and will flash directly to the WeMos board over USB.

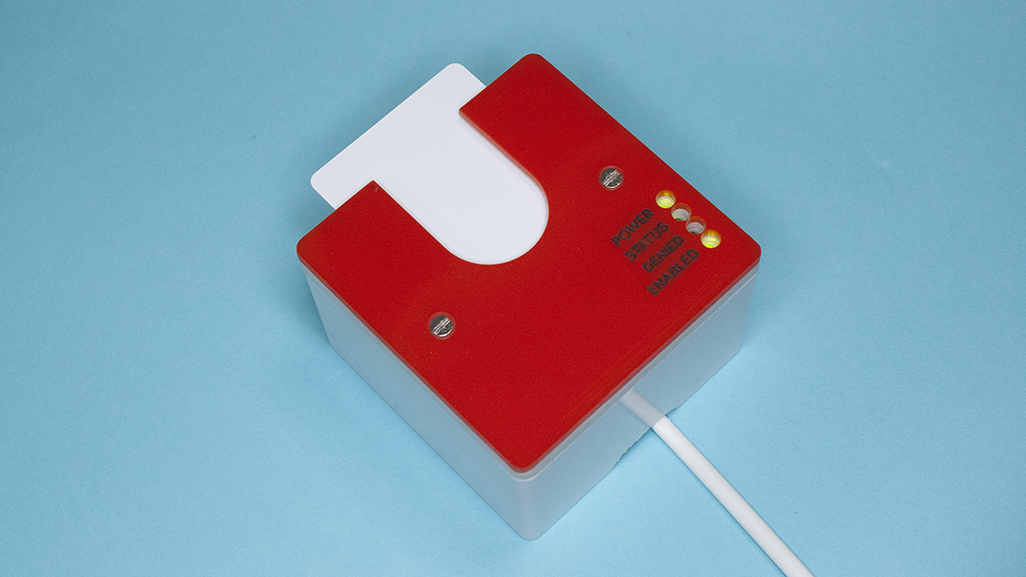

Machine access node, from the project README
From the project README

Main components on the Machine access node

WeMos D1 MiniLM7805_TO220Vigortronix-VTX-214-005-005RFID-RC522 Reader4N25

Machine access node bill of materials (BOM)

32 components, 24 distinct parts.

QtyPartRefs
1
WeMos D1 Mini
U1
1
LM7805_TO220
U2
1
Vigortronix-VTX-214-005-005
U3
1
RFID-RC522 Reader
U4
1
4N25
U5
1
PN2222A
Q1
2
Conn_01x02
J1, J2
3
Conn_01x03
J3, J4, J5
1
5V-JUMP
JP1
1
FINDER 32.21.7.012.2000
K1
1
POWER
D1
2
1N4001
D2, D6
1
STATUS
D3
1
NOT-AUTH
D4
1
OUTPUT-ACTIVE
D5
1
5UH
L1
1
ECQU2A224ML
C1
1
100U
C2
1
10U
C3
1
470UF
C4
Show 4 more
QtyPartRefs
1
0.1NF
C5
4
1K
R1, R2, R3, R4
2
2K2
R5, R6
1
10K
R7

Machine access node design files

The KiCad project lives in the leedshackspace/machine-access-node repository on GitHub; these links point at the commit this page was built from.

Machine access node: common questions

What microcontroller does the Machine access node use?

The Machine access node is built around the WeMos D1 Mini, from the ESP8266 family.

How big is the Machine access node PCB?

The Machine access node measures 76.2 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Machine access node?

32 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Machine access node design files?

From the leedshackspace/machine-access-node repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Machine access node design in my own project?

The repository has no license, so all rights stay with leedshackspace. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Machine access node without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
