Dpp architecture PCB layout, top view — open source board by leonardoward

About the Dpp architecture PCB

Dpp architecture is an open source PCB design by leonardoward, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 111.8 × 76.2 mm, with 17 components from 12 distinct parts.

Other key parts include the DGD0215WT-7. By type, the board carries 4 connectors, 4 capacitors, 4 resistors, 2 diodes, 1 IC and 1 transistor.

It belongs with the power & battery designs in this gallery.

From the project

PCB design (Kicad) to test the DPP architecture used in MPPT designs

A single‑channel isolated flyback power stage on a KiCad 6 PCB, built to bench‑test the converter used in a Differential Power Processing (DPP) MPPT. It is the hardware side of the MultiMPPT project — a low‑cost, high‑efficiency MPPT with multiple independent inputs — and it implements one converter cell from the model in dpp-mppt-simulation.

1. What It Is 2. How the Circuit Works 3. Schematic 4. Connectors 5. Bill of Materials 6. PCB 7. Building the Board 8. Repository Layout 9. Notes & Safety 10. License

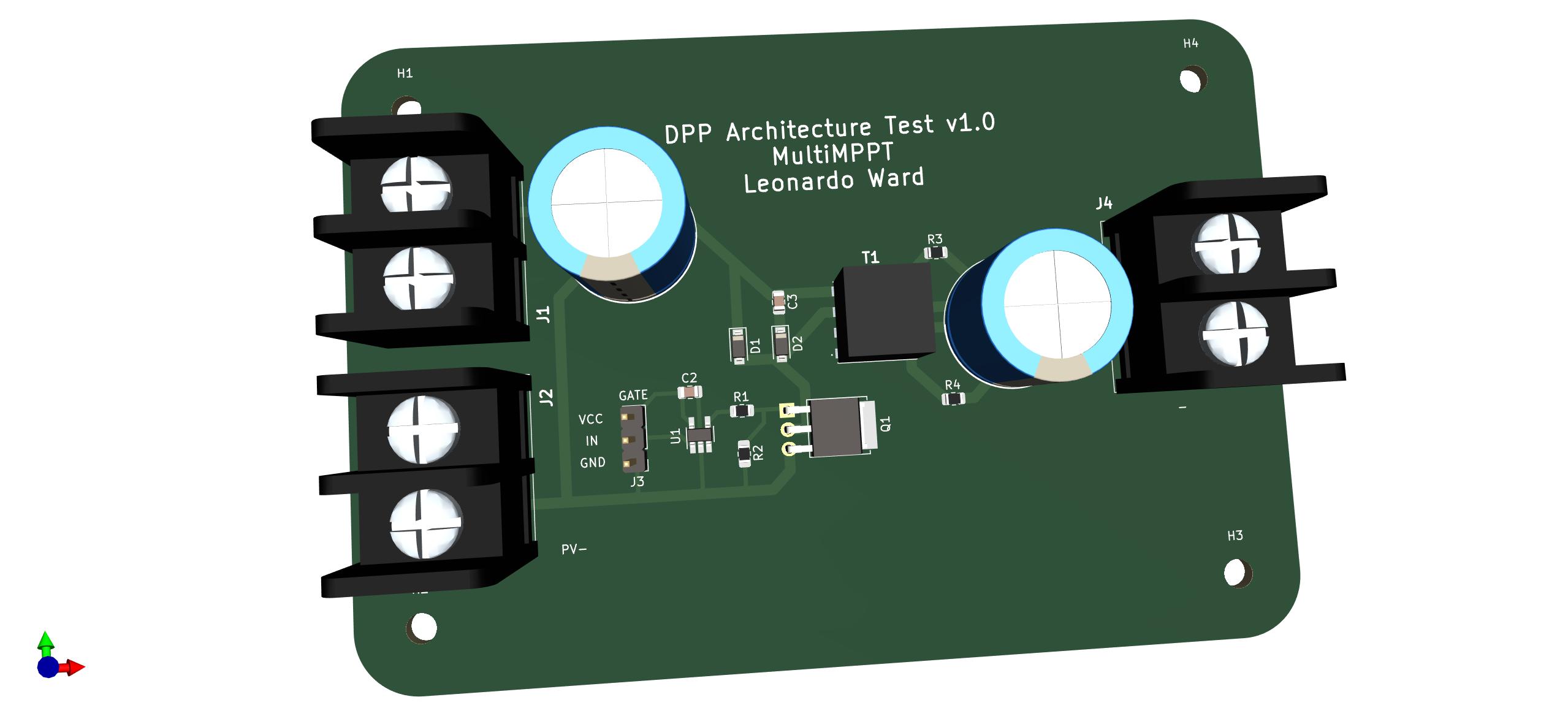

Dpp architecture, from the project README — From the project README

Main components on the Dpp architecture

Dpp architecture bill of materials (BOM)

17 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	DGD0215WT-7	SOT-23-5_HandSoldering	U1
1	IRFU120NPBF	TO-251-3-1EP_Horizontal_TabDown	Q1
3	OSTYK51102030	OSTYK51102030	J1, J2, J4
1	Conn_01x03_Male	PinHeader_1x03_P2.54mm_Vertical	J3
1	750311659	750311659	T1
2	1N4148W-7-F	D_SOD-123	D1, D2
2	228CKS050MQW 2200	CP_Radial_D16.0mm_P7.50mm	C1, C4
1	CL21B105KAFNNNE 1uF Samsung Electro-Mechanics	C_0805_2012Metric	C2
1	08051A470JAT2A 47pF KYOCERA AVX	C_0805_2012Metric	C3
1	RMCF0805FT1K00 1K Stackpole Electronics Inc	R_0805_2012Metric	R1
1	RMCF0805FG100K 100k	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2
2	RC0805JR-070RL 0 Yageo	R_0805_2012Metric	R3, R4

Dpp architecture design files

The KiCad project lives in the leonardoward/dpp-architecture-pcb repository on GitHub; these links point at the commit this page was built from.

Layoutdpp-architecture/dpp-architecture.kicad_pcb
Schematicdpp-architecture/dpp-architecture.kicad_sch

Dpp architecture: common questions

How big is the Dpp architecture PCB?

The Dpp architecture measures 111.8 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Dpp architecture?

17 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dpp architecture design files?

From the leonardoward/dpp-architecture-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dpp architecture design in my own project?

Yes, under the terms of its GPL-3.0 license, which leonardoward chose for the repository.
