Lora development boards
About the Lora development boards PCB
Lora development boards is an open source PCB design by leonardoward, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 69 × 50 mm, with 6 components from 6 distinct parts.
Other key parts include the RFM95W-915S2. By type, the board carries 4 connectors, 1 IC and 1 capacitor.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project
RFM95W-915S2 Development Board designed with KiCad
This repository contains the design of a development board for the RFM95W-915S2. The PCB was designed using KiCad.

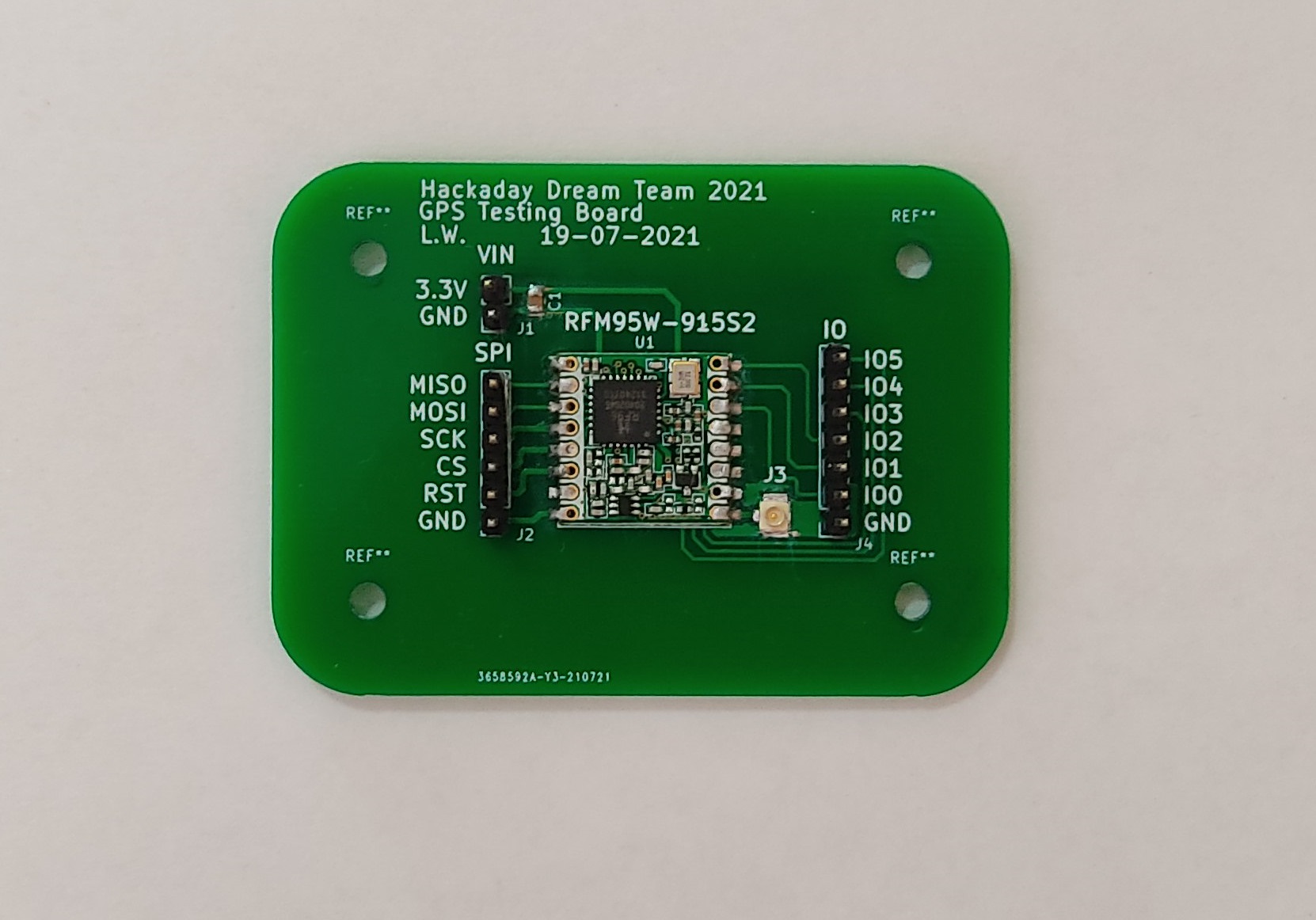

The RFM95W-915S2 Development board is a PCB that contains a RFM95W LoRa transceiver, a U.FL connector for the external antenna, a decoupling capacitor and a group of headers connected to the different pins of the transceiver. The transceiver can be used as a sender or a receiver.
Main components on the Lora development boards
Lora development boards bill of materials (BOM)
6 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RFM95W-915S2 | HOPERF_RFM9XW_SMD | U1 |
| 1 | Conn_01x02_Male | PinSocket_1x02_P2.54mm_Vertical | J1 |
| 1 | Conn_01x06_Male | PinSocket_1x06_P2.54mm_Vertical | J2 |
| 1 | U.FL-R-SMT-1_10_ | U.FL-R-SMT-1_10_ | J3 |
| 1 | Conn_01x07_Male | PinSocket_1x07_P2.54mm_Vertical | J4 |
| 1 | C-10uF-0805 | C_0805_2012Metric | C1 |
Lora development boards design files
The KiCad project lives in the leonardoward/lora-development-boards repository on GitHub; these links point at the commit this page was built from.
Lora development boards: common questions
How big is the Lora development boards PCB?
The Lora development boards measures 69 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lora development boards?
6 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Lora development boards design files?
From the leonardoward/lora-development-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Lora development boards design in my own project?
Yes, under the terms of its Apache-2.0 license, which leonardoward chose for the repository.
