HACKPad PCB layout, top view — open source RP2040/RP2350 board by Lightmaxifrvr

About the HACKPad PCB

HACKPad is an open source RP2040/RP2350 PCB design by Lightmaxifrvr, published on GitHub. It is a 2-layer board measuring 75.8 × 97.4 mm, with 23 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 13 diodes, 9 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

my HackClub HackPad!

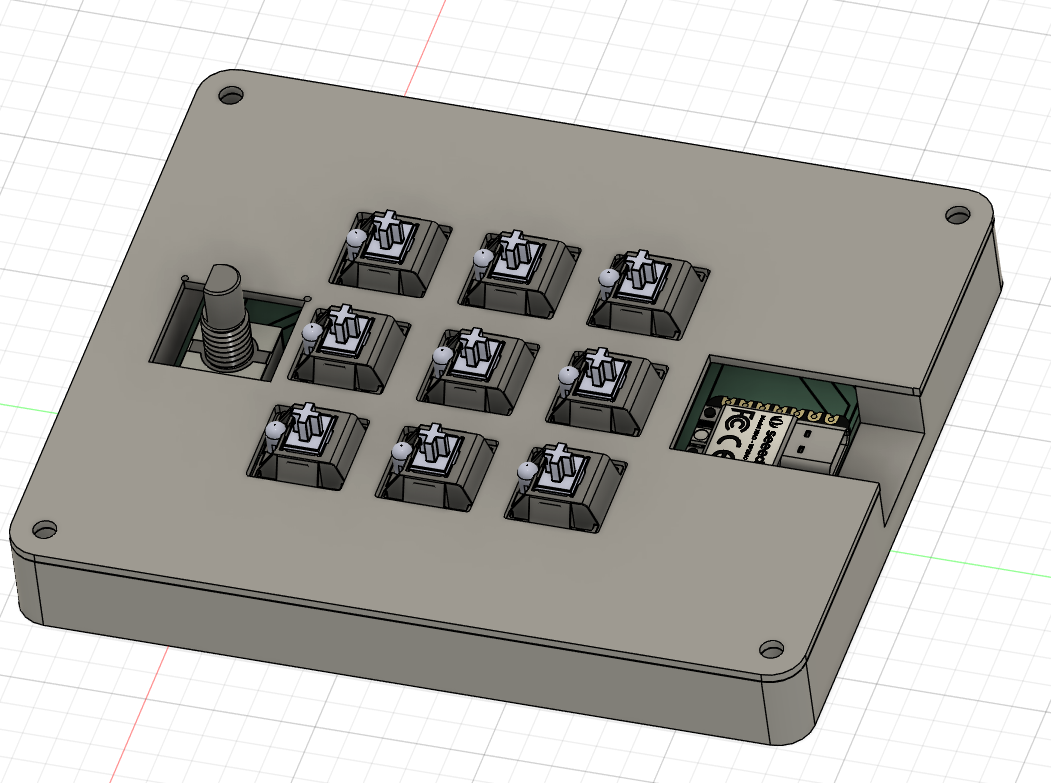

HACKPad, from the project README
From the project README

Main components on the HACKPad

XIAO-RP2040-DIP

HACKPad bill of materials (BOM)

23 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
4
SK6812
D1, D2, D3, D13
9
D
D4, D5, D6, D7, D8, D9, D10, D11 +1

HACKPad design files

The KiCad project lives in the Lightmaxifrvr/HACKPad repository on GitHub; these links point at the commit this page was built from.

HACKPad: common questions

What microcontroller does the HACKPad use?

The HACKPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the HACKPad PCB?

The HACKPad measures 75.8 × 97.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HACKPad?

23 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the HACKPad design files?

From the Lightmaxifrvr/HACKPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the HACKPad design in my own project?

The repository has no license, so all rights stay with Lightmaxifrvr. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the HACKPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
