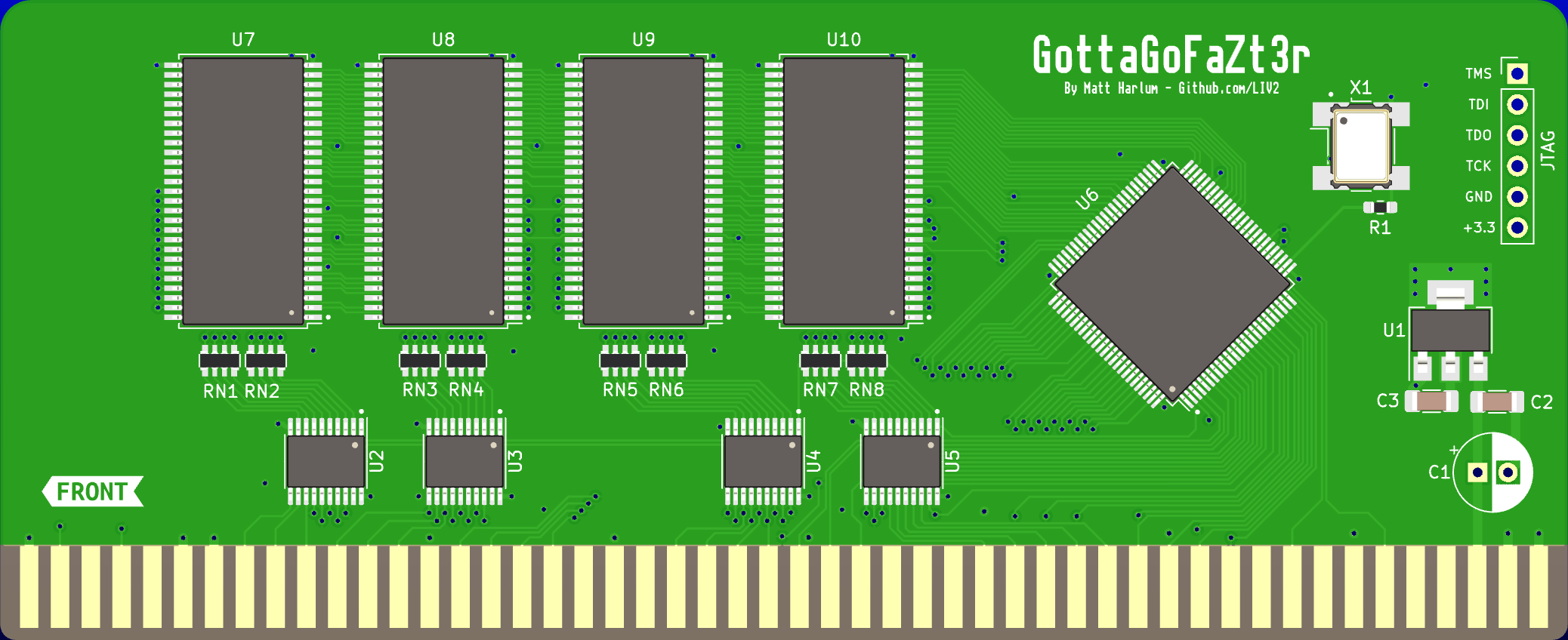

GottaGoFaZt3r
About the GottaGoFaZt3r PCB
GottaGoFaZt3r is an open source PCB design by LIV2, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 129.2 × 52.8 mm, with 67 components from 14 distinct parts.
Other key parts include the LM1117-3.3, 74LVCR2245, XC95144XL-TQ100, AS4C32M16SC and locked. By type, the board carries 44 capacitors, 10 ICs, 10 resistors, 2 connectors and 1 crystal.
It belongs with the retro computing designs in this gallery.
From the project
Zorro III Fast RAM for Amiga 3000/4000
256MB Autoconfig Fast RAM for the Amiga 3000/4000
Layer sequence: |Layer|File| |-|-| |L1|GottaGoFaSDZ3-FCu.gbr| |L2|GottaGoFaSDZ3-In1Cu.gbr| |L3|GottaGoFaSDZ3-In2Cu.gbr| |L4|GottaGoFaSDZ3-BCu.gbr|
__*__ I cannot provide technical support for RAM chips other than those explicitly listed in the BOM, others may work but you're on your own
This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].
Main components on the GottaGoFaZt3r
GottaGoFaZt3r bill of materials (BOM)
67 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 4 | 74LVCR2245 | TSSOP-20_4.4x6.5mm_P0.65mm | U2, U3, U4, U5 |
| 1 | XC95144XL-TQ100 | TQFP-100_14x14mm_P0.5mm | U6 |
| 3 | AS4C32M16SC | TSOP-II-54_22.2x10.16mm_P0.8mm | U7, U9, U10 |
| 1 | locked | TSOP-II-54_22.2x10.16mm_P0.8mm | U8 |
| 1 | 66MHz | Oscillator_SMD_Abracon_ASV-4Pin_7.0x5.1mm_HandSoldering | X1 |
| 1 | Zorro3 | Zorro3 | CN1 |
| 1 | Conn_01x06_Male | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C1 |
| 3 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C3, C16 |
| 40 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5, C6, C7, C8, C9, C10, C11 +32 |
| 1 | 33 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 8 | 33 | R_Array_Convex_4x0603 | RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 |
GottaGoFaZt3r design files
The KiCad project lives in the LIV2/GottaGoFaZt3r repository on GitHub; these links point at the commit this page was built from.
- LayoutKicad/GottaGoFaSDZ3.kicad_pcb
- SchematicKicad/GottaGoFaSDZ3.kicad_sch
GottaGoFaZt3r: common questions
How big is the GottaGoFaZt3r PCB?
The GottaGoFaZt3r measures 129.2 × 52.8 mm, has 4 copper layers and is 4.69 mm thick.
How many components are on the GottaGoFaZt3r?
67 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the GottaGoFaZt3r design files?
From the LIV2/GottaGoFaZt3r repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the GottaGoFaZt3r design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which LIV2 chose for the repository.
