RIPPLE-IDE
About the RIPPLE-IDE PCB
RIPPLE-IDE is an open source PCB design by LIV2, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 129.2 × 50 mm, with 48 components from 22 distinct parts.
Other key parts include the LM1117-3.3, SST39SF010, XC9572XL-VQ64 and 74HCT245. By type, the board carries 18 resistors, 12 capacitors, 7 connectors, 6 ICs, 3 diodes and 1 transistor.
From the project

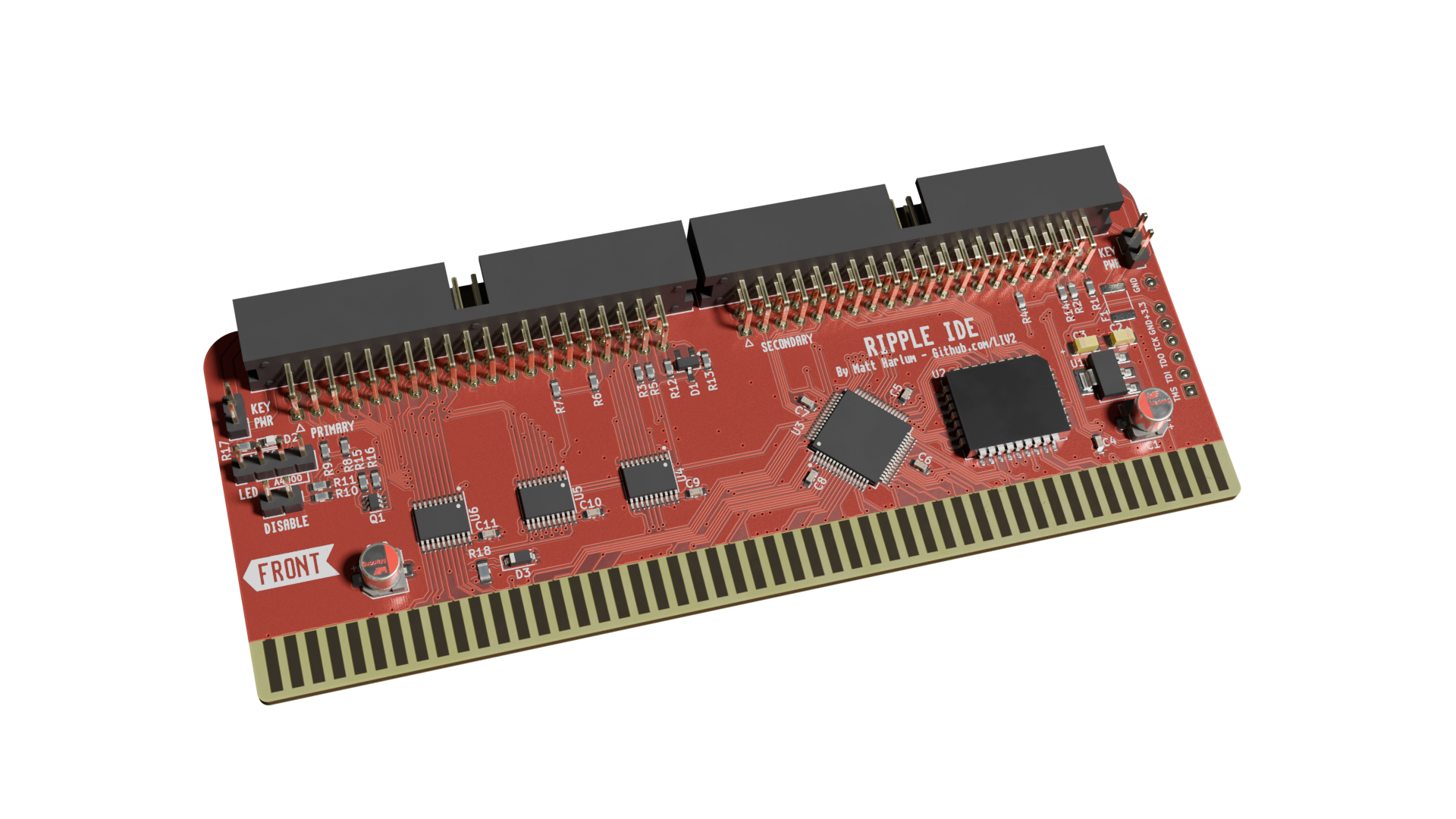

Zorro 2 IDE Interface for Amiga 2000/3000/4000
Zorro 2 IDE Interface for Amiga 2000/3000/4000
For more information on these features please see the lide.device readme
I recommend ordering from JLCPCB as this board was designed within their 2-layer specifications
BOM and Placement files for JLCPCBs assembly service are provided and can be found inside the Gerbers folder and the Gerbers.zip file found under Releases
Main components on the RIPPLE-IDE
RIPPLE-IDE bill of materials (BOM)
48 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | SST39SF010 | PLCC-32_11.4x14.0mm_P1.27mm | U2 |
| 1 | XC9572XL-VQ64 | TQFP-64_10x10mm_P0.5mm | U3 |
| 3 | 74HCT245 | TSSOP-20_4.4x6.5mm_P0.65mm | U4, U5, U6 |
| 1 | BC857BS | SOT-363_SC-70-6 | Q1 |
| 1 | JTAG | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 2 | CONN_01X02_MALE Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J2, J7 |
| 2 | CONN_02X20_ODD_EVEN Conn_02x20_Odd_Even | IDC-Header_2x20_P2.54mm_Horizontal | J3, J4 |
| 1 | CONN_01X02_MALE Disable | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | LED | PinHeader_1x04_P2.54mm_Vertical | J6 |
| 1 | C210834 Polyfuse_Small | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1 |
| 1 | BAT54A | SOT-23_Handsoldering | D1 |
| 1 | C497932 ACT | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2 |
| 1 | BAT42W | D_SOD-123 | D3 |
| 2 | 47U 47u | CP_Elec_5x5.3 | C1, C12 |
| 2 | 10U 10u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C3 |
| 8 | 0.1U 0.1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5, C6, C7, C8, C9, C10, C11 |
| 9 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R4, R6, R7, R8, R9, R11, R12 +1 |
| 4 | 68 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R5, R14 |
| 2 | 150 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R17 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R15, R16 |
| 1 | 68 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R18 |
RIPPLE-IDE design files
The KiCad project lives in the LIV2/RIPPLE-IDE repository on GitHub; these links point at the commit this page was built from.
- LayoutKicad/RIPPLE.kicad_pcb
- SchematicKicad/RIPPLE.kicad_sch
- BOMGerbers/RIPPLE_bom_jlc.csv
RIPPLE-IDE: common questions
How big is the RIPPLE-IDE PCB?
The RIPPLE-IDE measures 129.2 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RIPPLE-IDE?
48 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RIPPLE-IDE design files?
From the LIV2/RIPPLE-IDE repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RIPPLE-IDE design in my own project?
Yes, under the terms of its GPL-2.0 license, which LIV2 chose for the repository.
