LJBoxx·Baguette-esc·hardware/gerber/poW/power.kicad_pcb

Power PCB layout, top view — open source board by LJBoxx
Simulate this board

About the Power PCB

Power is an open source PCB design by LJBoxx, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 62.1 × 61.4 mm, with 45 components from 10 distinct parts.

By type, the board carries 16 capacitors, 11 resistors, 6 transistors, 6 connectors and 6 diodes.

It belongs with the robotics & motion, iot & wireless and sensors designs in this gallery.

From the project

ESC (electronic speed controller) based on VESC6 schematic

BaguetteESC is an open-source, compact Electronic Speed Controller (ESC) inspired by the VESC platform. It is designed to push boundaries in high-voltage motor control and explore innovative hardware concepts. ⚠️ Please note: this project is in a very early stage and has not yet been tested. Use at your own risk.

⚠️ THIS PROJECT IS PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. I AM NOT RESPONSIBLE FOR ANY DAMAGE TO PERSONS, PROPERTY, OR EQUIPMENT RESULTING FROM THE USE, MISUSE, OR MALFUNCTION OF THIS HARDWARE OR SOFTWARE.

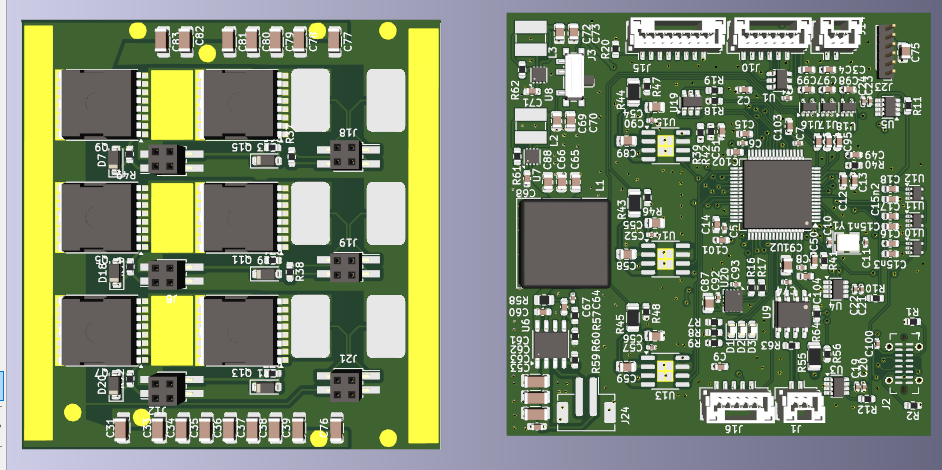

Power, from the project README
From the project README

Power bill of materials (BOM)

45 components, 10 distinct parts.

QtyPartRefs
6
NCEP028N12LL
Q5, Q7, Q9, Q11, Q13, Q15
2
Conn_01x03_Pin
J5, J8
1
Conn_01x0_Pin
J12
1
Conn_01x04_Pin
J18
2
Conn_01x02_Pin
J19, J21
6
1N4148W
D7, D13, D18, D19, D20, D21
16
C
C31, C33, C34, C35, C36, C37, C38, C39 +8
3
r
R13, R14, R15
2
10k_NTC
R37, R38
6
2r
R49, R65, R70, R71, R72, R73

Power design files

The KiCad project lives in the LJBoxx/Baguette-esc repository on GitHub; these links point at the commit this page was built from.

Power: common questions

How big is the Power PCB?

The Power measures 62.1 × 61.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Power?

45 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Power design files?

From the LJBoxx/Baguette-esc repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Power design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which LJBoxx chose for the repository.
