EspFanPwm PCB layout, top view — open source ESP8266 board by lsr1

About the EspFanPwm PCB

EspFanPwm is an open source ESP8266 PCB design by lsr1, published on GitHub. It is a 2-layer board measuring 63 × 28 mm, with 13 components from 9 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. By type, the board carries 6 connectors, 3 resistors and 1 capacitor.

It belongs with the iot & wireless designs in this gallery.

From the project

control speed of one to three fans via PWM (9BMB12P2K01) and get the tacho signal, using a D1 mini with ESPHome via Home Assistant

control speed of one to three fans via PWM (9BMB12P2K01) and get the tacho signal, using a D1 mini with ESPHome via Home Assistant.

standard 1 row 2.54mm male pinheaders (optional) 1 x capacitor (>= 12V, THT radial D5.0mm / P2.00mm)

* You can't solder the MP1584 directly on the board even if you don't care about the mouting-hole: The holes for the pins are too small (only the female pin-headers fit, but no the male pinheaders directly). This might be changed on a v2 of the board.

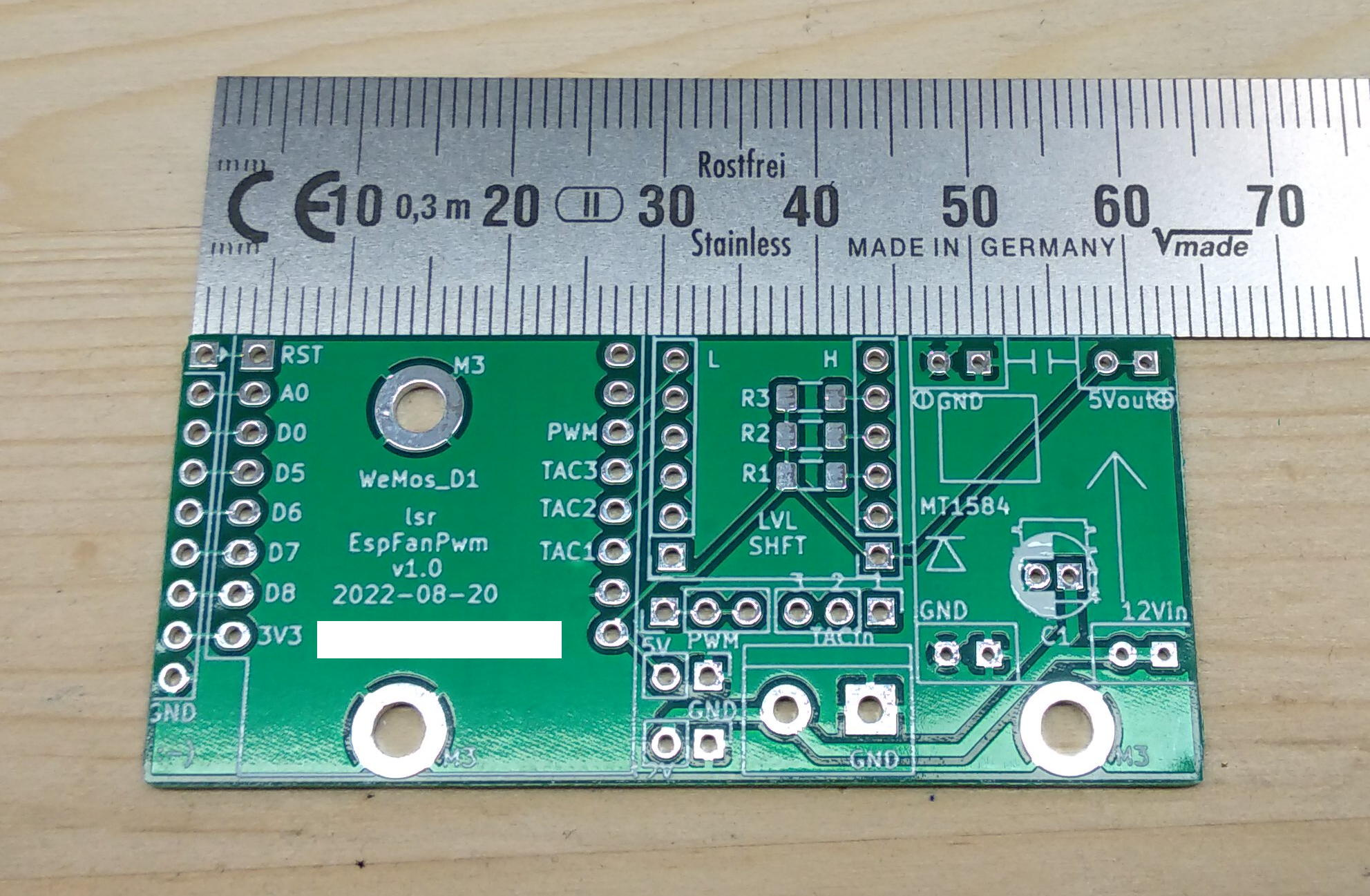

EspFanPwm, from the project README
From the project README

EspFanPwm bill of materials (BOM)

13 components, 9 distinct parts.
