HarnessBox PCB layout, top view — open source board by lukasloetkolben

About the HarnessBox PCB

HarnessBox is an open source PCB design by lukasloetkolben, published on GitHub under the MIT license. It is a 2-layer board measuring 30.5 × 30.4 mm, with 13 components from 11 distinct parts.

Other key parts include the RJ45-DB-101PWB and 105450-0101. By type, the board carries 6 resistors, 2 ICs, 1 transistor, 1 connector, 1 relay and 1 diode.

From the project

Note: the device has been tested and works perfectly!

Note: the device has been tested and works perfectly!

If you have any questions contact me on Discord: loetkolben#2962

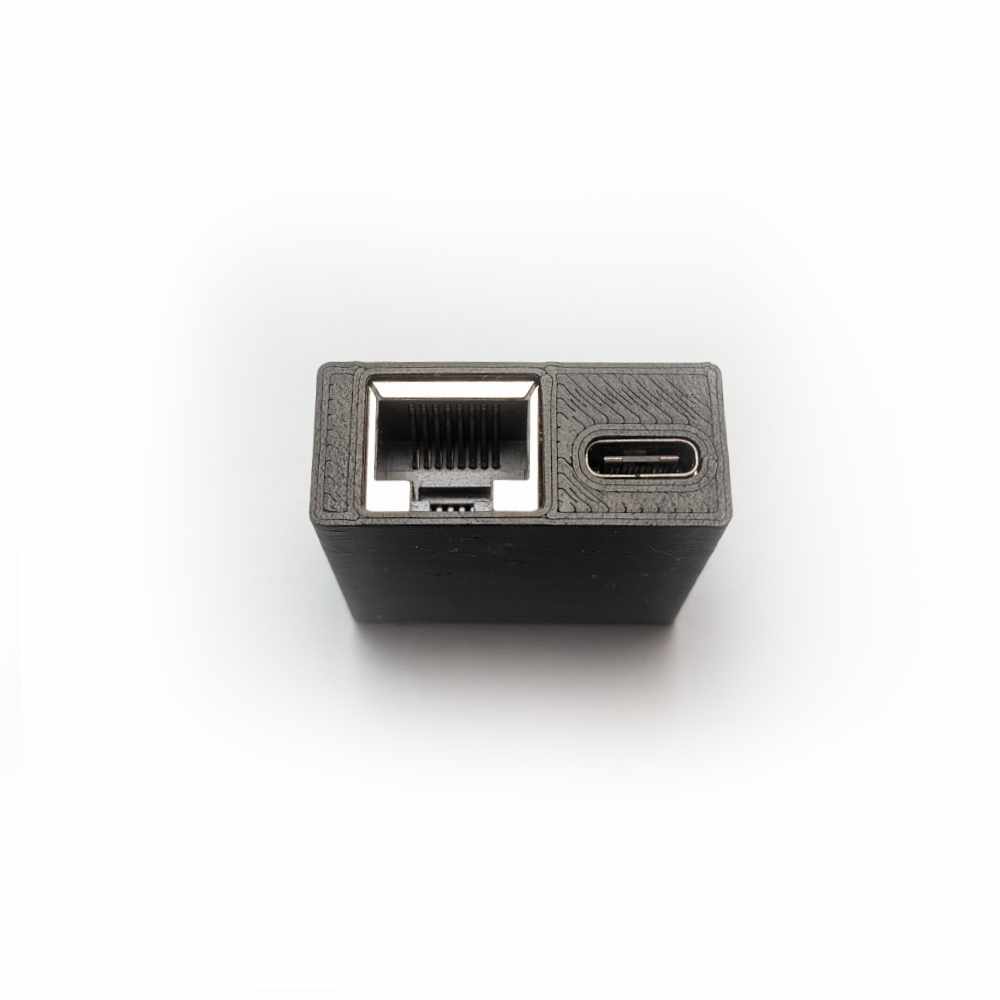

HarnessBox, from the project README
From the project README

Main components on the HarnessBox

RJ45-DB-101PWB105450-0101

HarnessBox bill of materials (BOM)

13 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RJ45-DB-101PWB
U1
1
105450-0101
U2
1
DDTC114ECA-7-F
Q1
1
5018762640
J1
1
FSV20100V
CR1
1
G6K-2G-Y DC5
K1
1
BAV21W_RHG
D1
1
1206W4F1200T5E
120R
UNI-ROYAL(厚声)
R1
1
1K
R4
2
10R
R5, R6
2
120R
R7, R8

HarnessBox design files

The KiCad project lives in the lukasloetkolben/OpenpilotHardware repository on GitHub; these links point at the commit this page was built from.

HarnessBox: common questions

How big is the HarnessBox PCB?

The HarnessBox measures 30.5 × 30.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HarnessBox?

13 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HarnessBox design files?

From the lukasloetkolben/OpenpilotHardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HarnessBox design in my own project?

Yes, under the terms of its MIT license, which lukasloetkolben chose for the repository.
