BlackPanda PCB layout, top view — open source STM32 board by lukasloetkolben

About the BlackPanda PCB

BlackPanda is an open source STM32 PCB design by lukasloetkolben, published on GitHub under the MIT license. It is a 4-layer board measuring 47.5 × 41.7 mm, with 86 components from 47 distinct parts.

Its main chip is the STM32F413RGTx, from the STM32 family. Other key parts include the AP22615AWU-7, SiP32431DR3, 10_0_QHHTZB6_3, NEO-M8M and FM-B1921RGBA-SH. By type, the board carries 33 capacitors, 20 resistors, 12 ICs, 10 diodes, 4 transistors and 3 inductors.

From the project

The device has been tested and works so far without problems.

The device has been tested and works so far without problems.

If you have any questions contact me on Discord: loetkolben#2962

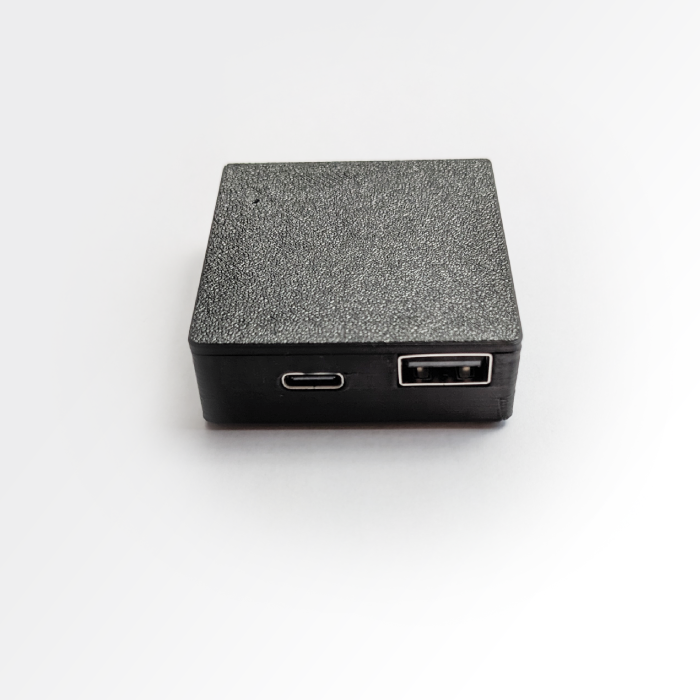

BlackPanda, from the project README
From the project README

Main components on the BlackPanda

AP22615AWU-7SiP32431DR310_0_QHHTZB6_3NEO-M8MFM-B1921RGBA-SHTPS5450DDARSTM32F413RGTxTJA1042TK-3XL1509-3.3

BlackPanda bill of materials (BOM)

86 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP22615AWU-7
U1
1
SiP32431DR3
U2
1
10_0_QHHTZB6_3
U3
1
NEO-M8M
U4
1
FM-B1921RGBA-SH
U5
1
TPS5450DDAR
U6
1
STM32F413RGTx
U7
4
TJA1042TK-3
U8, U9, U10, U11
1
XL1509-3.3
U12
2
DDTA143ECA-7-F P08
Q1, Q2
1
PDTC114EU
Q3
1
HY12P03C2
Q4
1
X322516MLB4SI
Y1
1
TYPE-C-31-M-04
P1
1
U.FL-R-SMT(10)
U.FL-R-SMT-1
ANT1
1
SW_Push
SW1
1
SMAJ16CA-13-F
D1
1
BAS40WS 43
D2
5
PESD2CAN,215
D5, D6, D7, D8, D9
1
BAS70H 115
D10
Show 27 more
QtyPartRefs
1
B320AE-13
D11
1
SM540C
D12
1
27nH
L1
1
47uH 2A - SMMS0650-470M
L3
1
15uH
L4
13
100NF
C1, C2, C5, C11, C14, C26, C27, C28 +5
8
47uF
C3, C10, C16, C17, C18, C19, C20, C21
4
2.2uF
C4, C6, C7, C12
1
10uF
C8
1
100nF
C9
1
10NF
C15
2
10pF
C23, C24
1
4.7uF
C25
1
0.1uF
C34
1
10nF (LOW ESR)
C37
1
1206W4F1200T5E
1K
UNI-ROYAL(厚声)
R1
1
0603WAF1000T5E
1K
UNI-ROYAL(厚声)
R2
1
1206W4F1200T5E
10K
UNI-ROYAL(厚声)
R3
1
10K (1%)
R5
1
3.16K (1%)
R6
8
10K
R9, R14, R15, R16, R22, R23, R24, R26
1
10R
R10
1
180R
R17
1
110R
R18
1
100R
R19
2
22R
R20, R21
1
2.4K
R27

BlackPanda design files

The KiCad project lives in the lukasloetkolben/OpenpilotHardware repository on GitHub; these links point at the commit this page was built from.

BlackPanda: common questions

What microcontroller does the BlackPanda use?

The BlackPanda is built around the STM32F413RGTx, from the STM32 family.

How big is the BlackPanda PCB?

The BlackPanda measures 47.5 × 41.7 mm, has 4 copper layers and is 1.59 mm thick.

How many components are on the BlackPanda?

86 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BlackPanda design files?

From the lukasloetkolben/OpenpilotHardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BlackPanda design in my own project?

Yes, under the terms of its MIT license, which lukasloetkolben chose for the repository.

Can I test firmware for the BlackPanda without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
