About the Lucenox PCB

Lucenox is an open source RP2040/RP2350 PCB design by lumentae, published on GitHub under the MIT license. It is a 4-layer board measuring 348.5 × 118 mm, with 253 components from 87 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 84 LEDs, 84 diodes and 1 module.

It belongs with the keyboards designs in this gallery.

From the project

A keyboard for Hackclub's Highway

Lucenox is a custom mechanical keyboard with hotswappable switches which was inspired by the QWERTZ layout. It also features per key RGB with QMK!

I made the project just for fun and to see if I could build my own keyboard, because I wanted something that felt exactly like my current keyboard, but in a smaller size. Also I currently use a membrane keyboard and I thought that highway could give me an opportunity to learn how mechanical keyboards work and switch to a mechanical one.

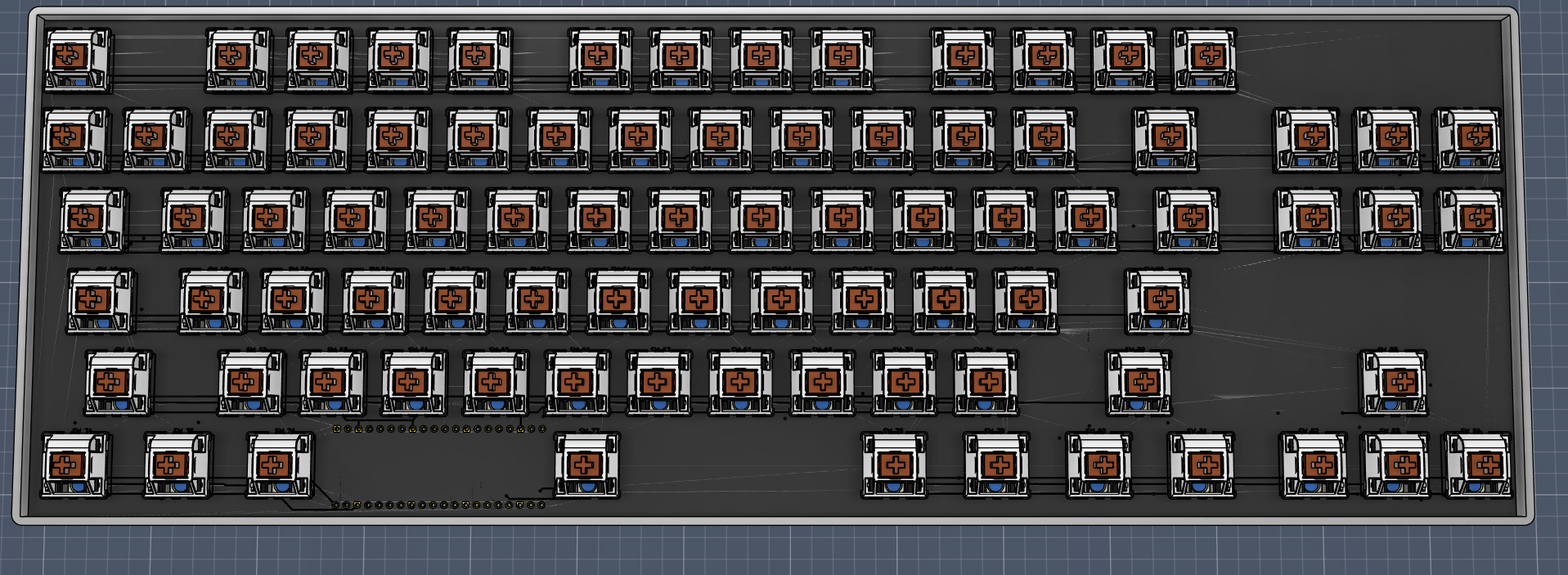

Lucenox, from the project README — From the project README

Main components on the Lucenox

RaspberryPi_Pico

Lucenox bill of materials (BOM)

253 components, 87 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RaspberryPi_Pico	RaspberryPi_Pico_Common_THT	A1
1	ESC	SW_Hotswap_Kailh_MX_1.00u	SW_1
1	F1	SW_Hotswap_Kailh_MX_1.00u	SW_2
1	F2	SW_Hotswap_Kailh_MX_1.00u	SW_3
1	F3	SW_Hotswap_Kailh_MX_1.00u	SW_4
1	F4	SW_Hotswap_Kailh_MX_1.00u	SW_5
1	F5	SW_Hotswap_Kailh_MX_1.00u	SW_6
1	F6	SW_Hotswap_Kailh_MX_1.00u	SW_7
1	F7	SW_Hotswap_Kailh_MX_1.00u	SW_8
1	F8	SW_Hotswap_Kailh_MX_1.00u	SW_9
1	F9	SW_Hotswap_Kailh_MX_1.00u	SW_10
1	F10	SW_Hotswap_Kailh_MX_1.00u	SW_11
1	F11	SW_Hotswap_Kailh_MX_1.00u	SW_12
1	F12	SW_Hotswap_Kailh_MX_1.00u	SW_13
1	Caret	SW_Hotswap_Kailh_MX_1.00u	SW_14
1	Num1	SW_Hotswap_Kailh_MX_1.00u	SW_15
1	Num2	SW_Hotswap_Kailh_MX_1.00u	SW_16
1	Num3	SW_Hotswap_Kailh_MX_1.00u	SW_17
1	Num4	SW_Hotswap_Kailh_MX_1.00u	SW_18
1	Num5	SW_Hotswap_Kailh_MX_1.00u	SW_19

Show 67 more

Qty	Part	Footprint	Refs
1	Num6	SW_Hotswap_Kailh_MX_1.00u	SW_20
1	Num7	SW_Hotswap_Kailh_MX_1.00u	SW_21
1	Num8	SW_Hotswap_Kailh_MX_1.00u	SW_22
1	Num9	SW_Hotswap_Kailh_MX_1.00u	SW_23
1	Num0	SW_Hotswap_Kailh_MX_1.00u	SW_24
1	Sz	SW_Hotswap_Kailh_MX_1.00u	SW_25
1	Accent	SW_Hotswap_Kailh_MX_1.00u	SW_26
1	Backspace	SW_Hotswap_Kailh_MX_2.00u	SW_27
1	Paste	SW_Hotswap_Kailh_MX_1.00u	SW_28
1	Pos1	SW_Hotswap_Kailh_MX_1.00u	SW_29
1	PageUp	SW_Hotswap_Kailh_MX_1.00u	SW_30
1	Tab	SW_Hotswap_Kailh_MX_1.50u	SW_31
1	Q	SW_Hotswap_Kailh_MX_1.00u	SW_32
1	W	SW_Hotswap_Kailh_MX_1.00u	SW_33
1	E	SW_Hotswap_Kailh_MX_1.00u	SW_34
1	R	SW_Hotswap_Kailh_MX_1.00u	SW_35
1	T	SW_Hotswap_Kailh_MX_1.00u	SW_36
1	Z	SW_Hotswap_Kailh_MX_1.00u	SW_37
1	U	SW_Hotswap_Kailh_MX_1.00u	SW_38
1	I	SW_Hotswap_Kailh_MX_1.00u	SW_39
1	O	SW_Hotswap_Kailh_MX_1.00u	SW_40
1	P	SW_Hotswap_Kailh_MX_1.00u	SW_41
1	Ü	SW_Hotswap_Kailh_MX_1.00u	SW_42
1	Plus	SW_Hotswap_Kailh_MX_1.00u	SW_43
1	Hashtag	SW_Hotswap_Kailh_MX_1.50u	SW_44
1	Del	SW_Hotswap_Kailh_MX_1.00u	SW_45
1	End	SW_Hotswap_Kailh_MX_1.00u	SW_46
1	PageDown	SW_Hotswap_Kailh_MX_1.00u	SW_47
1	Caps	SW_Hotswap_Kailh_MX_1.75u	SW_48
1	A	SW_Hotswap_Kailh_MX_1.00u	SW_49
1	S	SW_Hotswap_Kailh_MX_1.00u	SW_50
1	D	SW_Hotswap_Kailh_MX_1.00u	SW_51
1	F	SW_Hotswap_Kailh_MX_1.00u	SW_52
1	G	SW_Hotswap_Kailh_MX_1.00u	SW_53
1	H	SW_Hotswap_Kailh_MX_1.00u	SW_54
1	J	SW_Hotswap_Kailh_MX_1.00u	SW_55
1	K	SW_Hotswap_Kailh_MX_1.00u	SW_56
1	L	SW_Hotswap_Kailh_MX_1.00u	SW_57
1	Ö	SW_Hotswap_Kailh_MX_1.00u	SW_58
1	Ä	SW_Hotswap_Kailh_MX_1.00u	SW_59
1	Enter	SW_Hotswap_Kailh_MX_2.25u	SW_60
1	Shift	SW_Hotswap_Kailh_MX_2.25u	SW_61
1	Y	SW_Hotswap_Kailh_MX_1.00u	SW_62
1	X	SW_Hotswap_Kailh_MX_1.00u	SW_63
1	C	SW_Hotswap_Kailh_MX_1.00u	SW_64
1	V	SW_Hotswap_Kailh_MX_1.00u	SW_65
1	B	SW_Hotswap_Kailh_MX_1.00u	SW_66
1	N	SW_Hotswap_Kailh_MX_1.00u	SW_67
1	M	SW_Hotswap_Kailh_MX_1.00u	SW_68
1	Comma	SW_Hotswap_Kailh_MX_1.00u	SW_69
1	Period	SW_Hotswap_Kailh_MX_1.00u	SW_70
1	Minus	SW_Hotswap_Kailh_MX_1.00u	SW_71
1	RShift	SW_Hotswap_Kailh_MX_2.75u	SW_72
1	Up	SW_Hotswap_Kailh_MX_1.00u	SW_73
1	Strg	SW_Hotswap_Kailh_MX_1.25u	SW_74
1	Win	SW_Hotswap_Kailh_MX_1.25u	SW_75
1	Alt	SW_Hotswap_Kailh_MX_1.25u	SW_76
1	Space	SW_Hotswap_Kailh_MX_6.25u	SW_77
1	AltGr	SW_Hotswap_Kailh_MX_1.25u	SW_78
1	Mod	SW_Hotswap_Kailh_MX_1.25u	SW_79
1	RWin	SW_Hotswap_Kailh_MX_1.25u	SW_80
1	RStrg	SW_Hotswap_Kailh_MX_1.25u	SW_81
1	Left	SW_Hotswap_Kailh_MX_1.00u	SW_82
1	Down	SW_Hotswap_Kailh_MX_1.00u	SW_83
1	Right	SW_Hotswap_Kailh_MX_1.00u	SW_84
84	SK6812MINI	LED_SK6812MINI_PLCC4_3.5x3.5mm_P1.75mm	LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +76
84	D	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +76

Lucenox design files

The KiCad project lives in the lumentae/lucenox repository on GitHub; these links point at the commit this page was built from.

Lucenox: common questions

What microcontroller does the Lucenox use?

The Lucenox is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Lucenox PCB?

The Lucenox measures 348.5 × 118 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Lucenox?

253 components, from 87 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lucenox design files?

From the lumentae/lucenox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Lucenox design in my own project?

Yes, under the terms of its MIT license, which lumentae chose for the repository.
