CC1200 HAT-hw
About the CC1200 HAT-hw
CC1200 HAT-hw is an open source STM32 PCB design by M17-Project, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 65.1 × 30.2 mm, with 75 components from 44 distinct parts.
Its main chip is the STM32F411CEU6, from the STM32 family. Other key parts include the CC1200RHBR, TLV70233PDBVR and USBLC6-2SC6. By type, the board carries 34 capacitors, 17 resistors, 9 inductors, 6 diodes, 4 ICs and 2 crystals.
It belongs with the dev boards & breakouts designs in this gallery.

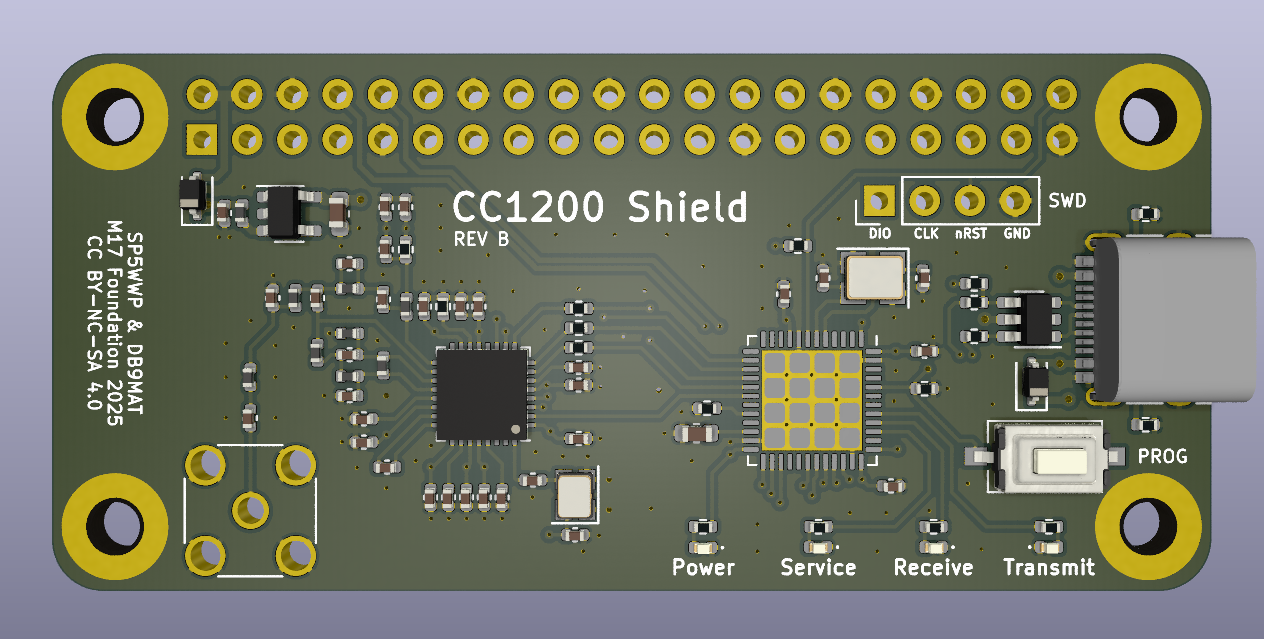

From the project
CC1200 HAT - RF board
Main components on the CC1200 HAT-hw
CC1200 HAT-hw bill of materials (BOM)
75 components, 44 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CC1200RHBR CC1200 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U1 |
| 1 | TLV70233PDBVR TLV70233_SOT23-5 | SOT-23-5 | U3 |
| 1 | USBLC6-2SC6 USBLC6-2 | SOT-23-6 | U4 |
| 1 | STM32F411CEU6 STM32F411CEUx | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U6 |
| 1 | FT2MNTUM-40.0-T1 40MHz | Oscillator_SMD_SeikoEpson_SG210-4Pin_2.5x2.0mm | X1 |
| 1 | 669-EB2532YA08-25T 25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | RF2-04A-T-00-50-G SMA | SMA_Wurth_60312002114503_Vertical | P3 |
| 1 | C165948 USB_C_Plug_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | P5 |
| 1 | 611-PTS636SM43JSMTRL PROG | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW1 |
| 1 | APHHS1005QBC/D blue Kingbright | LED_0402_1005Metric | D1 |
| 1 | APHHS1005CGCK green Kingbright | LED_0402_1005Metric | D2 |
| 1 | APG1005SYC-T yellow Kingbright | LED_0402_1005Metric | D3 |
| 1 | APHHS1005SURCK red | LED_0402_1005Metric | D4 |
| 2 | BAT60AE6327XT BAT60A | D_SOD-323 | D5, D6 |
| 2 | LQG15HZ15NJ02D 15n | L_0402_1005Metric | L1, L9 |
| 1 | LQG15WZ43NJ02D 43n | L_0402_1005Metric | L2 |
| 1 | LQG15HZ22NH02D 22n | L_0402_1005Metric | L3 |
| 2 | LCCI0402J56NGTAR 56n | L_0402_1005Metric | L4, L7 |
| 2 | LQG15HN27NJ02D 27n | L_0402_1005Metric | L6, L8 |
| 1 | PLEA67BCA4R7M-1PT00 4u7 | L_0402_1005Metric | L10 |
Show 24 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GCM1555C1H2R2BA16J 2p2 | C_0402_1005Metric | C1 |
| 1 | GRM1555C2A390JA1D 39p | C_0402_1005Metric | C2 |
| 3 | GJM1555C1H5R1DB1D 5p1 | C_0402_1005Metric | C3, C8, C9 |
| 1 | GCM1555C1H6R2BA6D 6p2 | C_0402_1005Metric | C4 |
| 1 | 04025A560JAT4A 56p | C_0402_1005Metric | C5 |
| 2 | 0402B103K6R3CT 10n | C_0402_1005Metric | C6, C12 |
| 1 | CL05C101JB5NNNC 100p | C_0402_1005Metric | C7 |
| 12 | GCM155L8EH473KE7D 47n | C_0402_1005Metric | C10, C11, C15, C17, C18, C19, C20, C22 +4 |
| 1 | CGA2B3X5R1A224M050BB 220n | C_0402_1005Metric | C13 |
| 1 | 77-81-GRT1555C1E102JA2J 1n | C_0402_1005Metric | C14 |
| 1 | 885012205026 1n5 | C_0402_1005Metric | C16 |
| 2 | C0402C120J5GACTU 12p Murata Electronics | C_0402_1005Metric | C21, C23 |
| 4 | VJ0402V104ZXJCW1BC 100n | C_0402_1005Metric | C24, C25, C26, C35 |
| 1 | GRT1555C1E102JA2J 1n | C_0402_1005Metric | C27 |
| 1 | CL10A106KQ8NNNC 10u | C_0603_1608Metric | C29 |
| 1 | CL10A225KO8NNWC 2u2 | C_0603_1608Metric | C31 |
| 3 | RC0402JR-1010KL 10k | R_0402_1005Metric | R1, R7, R9 |
| 1 | ERJ-2GEJ180X 18 | R_0402_1005Metric | R3 |
| 3 | CR0402AJW-101GLF 100 | R_0402_1005Metric | R4, R5, R6 |
| 4 | ERJ-PA2D1001X 1k | R_0402_1005Metric | R11, R12, R13, R18 |
| 1 | RK73B1ETTP563J 56k | R_0402_1005Metric | R14 |
| 2 | RC0402FR-075K1L 5k1 Vishay | R_0402_1005Metric | R22, R23 |
| 1 | AC0402JR-7W1K5L 1k5 | R_0402_1005Metric | R24 |
| 2 | CRCW040210K0FKED 27 Vishay | R_0402_1005Metric | R25, R26 |
CC1200 HAT-hw design files
The KiCad project lives in the M17-Project/CC1200_HAT-hw repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD/CC1200_Hat.kicad_pcb
- SchematicKiCAD/CC1200_Hat.kicad_sch
CC1200 HAT-hw: common questions
What microcontroller does the CC1200 HAT-hw use?
The CC1200 HAT-hw is built around the STM32F411CEU6, from the STM32 family.
How big is the CC1200 HAT-hw?
The CC1200 HAT-hw measures 65.1 × 30.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the CC1200 HAT-hw?
75 components, from 44 distinct parts. The full bill of materials is listed on this page.
Where can I download the CC1200 HAT-hw design files?
From the M17-Project/CC1200_HAT-hw repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CC1200 HAT-hw design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the CC1200 HAT-hw without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
