TLV767 LDO
About the TLV767 LDO PCB
TLV767 LDO is an open source PCB design by macnamtran, published on GitHub. It is a 2-layer board measuring 16.9 × 6.9 mm, with 10 components from 8 distinct parts.
Other key parts include the TLV76701DRVx. By type, the board carries 5 capacitors, 2 connectors, 2 resistors and 1 IC.
It belongs with the power & battery designs in this gallery.
From the project
LDO design using TLV767 chip

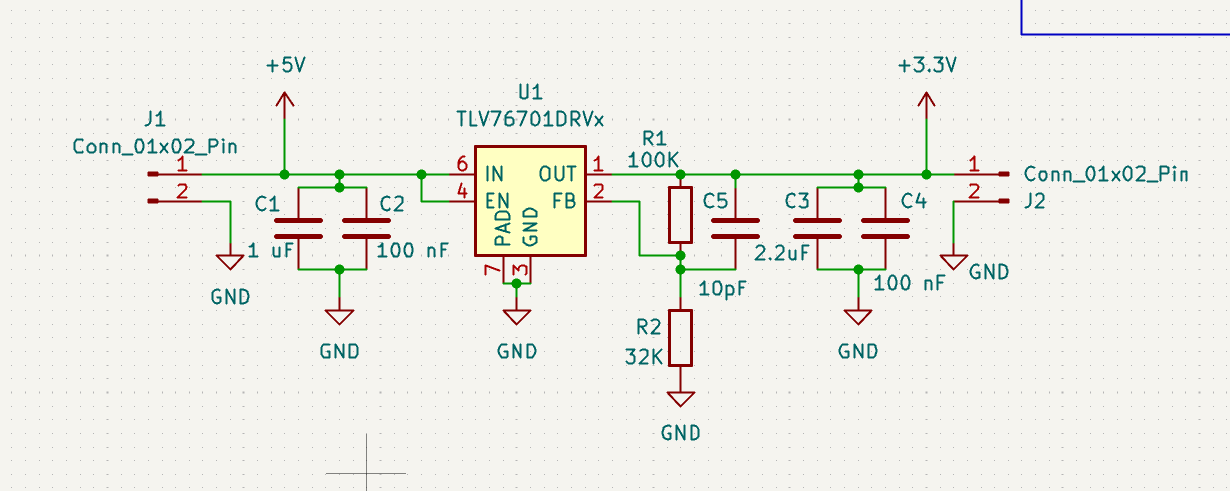

A KiCad power-supply board designed to convert a 5 V DC input to a nominal 3.3 V output using the adjustable TLV76701DRVx linear regulator with fixed feedback resistors.
The project covers datasheet-based component selection, feedback calculations, schematic capture, PCB layout, electrical/design-rule checking, and PSpice startup/load-transient evaluation.
Status: Schematic and PCB layout prepared; ERC and DRC reports are included. Nominal startup and load-transient simulations are complete; fabrication and bench testing are pending. Output current capability has not yet been established…
Main components on the TLV767 LDO
TLV767 LDO bill of materials (BOM)
10 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV76701DRVx | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_ThermalVias | U1 |
| 2 | Conn_01x02_Pin | PinSocket_1x02_P2.54mm_Vertical | J1, J2 |
| 1 | 1 uF | C_0603_1608Metric | C1 |
| 2 | 100 nF | C_0603_1608Metric | C2, C4 |
| 1 | 2.2uF | C_0603_1608Metric | C3 |
| 1 | 10pF | C_0603_1608Metric | C5 |
| 1 | 100K | R_0603_1608Metric | R1 |
| 1 | 32K | R_0603_1608Metric | R2 |
TLV767 LDO design files
The KiCad project lives in the macnamtran/TLV767_LDO repository on GitHub; these links point at the commit this page was built from.
- LayoutTLV767_LDO.kicad_pcb
- SchematicTLV767_LDO.kicad_sch
TLV767 LDO: common questions
How big is the TLV767 LDO PCB?
The TLV767 LDO measures 16.9 × 6.9 mm, has 2 copper layers and is 1.69 mm thick.
How many components are on the TLV767 LDO?
10 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the TLV767 LDO design files?
From the macnamtran/TLV767_LDO repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TLV767 LDO design in my own project?
The repository has no license, so all rights stay with macnamtran. Use it as a reference, and ask the author before reusing the design.
