Superlyra hs
Malevolti·SuperLyra·pcb/hotswap/superlyra-hs.kicad_pcb

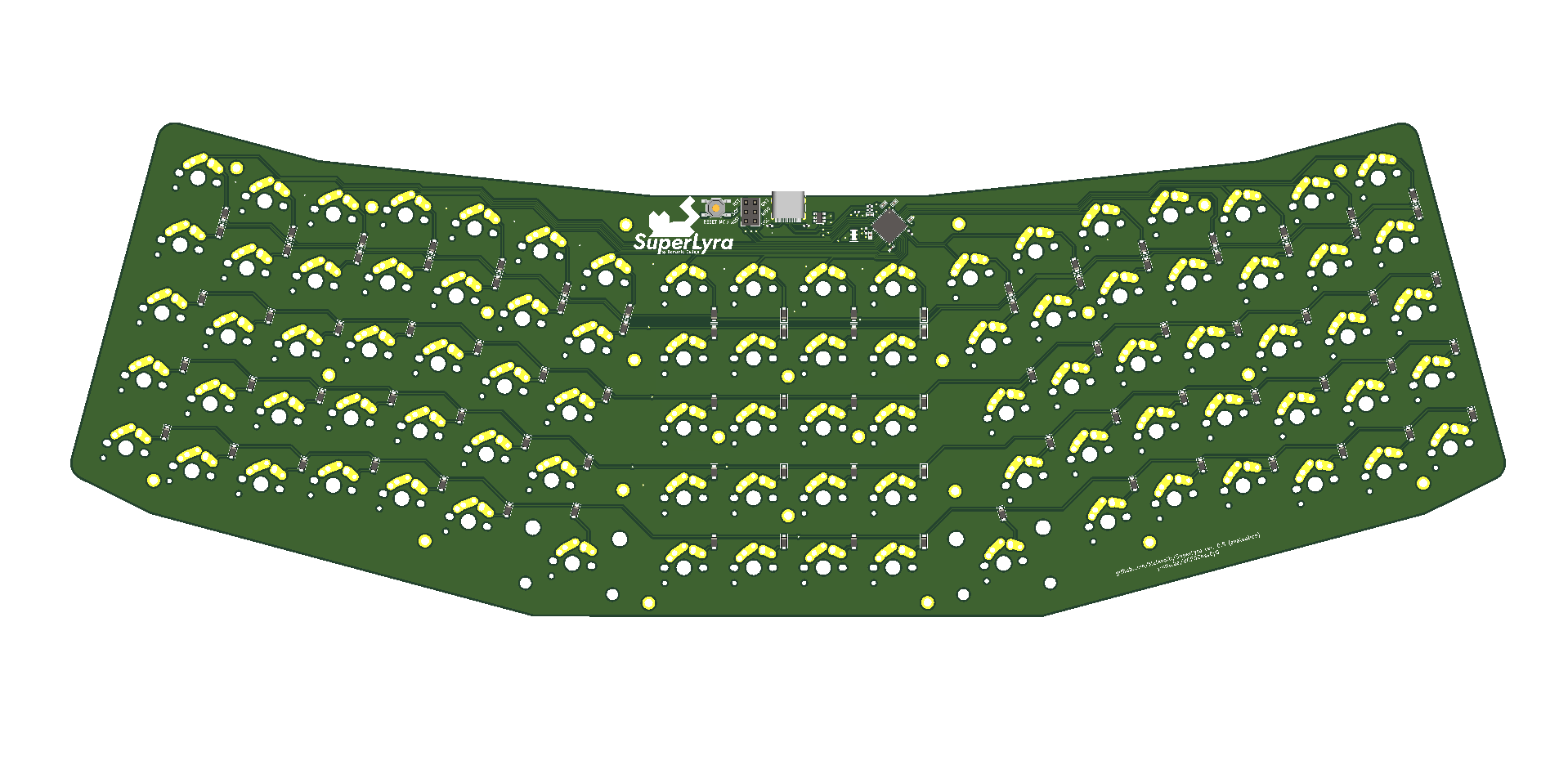

About the Superlyra hs PCB
Superlyra hs is an open source AVR/Arduino PCB design by Malevolti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 391.1 × 134.8 mm, with 199 components from 16 distinct parts.
Its main chip is the ATMEGA32U4-MU, from the AVR/Arduino family. Other key parts include the SRV05-4. By type, the board carries 90 switches, 90 diodes, 6 capacitors, 6 resistors, 2 ICs and 2 connectors.
It belongs with the keyboards designs in this gallery.
From the project
90 key ergo keyboard
A custom mechanical ergo keyboard by Dom.

Main components on the Superlyra hs
Superlyra hs bill of materials (BOM)
199 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA32U4-MU ATmega32U4-MU Microchip Tech | QFN-44-1EP_7x7mm_P0.5mm_EP5.2x5.2mm | U1 |
| 1 | SRV05-4 Tech Public | SOT-23-6 | U2 |
| 1 | CSTNE16M0V530000R0 16mhz Murata Electronics | Resonator_SMD_muRata_CSTxExxV-3Pin_3.0x1.1mm | Y1 |
| 1 | TYPE-C-31-M-12 USB_C_Receptacle_USB2.0 Korean Hroparts Elec | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | AVR-ISP-6 | PinSocket_2x03_P2.54mm_Vertical | J2 |
| 1 | BSMD0402L-020 Polyfuse_Small BHFUSE | Fuse_0402_1005Metric | F1 |
| 88 | SW_Push | MX_Socket_18mmSingleSided | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +80 |
| 2 | SW_Push | MX-2U-StabFlip | SW79, SW84 |
| 1 | TS-1187A-B-A-B SW_Push XKB Connectrivity | SW_SPST_TL3342 | SWRST1 |
| 90 | 1N4148W D_Small_ALT Changjiang Electronics Tech | D_SOD-123F | D1, D2, D3, D4, D5, D6, D7, D8 +82 |
| 1 | CC0402KRX5R5BB105 1u YAGEO | C_0402 | C1 |
| 4 | CC0402KRX5R7BB104 0.1u YAGEO | C_0402 | C2, C3, C4, C6 |
| 1 | GRM155C80J106ME11D 10u Murata Electronics | C_0402 | C5 |
| 2 | RC0402JR-0722RL 22 YAGEO | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1, R2 |
| 2 | RC0402JR-0710KL 10k YAGEO | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3, R4 |
| 2 | 0402WGF5101TCE 5.1k UNI_ROYAL | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R5, R6 |
Superlyra hs design files
The KiCad project lives in the Malevolti/SuperLyra repository on GitHub; these links point at the commit this page was built from.
Superlyra hs: common questions
What microcontroller does the Superlyra hs use?
The Superlyra hs is built around the ATMEGA32U4-MU, from the AVR/Arduino family.
How big is the Superlyra hs PCB?
The Superlyra hs measures 391.1 × 134.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Superlyra hs?
199 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Superlyra hs design files?
From the Malevolti/SuperLyra repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Superlyra hs design in my own project?
Yes, under the terms of its GPL-3.0 license, which Malevolti chose for the repository.
Can I test firmware for the Superlyra hs without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
