About the Daron necklace bottom board
Daron necklace bottom board is an open source PCB design by manhoosbilli1, published on GitHub. It is a 2-layer board measuring 20 × 20 mm, with 42 components from 29 distinct parts.
Other key parts include the MCP73831-2-MC, FH35C-11S-0.3SHW(50)_C7427016, TPS63070RNMR and DRV2605LDGS. By type, the board carries 16 capacitors, 12 resistors, 4 ICs, 4 diodes, 2 transistors and 2 connectors.
It belongs with the wearables and power & battery designs in this gallery.
From the project

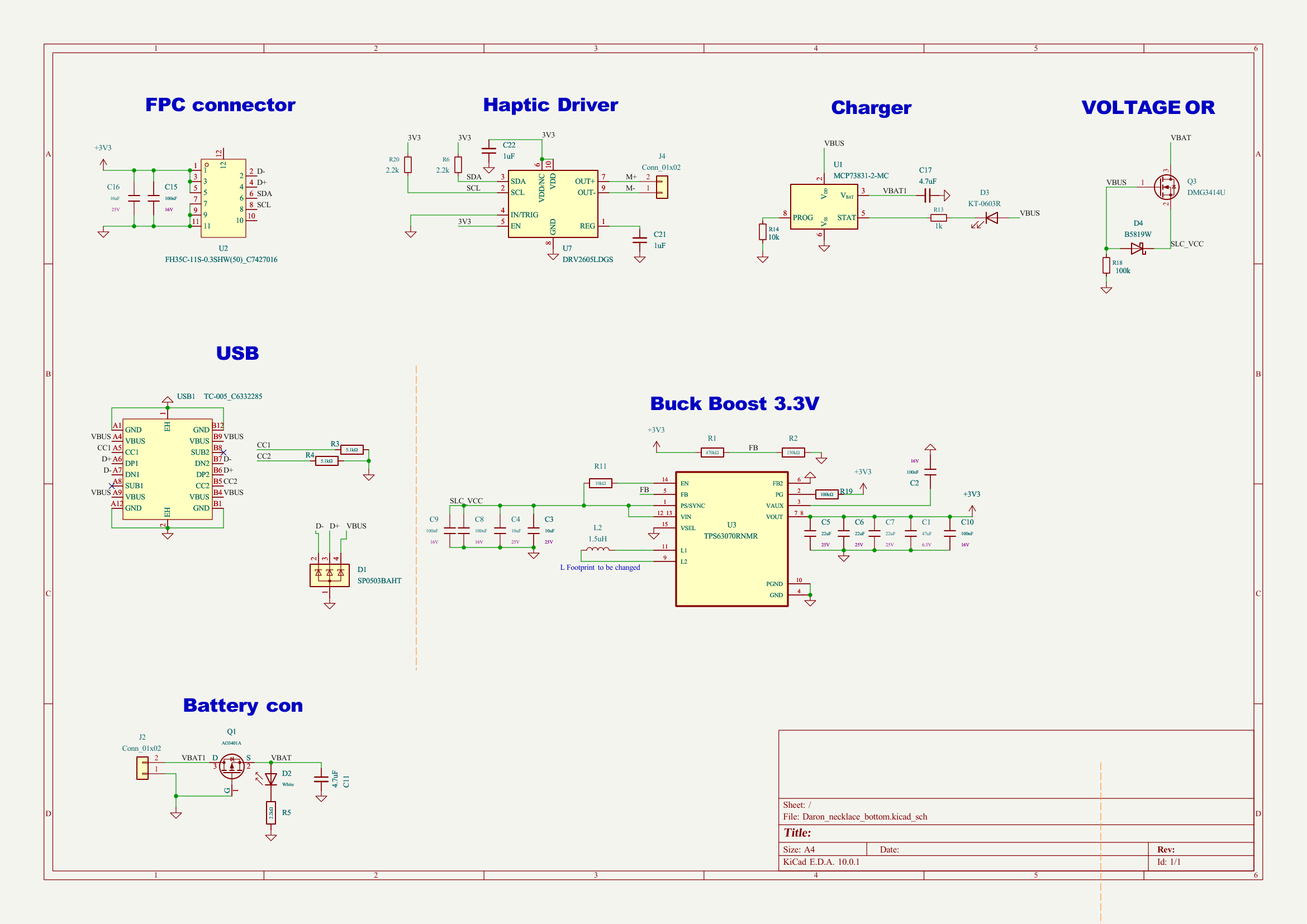

Bottom half of wearable LED necklace
Bottom half of wearable LED necklace - power, haptic, USB-C charging
- Status: Routed - Board size: 20 x 20 mm - Layers: 2 - Components: 42 - Key ICs: - U1: MCP73831-2-MC - U2: FH35C-11S-0.3SHW(50)_C7427016 - U3: TPS63070RNMR - U7: DRV2605LDGS
- TPS63070RNMR (U3) - buck-boost regulator (3.3 V output); handles wide LiPo voltage swing - DRV2605LDGS (U7) - haptic motor driver for tactile feedback - MCP73831-2-MC (U1) - single-cell LiPo charger - AO3401A (Q1) - P-channel MOSFET for power switching / load enable - DMG3414U (Q3) - N-channel MOSFET (companion to Q1 for full PowerPath) -…

Main components on the Daron necklace bottom board
Daron necklace bottom board bill of materials (BOM)
42 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP73831-2-MC | DFN-8-1EP_3x2mm_P0.5mm_EP1.7x1.4mm | U1 |
| 1 | FH35C-11S-0.3SHW(50)_C7427016 | FPC-SMD_FH35C-11S-0.3SHW | U2 |
| 1 | TPS63070RNMR | VREG_TPS63070RNMR | U3 |
| 1 | DRV2605LDGS | VSSOP-10_3x3mm_P0.5mm | U7 |
| 1 | AO3401A Alpha & Omega Semicon | Q_SOT-23 | Q1 |
| 1 | DMG3414U | SOT-23 | Q3 |
| 2 | Conn_01x02 | SolderWire-0.1sqmm_1x02_P3.6mm_D0.4mm_OD1mm | J2, J4 |
| 1 | TC-005_C6332285 | USB-C-SMD_TC-005 | USB1 |
| 1 | SP0503BAHT | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | D1 |
| 1 | White Hubei KENTO Elec | D_0603 | D2 |
| 1 | KT-0603R | LED_0201_0603Metric | D3 |
| 1 | B5819W | D_0603_1608Metric | D4 |
| 1 | 1.5uH | L_Coilcraft_XAL4020-XXX | L2 |
| 1 | 47uF Samsung Electro-Mechanics | C_0805 | C1 |
| 5 | 100nF Samsung Electro-Mechanics | C_0402 | C2, C8, C9, C10, C15 |
| 3 | 10uF Samsung Electro-Mechanics | C_0805 | C3, C4, C16 |
| 3 | 22uF Samsung Electro-Mechanics | C_0805 | C5, C6, C7 |
| 2 | 4.7uF | C_0402_1005Metric | C11, C17 |
| 2 | 1uF | C_0402_1005Metric | C21, C22 |
| 1 | 470kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R1 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 150kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R2 |
| 2 | 5.1kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R3, R4 |
| 1 | 2.2kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R5 |
| 2 | 2.2k | R_0402_1005Metric | R6, R20 |
| 1 | 10kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R11 |
| 1 | 1k | R_0402_1005Metric | R13 |
| 1 | 10k | R_0402_1005Metric | R14 |
| 1 | 100k | R_0402_1005Metric | R18 |
| 1 | 100kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R19 |
Daron necklace bottom board design files
The KiCad project lives in the manhoosbilli1/daron-necklace-bottom-board repository on GitHub; these links point at the commit this page was built from.
Daron necklace bottom board: common questions
How big is the Daron necklace bottom board?
The Daron necklace bottom board measures 20 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Daron necklace bottom board?
42 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Daron necklace bottom board design files?
From the manhoosbilli1/daron-necklace-bottom-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Daron necklace bottom board design in my own project?
The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.
