Bluz v1

Maniak003·BluZ·kicad/bluz_v1_typec/bluz_v1.kicad_pcb

Bluz v1 PCB layout, top view — open source STM32 board by Maniak003
Simulate this board

About the Bluz v1 PCB

Bluz v1 is an open source STM32 PCB design by Maniak003, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 24.9 × 14.9 mm, with 72 components from 39 distinct parts.

Its main chip is the STM32WBA54KGUx, from the STM32 family. Other key parts include the MCP73831, MCP1700, TLV3201AIDCK and AP3015KTR. By type, the board carries 26 capacitors, 18 resistors, 11 connectors, 4 ICs, 4 diodes and 2 transistors.

It belongs with the science & space designs in this gallery.

From the project

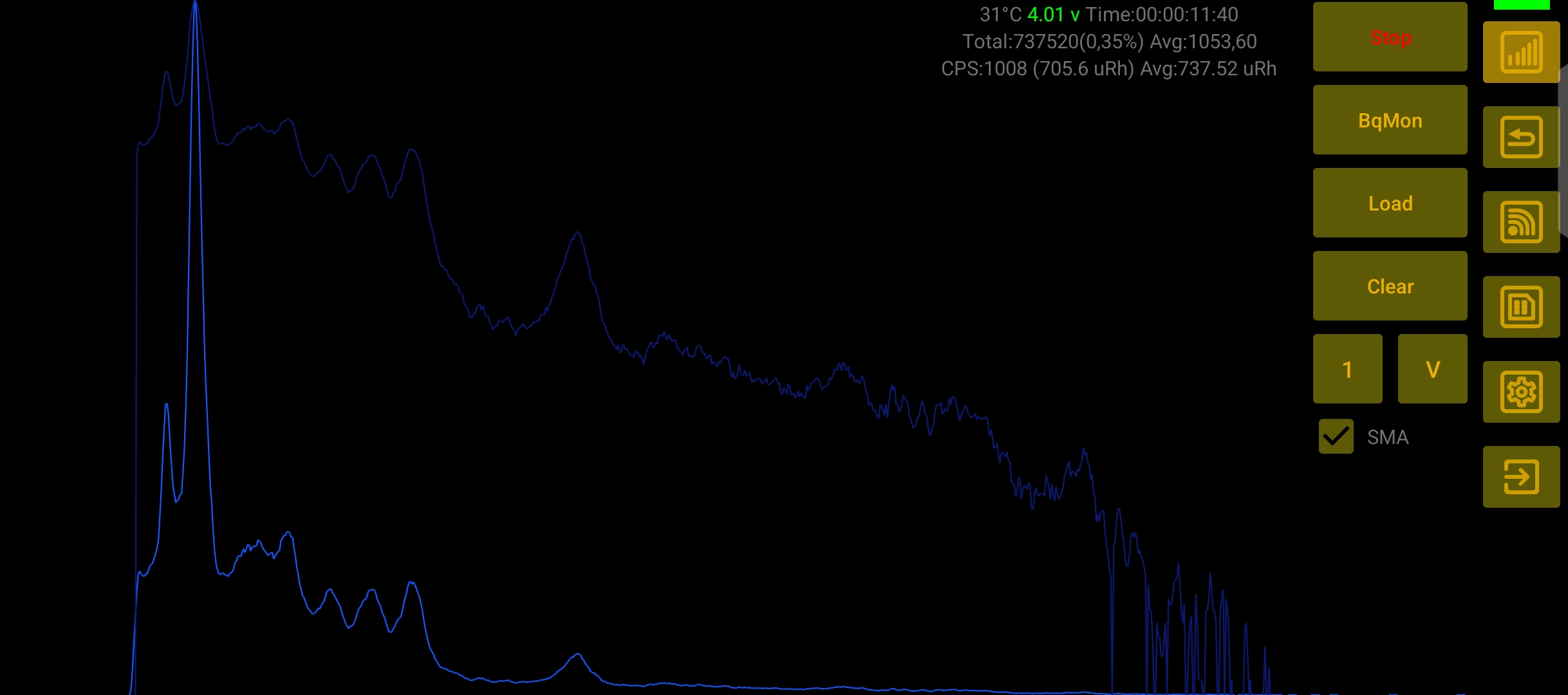

Scintillation gamma-spectrometer

Bluz v1, from the project README
From the project README

Main components on the Bluz v1

MCP73831MCP1700TLV3201AIDCKAP3015KTR

Bluz v1 bill of materials (BOM)

72 components, 39 distinct parts.

QtyPartRefs
1
MCP73831
U1
1
MCP1700
U2
1
TLV3201AIDCK
U3
1
AP3015KTR
U4
1
Z3OC1T8219731
M1
2
RUM002N05
Q1, Q2
1
NX1612SA-32MHz
Y1
1
NX2012SA-32.768
Y2
9
Conn
J2, J3, J4, J5, J6, J7, J8, J10 +1
1
USB_C_Receptacle_PowerOnly_6P
J9
1
BTAnt
J12
1
MLT-5020
BZ1
1
SW_DPDT_x2
SW1
1
LTST-C195KGJRKT
LED1
1
STM32WBA54KGUx
D1
1
LTC1662CMS8
D4
1
BAS16J
D5
1
MLPF-WB-04D3
D6
1
22uH LQH31CN220K03L
L2
15
22u
C1, C2, C3, C4, C5, C6, C8, C10 +7
Show 19 more
QtyPartRefs
2
4.7u
C7, C17
1
1.5p
C9
2
10n
C12, C18
2
22u C3216X5R1V226MTJ00E
C16, C19
2
10p
C21, C22
2
47n
C25, C26
1
510k
R1
1
1M
R2
2
10k
R3, R7
1
220
R4
1
82
R5
1
3k
R6
2
10M
R8, R9
1
75k
R10
2
100k
R11, R12
2
100M
R13, R16
1
1k
R14
1
4.3M
R15
2
5.1k
R17, R18

Bluz v1 design files

The KiCad project lives in the Maniak003/BluZ repository on GitHub; these links point at the commit this page was built from.

Bluz v1: common questions

What microcontroller does the Bluz v1 use?

The Bluz v1 is built around the STM32WBA54KGUx, from the STM32 family.

How big is the Bluz v1 PCB?

The Bluz v1 measures 24.9 × 14.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bluz v1?

72 components, from 39 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bluz v1 design files?

From the Maniak003/BluZ repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bluz v1 design in my own project?

Yes, under the terms of its GPL-3.0 license, which Maniak003 chose for the repository.

Can I test firmware for the Bluz v1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
