SpeedoDrive
About the SpeedoDrive PCB
SpeedoDrive is an open source PCB design by marino222, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 22 × 34.3 mm, with 20 components from 8 distinct parts.
Other key parts include the VID6606. By type, the board carries 9 resistors, 6 capacitors, 4 connectors and 1 IC.
It belongs with the robotics & motion designs in this gallery.
From the project
Replica of the kinetic art clock by "Humans Since 1982"

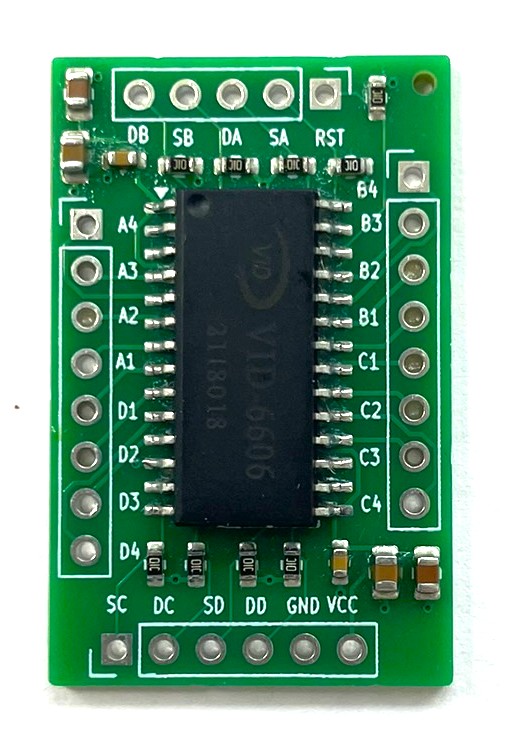

This folder contains the design files, manufacturing resources, and assembly instructions for the Motor Driver PCB used in the ClockClock 24 Replica project. This board is a compact breakout for the VID6606 stepper driver IC, designed to be easily replaceable and compatible with the main Clock PCB.
- KiCad Design Files: Schematic and layout for the Motor Driver PCB. - Manufacturing Folder: - Gerber files (ZIP) for PCB fabrication - SpeedoDriveBOMSMD.csv: Machine-readable BOM for SMD assembly
Main components on the SpeedoDrive
SpeedoDrive bill of materials (BOM)
20 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VID6606 | SOIC-28W_7.5x17.9mm_P1.27mm | U1 |
| 1 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 2 | Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J2, J4 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 2 | C5139488 6.8uF | C_0805_2012MetricSQ | C1, C6 |
| 2 | C1779 4.7uF | C_0805_2012MetricSQ | C2, C5 |
| 2 | C14663 100nF | C_0603_1608MetricSQ | C3, C4 |
| 9 | C25804 10K | R_0603_1608MetricSQ | R1, R2, R3, R4, R5, R6, R7, R8 +1 |
SpeedoDrive design files
The KiCad project lives in the marino222/clockclock24-replica repository on GitHub; these links point at the commit this page was built from.
SpeedoDrive: common questions
How big is the SpeedoDrive PCB?
The SpeedoDrive measures 22 × 34.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SpeedoDrive?
20 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SpeedoDrive design files?
From the marino222/clockclock24-replica repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SpeedoDrive design in my own project?
Yes, under the terms of its GPL-3.0 license, which marino222 chose for the repository.
