Clock PCB layout, top view — open source RP2040/RP2350 board by marino222

About the Clock PCB

Clock is an open source RP2040/RP2350 PCB design by marino222, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 260 × 60 mm, with 10 components from 6 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the VID6606. By type, the board carries 3 ICs, 3 modules, 3 connectors and 1 switch.

It belongs with the robotics & motion designs in this gallery.

From the project

Replica of the kinetic art clock by "Humans Since 1982"

This folder contains the design files, manufacturing resources, and assembly instructions for the Clock PCB used in the ClockClock 24 Replica project. The Clock PCB hosts three stepper motors, a Raspberry Pi Pico microcontroller, and connectors for two Motor Driver modules.

- KiCad Design Files: Schematic and layout for the Clock PCB. - Manufacturing Folder: - Gerber files (ZIP) for PCB fabrication

Clock, from the project README

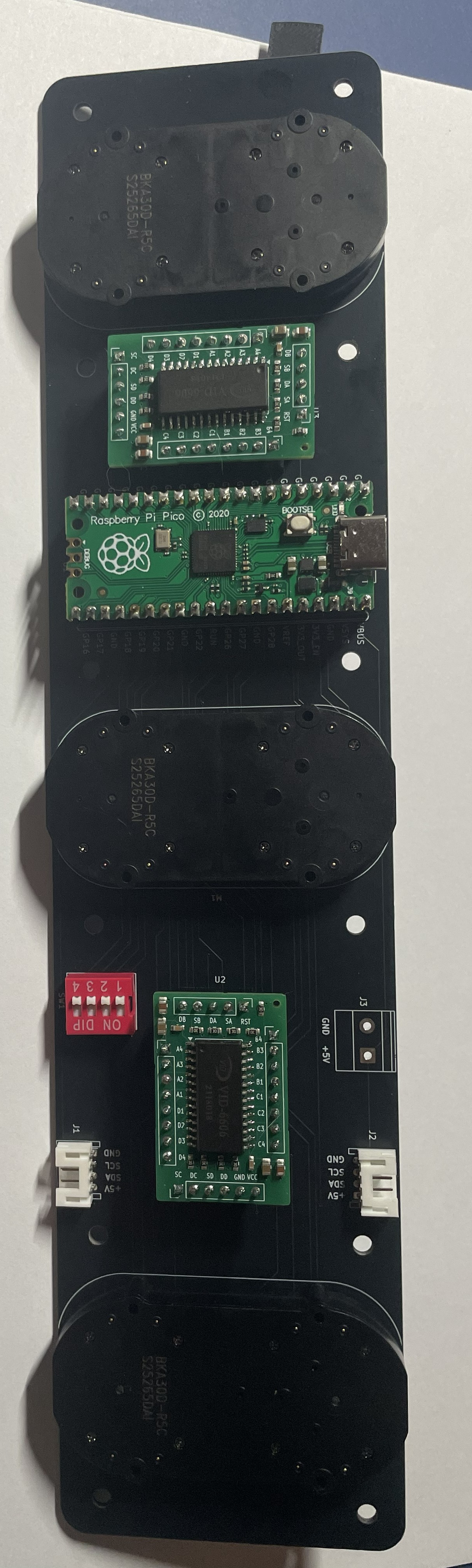

From the project README

Main components on the Clock

RaspberryPi_PicoVID6606

Clock bill of materials (BOM)

10 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RaspberryPi_Pico
U1
2
VID6606
U2, U3
3
BKA30D-R5
M1, M2, M3
2
PH_2.0_4_Pin
J1, J2
1
Conn_01x02_Pin
J3
1
SW_DIP_x04
SW1

Clock design files

The KiCad project lives in the marino222/clockclock24-replica repository on GitHub; these links point at the commit this page was built from.

Clock: common questions

What microcontroller does the Clock use?

The Clock is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Clock PCB?

The Clock measures 260 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Clock?

10 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Clock design files?

From the marino222/clockclock24-replica repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Clock design in my own project?

Yes, under the terms of its GPL-3.0 license, which marino222 chose for the repository.

Can I test firmware for the Clock without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
