De2-vd PCB layout, top view — open source board by marqs85

About the De2-vd PCB

De2-vd is an open source PCB design by marqs85, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 77.5 × 63.3 mm, with 67 components from 23 distinct parts.

Other key parts include the TVP7002PZP, 3XRCA_CONN, ACHL-27MHZ-EK, SN74LVC2G17 and MIC5210. By type, the board carries 38 capacitors, 15 resistors, 8 ICs and 5 connectors.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Video digitizer add-on module for DE2-115 FPGA development board.

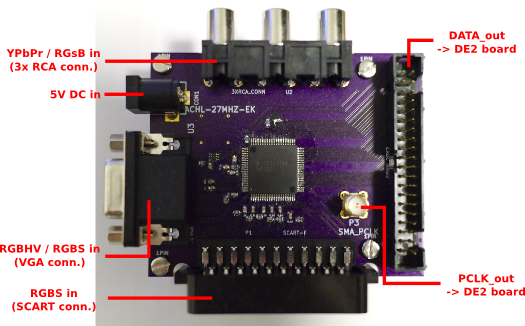

DE2-vd is a video digitization add-on module for Altera DE2-115 FPGA development board. Together with DE2-115, it can be used in converting analog RGB/component video into digital format with very low processing latency. The system is mainly designed for using retro game consoles / home computers on modern displays.

The module is a prototype for a single-board digitization and scan converter system to be released in the future. Therefore, the current system is targeted for developers / hobbyists interested in FPGA design and video digitization - no in-depth documentation is currently…

De2-vd, from the project README
From the project README

Main components on the De2-vd

TVP7002PZP3XRCA_CONNACHL-27MHZ-EKSN74LVC2G17MIC5210TLV71209DBV

De2-vd bill of materials (BOM)

67 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TVP7002PZP
U1
1
3XRCA_CONN
U2
1
ACHL-27MHZ-EK
U3
1
SN74LVC2G17
U4
1
MIC5210
U5
3
TLV71209DBV
U6, U7, U8
1
5VDC_IN
CON1
1
VGA
J1
1
SCART-F
P1
1
CONN_20X2
P2
1
SMA_PCLK
P3
1
P***
1PIN
21
0.1u
C1, C2, C3, C4, C5, C6, C7, C8 +13
4
1n
C11, C13, C16, C24
2
10n
C17, C25
1
4.7n
C19
2
2.2u
C29, C30
1
470p
C31
7
1u
C32, C33, C34, C35, C36, C37, C38
10
75
R1, R2, R3, R4, R5, R6, R7, R8 +2
Show 3 more
QtyPartRefs
1
1.5k
R11
1
330
R12
3
2.2k
R13, R14, R15

De2-vd design files

The KiCad project lives in the marqs85/de2-vd repository on GitHub; these links point at the commit this page was built from.

De2-vd: common questions

How big is the De2-vd PCB?

The De2-vd measures 77.5 × 63.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the De2-vd?

67 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the De2-vd design files?

From the marqs85/de2-vd repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the De2-vd design in my own project?

Yes, under the terms of its GPL-3.0 license, which marqs85 chose for the repository.
