Pico probe programmer

martijnvwezel·pico-probe-programmer·pcb-kicad/Muino_debugger.kicad_pcb

Pico probe programmer PCB layout, top view — open source board by martijnvwezel

Simulate this board

About the Pico probe programmer PCB

Pico probe programmer is an open source PCB design by martijnvwezel, published on GitHub under the MIT license. It is a 2-layer board measuring 43.2 × 27.9 mm, with 18 components from 10 distinct parts.

Other key parts include the LD3985M33R_SOT23 and TINY2040. By type, the board carries 5 capacitors, 4 resistors, 3 connectors, 3 diodes, 1 IC and 1 module.

It belongs with the usb & debug tools designs in this gallery.

From the project

The simple pico can be used to program other devices. Raspberry pi made such an effort. However there is no board yet, that is open-source and can be used with OpenOCD as a general-purpose programmer

Then go to the folder pico-probe, run the commands:

This will generate picoprobe.uf2. Or use the prebuild file: binaries/picoprobe.uf2. I prebuild this file, so I can quickly update it to a programmer if I need it again.

List of values, soon to be added to the schematics C1: 1UF C2: 100nF C3: 10nF C4: 4.7uF C5: 100nF R1: 10K R2: 100 d1,2,3: BAT60JFILM 2.54mm male headers 02x05 A1: PIM558 - Tiny 2040 * U1: LD3985M33R

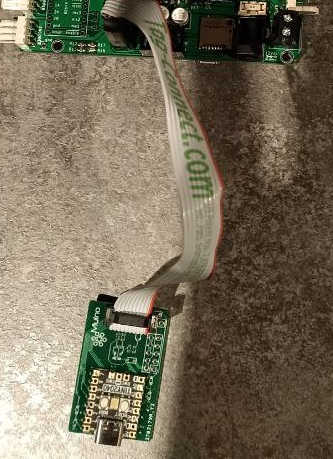

Pico probe programmer, from the project README — From the project README

Main components on the Pico probe programmer

LD3985M33R_SOT23 TINY2040

Pico probe programmer bill of materials (BOM)

18 components, 10 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	LD3985M33R_SOT23	SOT-23-5	U1
1	TINY2040	TINY2040	A1
1	Programmer	PinHeader_2x05_P2.54mm_Vertical	J1
1	Power header	PinHeader_2x05_P2.54mm_Vertical	J2
1	Conn_01x02_Male	PinHeader_1x02_P2.54mm_Vertical	J3
1	LOGO	Suino	G1
3	D	D_SOD-323_HandSoldering	D1, D2, D3
5	C	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C1, C2, C3, C4, C5
2	R	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R1, R2
2	DNP	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R3, R4

Pico probe programmer design files

The KiCad project lives in the martijnvwezel/pico-probe-programmer repository on GitHub; these links point at the commit this page was built from.

Pico probe programmer: common questions

How big is the Pico probe programmer PCB?

The Pico probe programmer measures 43.2 × 27.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico probe programmer?

18 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pico probe programmer design files?

From the martijnvwezel/pico-probe-programmer repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Pico probe programmer design in my own project?

Yes, under the terms of its MIT license, which martijnvwezel chose for the repository.
