H7value

martinribelotta·h7value

H7value PCB layout, top view — open source STM32 board by martinribelotta

About the H7value PCB

H7value is an open source STM32 PCB design by martinribelotta, published on GitHub. It is a 2-layer board measuring 63.5 × 73.7 mm, with 60 components from 24 distinct parts.

Its main chip is the STM32H750VBT6, from the STM32 family. Other key parts include the S25FL132K0XMFI010, AP1117-33 and KSZ8081RNA. By type, the board carries 24 capacitors, 16 resistors, 9 connectors, 4 ICs, 3 switches and 2 crystals.

From the project

stm32h7 value line board

Simple board for stm32h750 value line device in LQFP100 package.

- Track/Clearance width: 8mils/8mils - Drill dia: 0.3048 mm - Via dia: 0.4064 mm

- STM32H750VBT6: 1MBy RAM, 128KBy Flash at 400MHz CPU - External flash in QSPI1 interface with execute in place (4, 8 or 16MBytes) - USB HS and FS - Ethernet PHY in RMII interface (optional) - MicroSD card in 1bit interface - 8MHz main crystal - 32.768KHz RTC crystal - SWD connector - Reset button - User button connected to PA13-WakeUP - User led connected to PA8 - BOOT dip switch - 800mA 3.3v regulator - Others GPIO connected to 100mils-space pin…

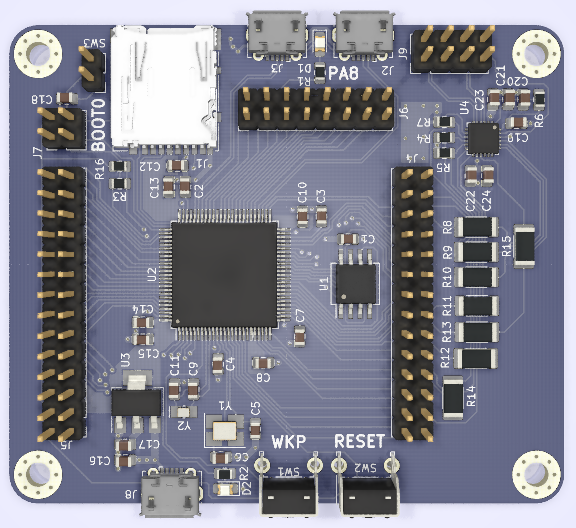

H7value, from the project README
From the project README

Main components on the H7value

S25FL132K0XMFI010STM32H750VBT6AP1117-33KSZ8081RNA

H7value bill of materials (BOM)

60 components, 24 distinct parts.

QtyPartRefs
1
S25FL132K0XMFI010
U1
1
STM32H750VBT6
U2
1
AP1117-33
U3
1
KSZ8081RNA
U4
1
16MHz
Y1
1
32.768KHz
Y2
1
Micro_SD_Card
J1
3
USB_B_Micro
J2, J3, J8
2
Conn_02x14_Odd_Even
J4, J5
1
Conn_02x08_Odd_Even
J6
1
Conn_02x02_Odd_Even
J7
1
Conn_02x04_Odd_Even
J9
2
SW_Push
SW1, SW2
1
SW_DIP_x01
SW3
2
RED
D1, D2
14
100n
C1, C2, C3, C4, C7, C8, C10, C12 +6
4
18p
C5, C6, C9, C11
3
4.7u
C15, C21, C24
2
10u
C16, C17
1
2.2u
C20
Show 4 more
QtyPartRefs
2
220R
R1, R2
5
10K
R3, R4, R5, R6, R16
1
6.49K 1%
R7
8
0R
R8, R9, R10, R11, R12, R13, R14, R15

H7value design files

The KiCad project lives in the martinribelotta/h7value repository on GitHub; these links point at the commit this page was built from.

H7value: common questions

What microcontroller does the H7value use?

The H7value is built around the STM32H750VBT6, from the STM32 family.

How big is the H7value PCB?

The H7value measures 63.5 × 73.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the H7value?

60 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the H7value design files?

From the martinribelotta/h7value repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the H7value design in my own project?

The repository has no license, so all rights stay with martinribelotta. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the H7value without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
