Imxrt1020-module
About the Imxrt1020-module
Imxrt1020-module is an open source PCB design by martinribelotta, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 136 × 58 mm, with 133 components from 45 distinct parts.
Other key parts include the imx_rt1020-qfp144, IS25LP064A-JBLE, AS4C16M16S, TPS3839DBZ and MIC5219-3.3. By type, the board carries 78 capacitors, 24 resistors, 11 ICs, 11 connectors, 3 diodes and 2 crystals.

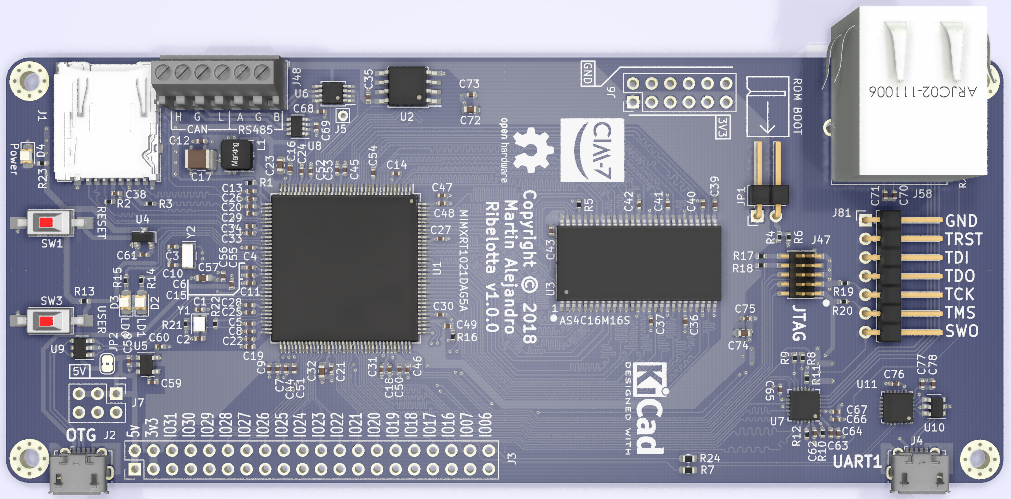

From the project
iMX RT 1020 CPU module
Main components on the Imxrt1020-module
Imxrt1020-module bill of materials (BOM)
133 components, 45 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | imx_rt1020-qfp144 | LQFP-144_20x20mm_Pitch0.5mm | U1 |
| 1 | IS25LP064A-JBLE | SOIJ-8_5.3x5.3mm_Pitch1.27mm | U2 |
| 1 | AS4C16M16S | TSOP_II_54 | U3 |
| 1 | TPS3839DBZ | SOT-23 | U4 |
| 1 | MIC5219-3.3 | SOT-23-5 | U5 |
| 1 | ISL3178E | MSOP-8_3x3mm_Pitch0.65mm | U6 |
| 1 | KSZ8081RNA | QFN-24-1EP_4x4mm_Pitch0.5mm | U7 |
| 1 | TCAN332D | SOT-23-8 | U8 |
| 2 | USBLC6-2 | SOT-23-6 | U9, U10 |
| 1 | CP2102N-A01-GQFN24 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U11 |
| 1 | 24MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | 32.768Khz | Crystal_SMD_MicroCrystal_CC7V-T1A-2Pin_3.2x1.5mm | Y2 |
| 1 | Micro_SD_Card_Det | microSD_HC_Hirose_DM3AT-SF-PEJM5 | J1 |
| 2 | USB_OTG | USB_Micro-B_Molex-105017-0001 | J2, J4 |
| 1 | Conn_02x20_Odd_Even | Pin_Header_Straight_2x20_Pitch2.54mm | J3 |
| 1 | IO3_24 | Pin_D0.7mm_L6.5mm_W1.8mm_FlatFork | J5 |
| 1 | PWR1 | PinHeader_2x06_P2.54mm_Vertical | J6 |
| 1 | PWR2 | PinHeader_2x03_P2.54mm_Vertical | J7 |
| 1 | JTAG | PinHeader_2x05_P1.27mm_Vertical_SMD | J47 |
| 1 | Conn_01x06 | TerminalBlock_Phoenix_MPT-0,5-6-2.54_1x06_P2.54mm_Horizontal | J48 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RJMG1BD3B8K1ANR | CONN_RJMG1BD3B8K1ANR | J58 |
| 1 | Conn_01x07 | PinHeader_1x07_P2.54mm_Horizontal | J81 |
| 1 | ROMBOOT | PinHeader_1x02_P2.54mm_Horizontal | JP1 |
| 1 | RST | SW_SPST_FSMSM | SW1 |
| 1 | WAKE | SW_SPST_FSMSM | SW3 |
| 3 | RED | LED_0805_2012Metric_Castellated | D2, D3, D4 |
| 1 | 4.7u | L_Taiyo-Yuden_MD-4040 | L1 |
| 2 | 4.7p | C_0402_1005Metric | C1, C2 |
| 2 | 18p | C_0402_1005Metric | C3, C10 |
| 18 | 0.22u | C_0402_1005Metric | C4, C6, C8, C9, C11, C12, C13, C14 +10 |
| 16 | 4.7u | C_0402_1005Metric | C5, C15, C22, C25, C26, C31, C33, C44 +8 |
| 6 | 1u | C_0402_1005Metric | C7, C55, C58, C60, C61, C76 |
| 1 | 33u | C_1210_3225Metric | C17 |
| 2 | 22u | C_0603_1608Metric | C23, C32 |
| 26 | 0.1u | C_0402_1005Metric | C34, C35, C36, C37, C38, C39, C40, C41 +18 |
| 3 | 10u | C_0603_1608Metric | C57, C72, C74 |
| 2 | 2.2u | C_0402_1005Metric | C59, C63 |
| 1 | 30K | R_0402_1005Metric | R1 |
| 13 | 10K | R_0402_1005Metric | R2, R3, R4, R5, R8, R9, R10, R13 +5 |
| 1 | 1K | R_0402_1005Metric | R6 |
| 2 | 0R | R_0603_1608Metric | R7, R24 |
| 1 | 6.49K %1 | R_0402_1005Metric | R11 |
| 4 | 220R | R_0402_1005Metric | R12, R14, R15, R23 |
| 1 | 2.2M | R_0402_1005Metric | R21 |
| 1 | 1M | R_0402_1005Metric | R22 |
Imxrt1020-module design files
The KiCad project lives in the martinribelotta/imxrt1020-module repository on GitHub; these links point at the commit this page was built from.
Imxrt1020-module: common questions
How big is the Imxrt1020-module?
The Imxrt1020-module measures 136 × 58 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Imxrt1020-module?
133 components, from 45 distinct parts. The full bill of materials is listed on this page.
Where can I download the Imxrt1020-module design files?
From the martinribelotta/imxrt1020-module repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Imxrt1020-module design in my own project?
Yes, under the terms of its BSD-3-Clause license, which martinribelotta chose for the repository.
