Pic32mz board
About the Pic32mz board
Pic32mz board is an open source PIC PCB design by martinribelotta, published on GitHub. It is a 2-layer board measuring 79 × 68 mm, with 28 components from 13 distinct parts.
Its main chip is the PIC32MZ-144, from the PIC family. Other key parts include the NCP1117ST50T3G. By type, the board carries 16 capacitors, 4 resistors, 2 ICs, 2 connectors, 2 diodes and 1 crystal.

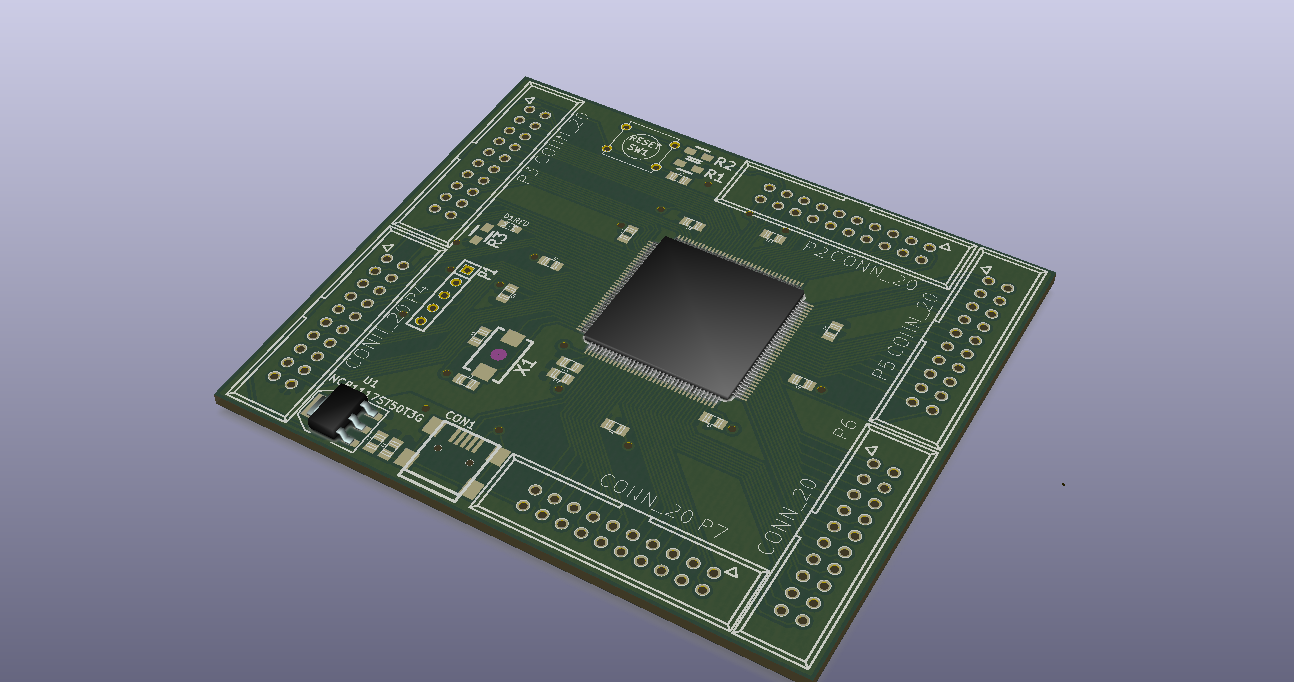

From the project
Board of PIC32MZ on LQFP144 pin
PIC32MZ development board for 144 pin QFP packages
Main components on the Pic32mz board
Pic32mz board bill of materials (BOM)
28 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NCP1117ST50T3G | SOT223 | U1 |
| 1 | PIC32MZ-144 | TQFP144 | U2 |
| 1 | 24MHz | Crystal_FOX-FE_SMD | X1 |
| 1 | USB-MINI-B | USB_MINI_B | CON1 |
| 1 | JTAG | SIL-5 | P1 |
| 1 | RESET | SW_PUSH_SMALL | SW1 |
| 2 | RED | LED-0805 | D1, D2 |
| 2 | 1u | c_0805 | C1, C15 |
| 2 | 10u | c_0805 | C2, C3 |
| 2 | 10p | c_0805 | C4, C5 |
| 10 | 100n | c_0805 | C6, C7, C8, C9, C10, C11, C12, C13 +2 |
| 1 | 10k | Resistor_SMD0805_HandSoldering | R1 |
| 3 | 220R | Resistor_SMD0805_HandSoldering | R2, R3, R4 |
Pic32mz board design files
The KiCad project lives in the martinribelotta/pic32mz-board repository on GitHub; these links point at the commit this page was built from.
- Layoutmz.kicad_pcb
Pic32mz board: common questions
What microcontroller does the Pic32mz board use?
The Pic32mz board is built around the PIC32MZ-144, from the PIC family.
How big is the Pic32mz board?
The Pic32mz board measures 79 × 68 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pic32mz board?
28 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pic32mz board design files?
From the martinribelotta/pic32mz-board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Pic32mz board design in my own project?
The repository has no license, so all rights stay with martinribelotta. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Pic32mz board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
