About the YA usb ttl serial adapter PCB

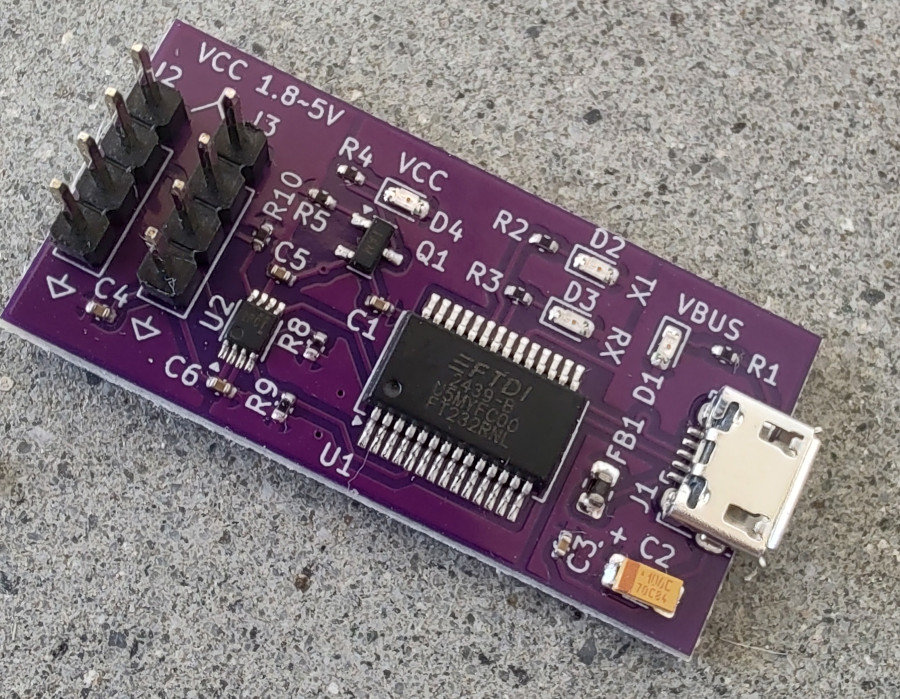

YA usb ttl serial adapter is an open source PCB design by mastupristi, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 33.8 × 19 mm, with 24 components from 14 distinct parts.
Other key parts include the FT232RNL and TXU0202DCU. By type, the board carries 8 resistors, 6 capacitors, 4 diodes, 2 ICs, 2 connectors and 1 transistor.
It belongs with the usb & debug tools designs in this gallery.
From the project
Yet Another USB-TTL Adapter with Auto Voltage Sensing
This is a simple open hardware project for a USB-to-TTL serial adapter based on the FTDI FT232RNL chip. The main feature of this adapter is its automatic voltage level detection, supporting TTL I/O levels from 1.8V to 5V without requiring manual jumper selection.
There are many USB-to-TTL adapters available on the market, such as:
- AZDelivery FT232RL Adapter - DSD TECH SH-U09C2 Adapter

Main components on the YA usb ttl serial adapter
YA usb ttl serial adapter bill of materials (BOM)
24 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FT232RNL | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | TXU0202DCU | VSSOP-8_2.3x2mm_P0.5mm | U2 |
| 1 | MMBT3904 | SOT-23 | Q1 |
| 1 | C132563 USB_B_Micro | USB_Micro-B_Amphenol_10118194-0001LF_Horizontal | J1 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J2 |
| 4 | NCD0805R1 | LED_0805_2012Metric | D1, D2, D3, D4 |
| 1 | GZ2012D601TF | R_0805_2012Metric | FB1 |
| 5 | 100NF 100nF | C_0402_1005Metric | C1, C3, C4, C5, C6 |
| 1 | 10UF 10uF | C_1206_3216Metric | C2 |
| 1 | 1K5 1k5 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 2 | 270 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3 |
| 3 | 10K 10k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R4, R5, R6 |
| 1 | 470 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7 |
| 1 | 47K 47k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8 |
YA usb ttl serial adapter design files
The KiCad project lives in the mastupristi/YA_usb_ttl_serial_adapter repository on GitHub; these links point at the commit this page was built from.
- Layoutusb_uart_1V8.kicad_pcb
- Schematicusb_uart_1V8.kicad_sch
- BOMusb_uart_1V8_bom_top.csv
YA usb ttl serial adapter: common questions
How big is the YA usb ttl serial adapter PCB?
The YA usb ttl serial adapter measures 33.8 × 19 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the YA usb ttl serial adapter?
24 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the YA usb ttl serial adapter design files?
From the mastupristi/YA_usb_ttl_serial_adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the YA usb ttl serial adapter design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which mastupristi chose for the repository.
