ControleurFilPiloteSMS PCB layout, top view — open source AVR/Arduino board by MathieuBahin

About the ControleurFilPiloteSMS PCB

ControleurFilPiloteSMS is an open source AVR/Arduino PCB design by MathieuBahin, published on GitHub. It is a 2-layer board measuring 87 × 83.6 mm, with 18 components from 12 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the SIM800L, MOC3023M, DS18B20 and IRM-10-5. By type, the board carries 7 resistors, 5 ICs, 3 diodes, 1 module, 1 connector and 1 capacitor.

From the project

Contrôler un radiateur avec fil pilote à distance par SMS

Bonjour à tous je vous propose aujourd'hui un projet pour contrôler un radiateur par SMS. Le radiateur doit posséder l'option "Fil pilote".

Mon besoin est de pouvoir piloter la mise en marche d'un radiateur situé dans une résidence secondaire à distance. L'idée est de pouvoir envoyer un ordre à une unité réceptrice qui va allumer le radiateur et me permettre d'arriver 1/2 jours plus tard avec une température correcte dans la résidence.

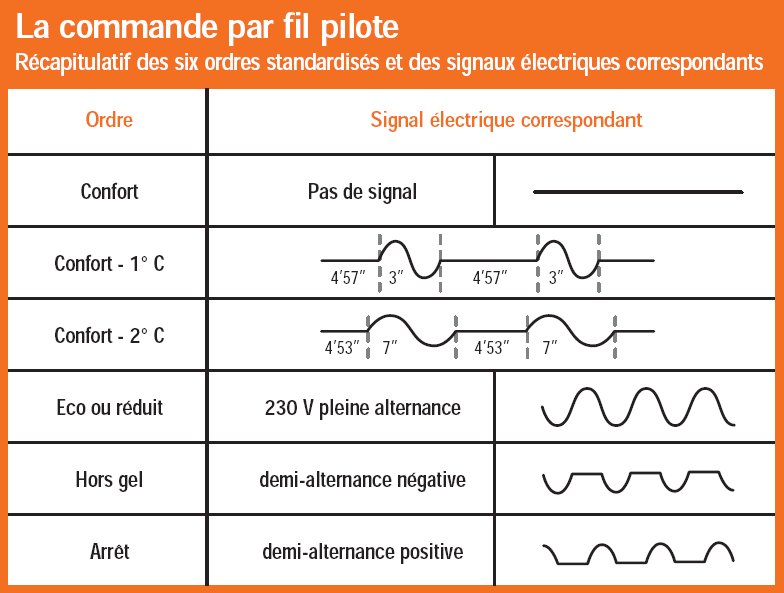

ControleurFilPiloteSMS, from the project README
From the project README

Main components on the ControleurFilPiloteSMS

SIM800LMOC3023MDS18B20IRM-10-5Arduino_Nano_v3.x

ControleurFilPiloteSMS bill of materials (BOM)

18 components, 12 distinct parts.

QtyPartRefs
1
SIM800L
U1
2
MOC3023M
U2, U3
1
DS18B20
U4
1
IRM-10-5
U5
1
Arduino_Nano_v3.x
A1
1
ZFKDS_3
J1
3
1N4007
D1, D6, D7
1
100u 10V
C1
3
4.7k
R1, R4, R9
1
1k
R2
1
1.8k
R3
2
680
R7, R8

ControleurFilPiloteSMS design files

The KiCad project lives in the MathieuBahin/ControleurFilPiloteSMS repository on GitHub; these links point at the commit this page was built from.

ControleurFilPiloteSMS: common questions

What microcontroller does the ControleurFilPiloteSMS use?

The ControleurFilPiloteSMS is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the ControleurFilPiloteSMS PCB?

The ControleurFilPiloteSMS measures 87 × 83.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ControleurFilPiloteSMS?

18 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the ControleurFilPiloteSMS design files?

From the MathieuBahin/ControleurFilPiloteSMS repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ControleurFilPiloteSMS design in my own project?

The repository has no license, so all rights stay with MathieuBahin. Use it as a reference, and ask the author before reusing the design.
