Pcb stepperdriver uln2003
matt-alencar·pcb-stepperdriver-uln2003
About the Pcb stepperdriver uln2003

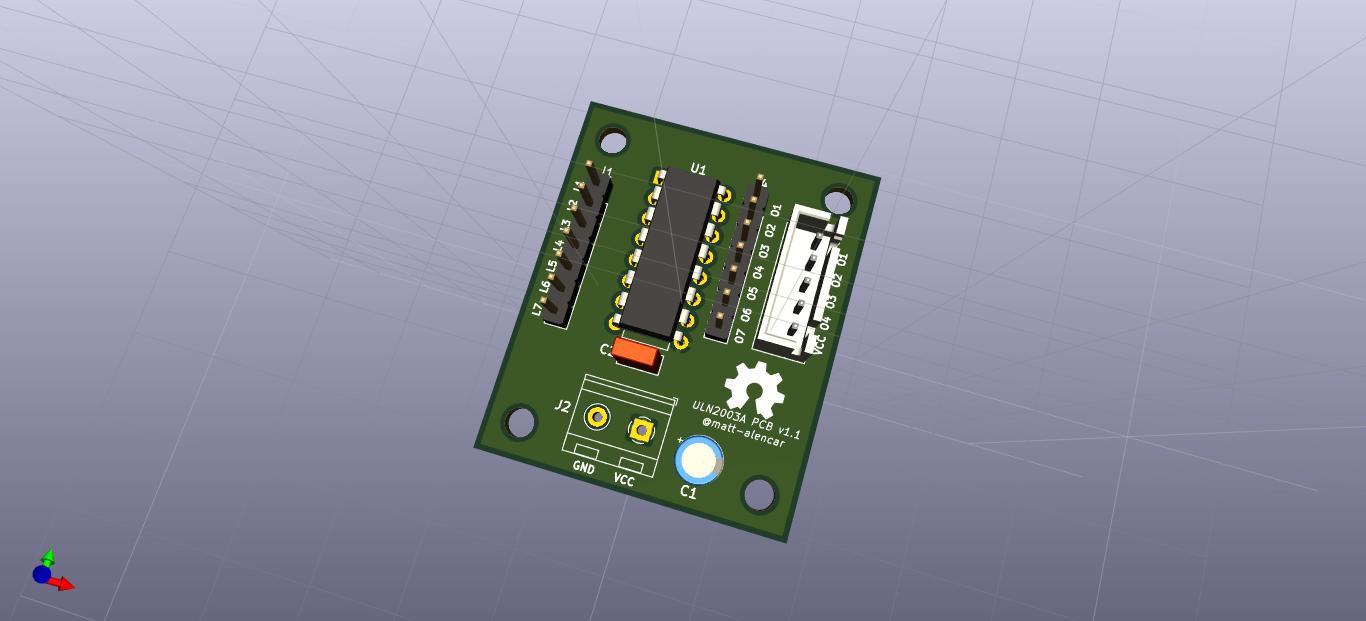

Pcb stepperdriver uln2003 is an open source PCB design by matt-alencar, published on GitHub under the MIT license. It is a 2-layer board measuring 35.3 × 42.3 mm, with 7 components from 6 distinct parts.
Other key parts include the ULN2003A. By type, the board carries 4 connectors, 2 capacitors and 1 IC.
It belongs with the robotics & motion designs in this gallery.
From the project
Basic PCB project for unipolar stepper driver based on ULN2003 darlington transistor array
Basic dual layer PCB project based on ULN2003 darlington transistor array, commonly used to drive unipolar stepper motor such as 28BYJ-48.
Matheus Alencar Nascimento - Initial work*
This project is licensed under the MIT License - see the [LICENSE] file for details

Main components on the Pcb stepperdriver uln2003
Pcb stepperdriver uln2003 bill of materials (BOM)
7 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ULN2003A | DIP-16_W7.62mm | U1 |
| 2 | Conn_01x07_Male | PinHeader_1x07_P2.54mm_Vertical | J1, J4 |
| 1 | Conn_01x02 | TerminalBlock_RND_205-00232_1x02_P5.08mm_Horizontal | J2 |
| 1 | Conn_01x05_Male | JST_XH_B05B-XH-A_1x05_P2.50mm_Vertical | J3 |
| 1 | 100u | CP_Radial_D5.0mm_P2.00mm | C1 |
| 1 | 100n | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C2 |
Pcb stepperdriver uln2003 design files
The KiCad project lives in the matt-alencar/pcb-stepperdriver-uln2003 repository on GitHub; these links point at the commit this page was built from.
- LayoutStepperDriver.kicad_pcb
Pcb stepperdriver uln2003: common questions
How big is the Pcb stepperdriver uln2003?
The Pcb stepperdriver uln2003 measures 35.3 × 42.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pcb stepperdriver uln2003?
7 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pcb stepperdriver uln2003 design files?
From the matt-alencar/pcb-stepperdriver-uln2003 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Pcb stepperdriver uln2003 design in my own project?
Yes, under the terms of its MIT license, which matt-alencar chose for the repository.
