Odc cc2500

matthewgpetrin·odc-cc2500·kicad/odc-cc2500.kicad_pcb

Odc cc2500 PCB layout, top view — open source board by matthewgpetrin

About the Odc cc2500 PCB

Odc cc2500 is an open source PCB design by matthewgpetrin, published on GitHub. It is a 4-layer board measuring 34.4 × 26.4 mm, with 36 components from 22 distinct parts.

Other key parts include the CC2500RGPR and TPS7A2033PDBVR. By type, the board carries 17 capacitors, 8 resistors, 3 connectors, 3 inductors, 2 ICs and 2 diodes.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Simple breakout board for the CC2500. To be incorporated into more ambitious projects in the future.

Liscenses are annoying. Please feel free to use this design for any personal projects. Please do not sell any products using this design without my express permission. And of course, follow any local RF regulations.

The board is to be powered by a 5V DC source, which is regulated down to 3.3V. Power can be provided via the rectangular header, or via USB C.

The project is designed in KiCAD 9, and should be compatible with equal or greater versions. All required symbols and footprints are contained within.

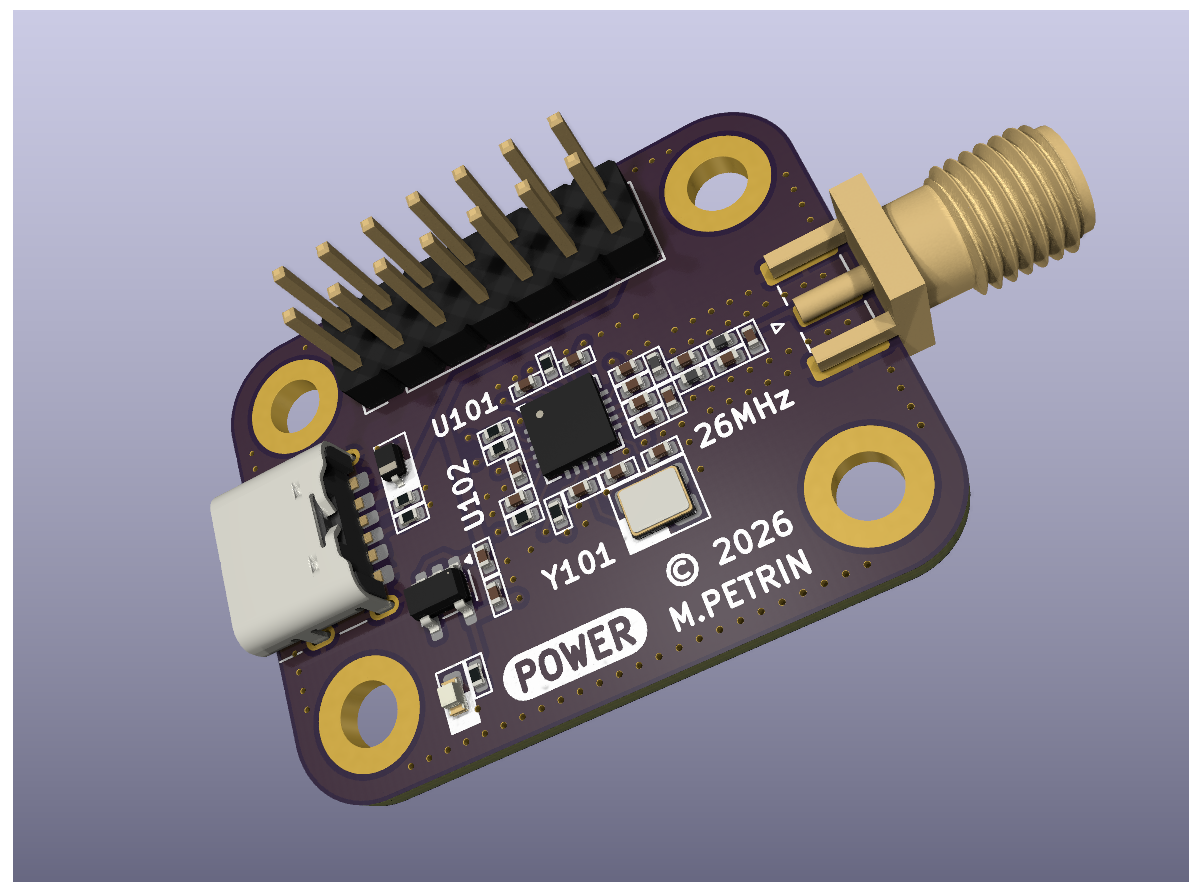

Odc cc2500, from the project README
From the project README

Main components on the Odc cc2500

CC2500RGPRTPS7A2033PDBVR

Odc cc2500 bill of materials (BOM)

36 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CC2500RGPR
CC2500
Texas Instruments
U101
1
TPS7A2033PDBVR
TPS7A2033PD
Texas Instruments
U102
1
ABM8-26.000MHZ-10-D-1-G-T
ABM8-26.000MHZ
Abracon
Y101
1
SMA-J-P-H-ST-EM1
SMA
Samtec
J101
1
PH2-14-UA
0.1" Header
Adam Tech
J102
1
10164359-00011LF
USBC
Amphenol ICC
J103
1
SDD32A05L01
YAGEO
D101
1
SML-D12M8WT86
LED
Rohm
D102
3
LQG15HS1N2B02D
1.20n
Murata
L101, L102, L103
4
GCM155R71H104KE02D
100n
Murata
C101, C102, C103, C110
3
GRM1555C1H221JA01D
220p
Murata
C104, C105, C106
2
GRM1555C1H101JA01D
100p
Murata
C107, C108
2
GRM1555C1H1R0BA01D
1.00p
Murata
C109, C111
1
GJM1555C1H1R8BB01D
1.80p
Murata
C112
1
GJM1555C1H1R5BB01D
1.50p
Murata
C113
2
GRM1555C1H180JA01D
18.0p
Murata
C114, C115
2
GRM155Z71A225KE44D
2.20u
Murata
C116, C117
1
ERJ-2GEJ103X
10.0k
Panasonic
R101
3
ERJ-2GEJ101X
100
Panasonic
R102, R103, R104
1
ERJ-2RKF5602X
56.0k
Panasonic
R105
Show 2 more
QtyPartRefs
1
ERJ-2RKF2200X
220
Panasonic
R106
2
ERJ-2RKF5101X
5.10k
Panasonic
R107, R108

Odc cc2500 design files

The KiCad project lives in the matthewgpetrin/odc-cc2500 repository on GitHub; these links point at the commit this page was built from.

Odc cc2500: common questions

How big is the Odc cc2500 PCB?

The Odc cc2500 measures 34.4 × 26.4 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the Odc cc2500?

36 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Odc cc2500 design files?

From the matthewgpetrin/odc-cc2500 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Odc cc2500 design in my own project?

The repository has no license, so all rights stay with matthewgpetrin. Use it as a reference, and ask the author before reusing the design.
