MDCtrl PCB layout, top view — open source RP2040/RP2350 board by mdiph

About the MDCtrl PCB

MDCtrl is an open source RP2040/RP2350 PCB design by mdiph, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 175.4 × 87.3 mm, with 19 components from 4 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 18 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Simple and Portable Stickless Controller

The component that you need to build MDCtrl: - MDCtrl PCB - MDCtrl Case (2D) - Raspberry Pi Pico - 12 Kailh hotswap sockets (Optional) - 12 Keyboard switches - 12 Keycaps - 1 Stabilizer - 5 6x6x5 Tactile Switches - Soldering component - Rubber Feet (For the bottom of the case)

PCB thickness should be 1,6mm (Double layer) with masking color of your choice

Board Version | Ver1 | Ver2 (WIP) | --------------|:-----------------:|:----------------:| PCB Dimension | 175,418x87,312mm | WIP | Board Used | Raspberry Pi Pico | Waveshare RP2040-Zero| Port | Micro USB | USB-C |

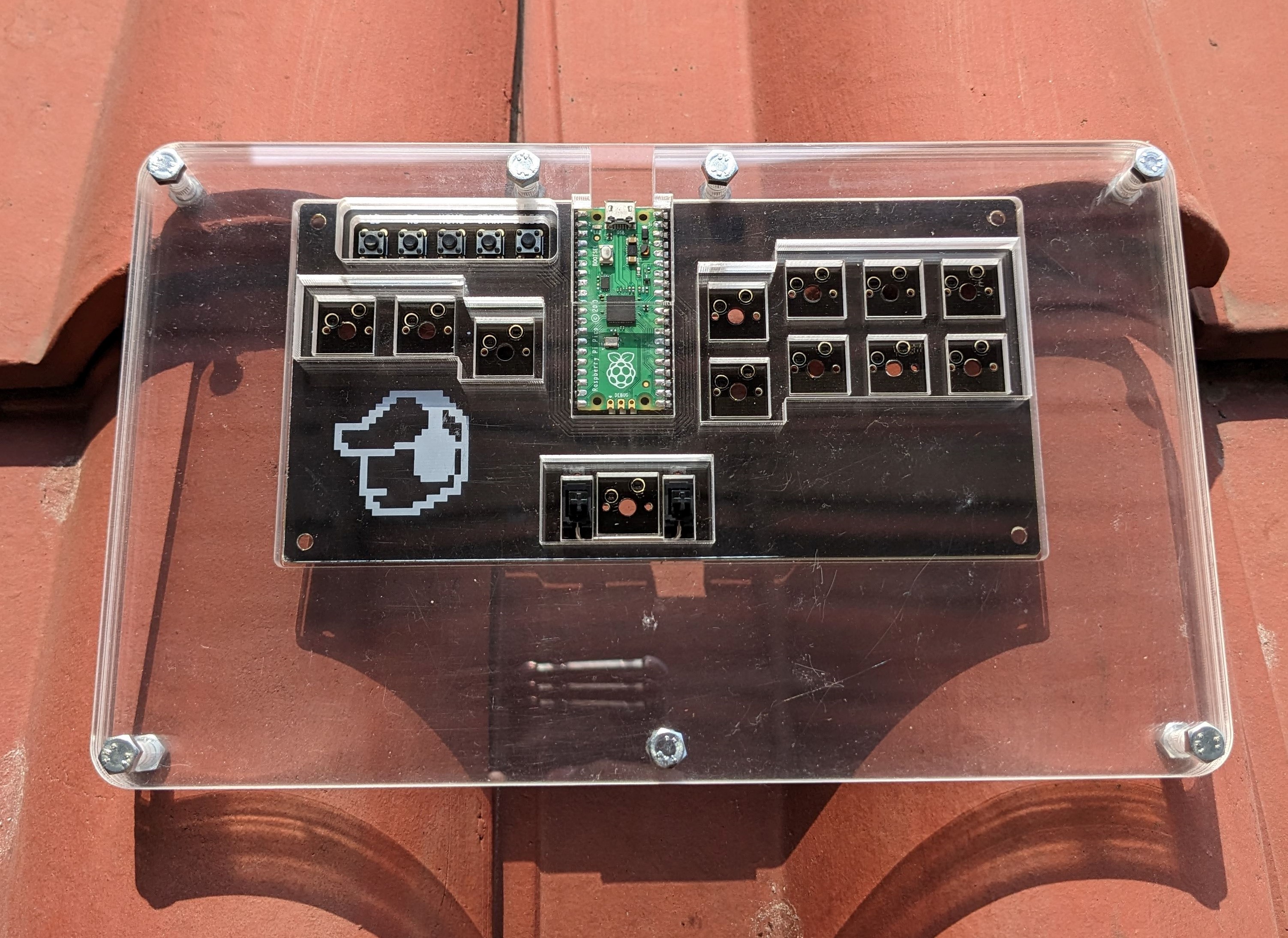

MDCtrl, from the project README
From the project README

Main components on the MDCtrl

Pico

MDCtrl bill of materials (BOM)

19 components, 4 distinct parts.

QtyPartRefs
1
Pico
U1
1
MX_stab
S1
12
MX_SW_HS
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
5
SW_Omron_B3FS
SW13, SW14, SW15, SW16, SW17

MDCtrl design files

The KiCad project lives in the mdiph/MDCtrl repository on GitHub; these links point at the commit this page was built from.

MDCtrl: common questions

What microcontroller does the MDCtrl use?

The MDCtrl is built around the Pico, from the RP2040/RP2350 family.

How big is the MDCtrl PCB?

The MDCtrl measures 175.4 × 87.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MDCtrl?

19 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the MDCtrl design files?

From the mdiph/MDCtrl repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MDCtrl design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which mdiph chose for the repository.

Can I test firmware for the MDCtrl without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
