AeroBoard

About the AeroBoard PCB

AeroBoard is an open source RP2040/RP2350 PCB design by MehrResearch, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 80 × 80 mm, with 94 components from 18 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 25 resistors, 20 connectors, 15 diodes, 13 transistors, 10 capacitors and 9 inductors.

From the project

Raspberry Pi Pico-based multichannel controller for programmable aerosol chemistry

This repository contains the KiCad project for AeroBoard, a Raspberry Pi Pico-based, multichannel controller for programmable aerosol chemistry. In addition to schematic and layout files, we have included baseline bill of materials (BOM) and component placement list (CPL) files for ordering pre-assembled boards or to populate the PCB after manufacture.

If you run into any issues, please feel free to contact us.

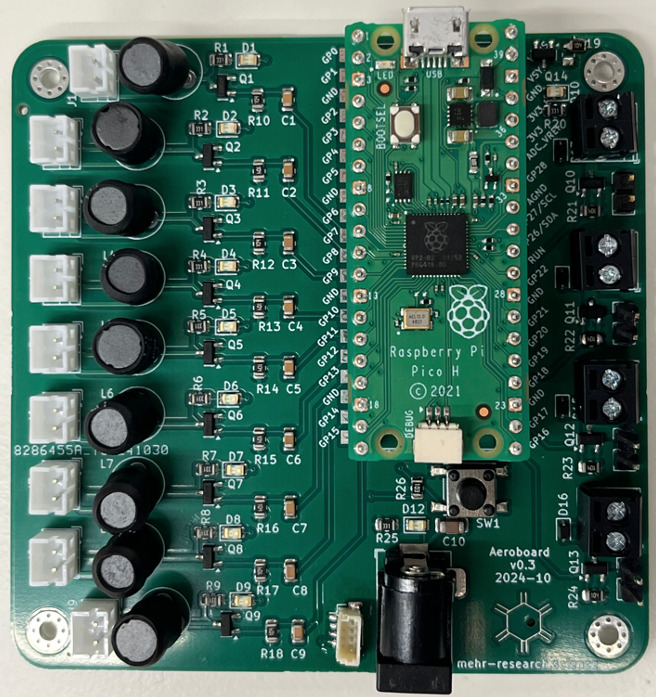

AeroBoard, from the project README — From the project README

Main components on the AeroBoard

Pico

AeroBoard bill of materials (BOM)

94 components, 18 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD_TH	U1
13	IRLML6344	SOT-23	Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +5
9	Conn_01x02_Pin	JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical	J1, J2, J3, J4, J5, J6, J7, J8 +1
1	Conn_01x02_Pin	BarrelJack_Horizontal	J10
4	Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Vertical	J11, J13, J15, J17
4	Conn_01x02_Pin	TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal	J12, J14, J16, J18
1	Conn_01x04_Socket	JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical	J19
1	Conn_01x03_Pin	PinHeader_1x03_P2.54mm_Vertical	J20
1	SW_Push	SW_SPST_TS-1088-xR020	SW1
11	LED	LED_0805_2012Metric	D1, D2, D3, D4, D5, D6, D7, D8 +3
4	D	D_SOD-323	D13, D14, D15, D16
9	Buzzer_coil_3pin	Buzzer_coil_3pin	L1, L2, L3, L4, L5, L6, L7, L8 +1
9	6.8N 100n	C_0805_2012Metric	C1, C2, C3, C4, C5, C6, C7, C8 +1
1	10U 10u	C_1206_3216Metric	C10
11	330	R_0805_2012Metric	R1, R2, R3, R4, R5, R6, R7, R8 +3
9	100K 51k	R_0805_2012Metric	R10, R11, R12, R13, R14, R15, R16, R17 +1
4	100K 100k	R_0805_2012Metric	R21, R22, R23, R24
1	10K 10k	R_0805_2012Metric	R26

AeroBoard design files

The KiCad project lives in the MehrResearch/AeroBoard repository on GitHub; these links point at the commit this page was built from.

AeroBoard: common questions

What microcontroller does the AeroBoard use?

The AeroBoard is built around the Pico, from the RP2040/RP2350 family.

How big is the AeroBoard PCB?

The AeroBoard measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AeroBoard?

94 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AeroBoard design files?

From the MehrResearch/AeroBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AeroBoard design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which MehrResearch chose for the repository.

Can I test firmware for the AeroBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
