Kombo nrf24 stm32f030

MelexinVN·bs_kombo·hardware/pcb/kombo_nrf24_smd_stm32f030/kombo_nrf24_stm32f030.kicad_pcb

Kombo nrf24 stm32f030 PCB layout, top view — open source STM32 board by MelexinVN
Simulate this board

About the Kombo nrf24 stm32f030 PCB

Kombo nrf24 stm32f030 is an open source STM32 PCB design by MelexinVN, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 30.5 × 30.5 mm, with 21 components from 14 distinct parts.

Its main chip is the STM32F030F4PX, from the STM32 family. Other key parts include the NRF24L01_BREAKOUT and AMS1117-3.3. By type, the board carries 7 capacitors, 5 resistors, 4 connectors, 3 ICs, 1 crystal and 1 jumper.

It belongs with the iot & wireless designs in this gallery.

From the project

Открытые системы беспроводной коммуникации «КомБО» (Беспроводные системы «КомБО»). Проект с открытым программным и аппаратным обеспечением (Open source hardware). Open wireless communication systems "КомБО". Open source hardware project

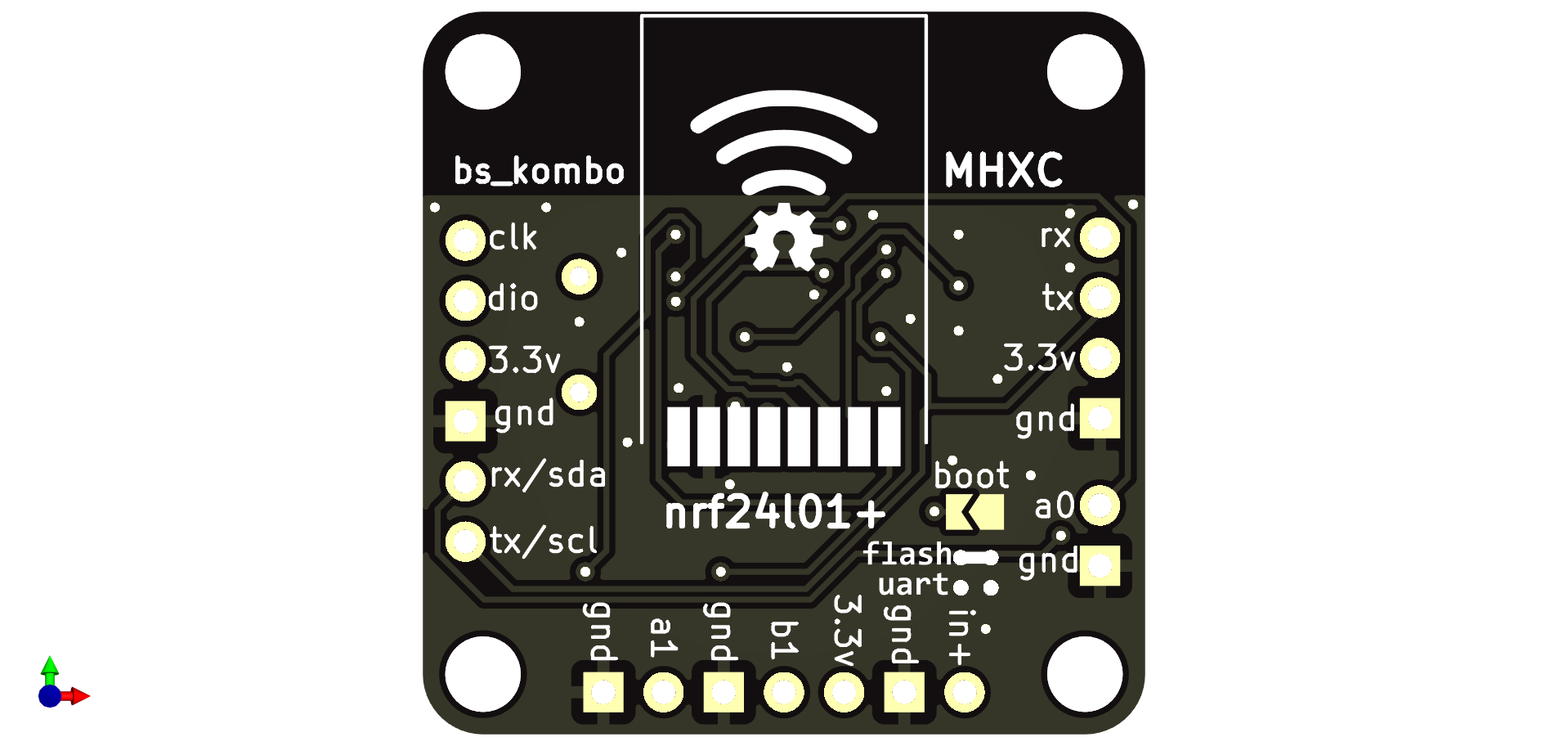

Kombo nrf24 stm32f030, from the project README
From the project README

Main components on the Kombo nrf24 stm32f030

NRF24L01_BREAKOUTAMS1117-3.3STM32F030F4PX

Kombo nrf24 stm32f030 bill of materials (BOM)

21 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF24L01_BREAKOUT
NRF24L01_Breakout
U1
1
AMS1117-3.3
U2
1
STM32F030F4PX
STM32F030F4Px
U3
1
Crystal
Y1
1
CONN_01X07
Conn_01x07
J1
1
CONN_01X04
Conn_01x04
J2
1
CONN_01X06
Conn_01x06
J3
1
CONN_01X02
Conn_01x02
J4
1
SOLDERJUMPER_2_OPEN
SolderJumper_2_Open
JP1
2
22P
22p
C1, C4
3
100N
100n
C2, C5, C6
2
10U
10u
C3, C7
3
10K
10k
R1, R3, R5
2
620
R2, R4

Kombo nrf24 stm32f030 design files

The KiCad project lives in the MelexinVN/bs_kombo repository on GitHub; these links point at the commit this page was built from.

Kombo nrf24 stm32f030: common questions

What microcontroller does the Kombo nrf24 stm32f030 use?

The Kombo nrf24 stm32f030 is built around the STM32F030F4PX, from the STM32 family.

How big is the Kombo nrf24 stm32f030 PCB?

The Kombo nrf24 stm32f030 measures 30.5 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kombo nrf24 stm32f030?

21 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kombo nrf24 stm32f030 design files?

From the MelexinVN/bs_kombo repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kombo nrf24 stm32f030 design in my own project?

Yes, under the terms of its GPL-3.0 license, which MelexinVN chose for the repository.

Can I test firmware for the Kombo nrf24 stm32f030 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
